Digilock DCK1-ATV1 Product Manual

Keypad cam locks operate by entry of a 4-digit code. In shared use functionality, the user chooses any available locker, enters a self-
selected code, then rotates the knob/lever to the locked position. To unlock, the user enters the same self-selected code, then rotates
the knob/lever to the unlocked position. Once unlocked, the locker is available for a different user. Management staff operates the lock
with either the Programming Key unique to the lock system or any registered Manager Key.

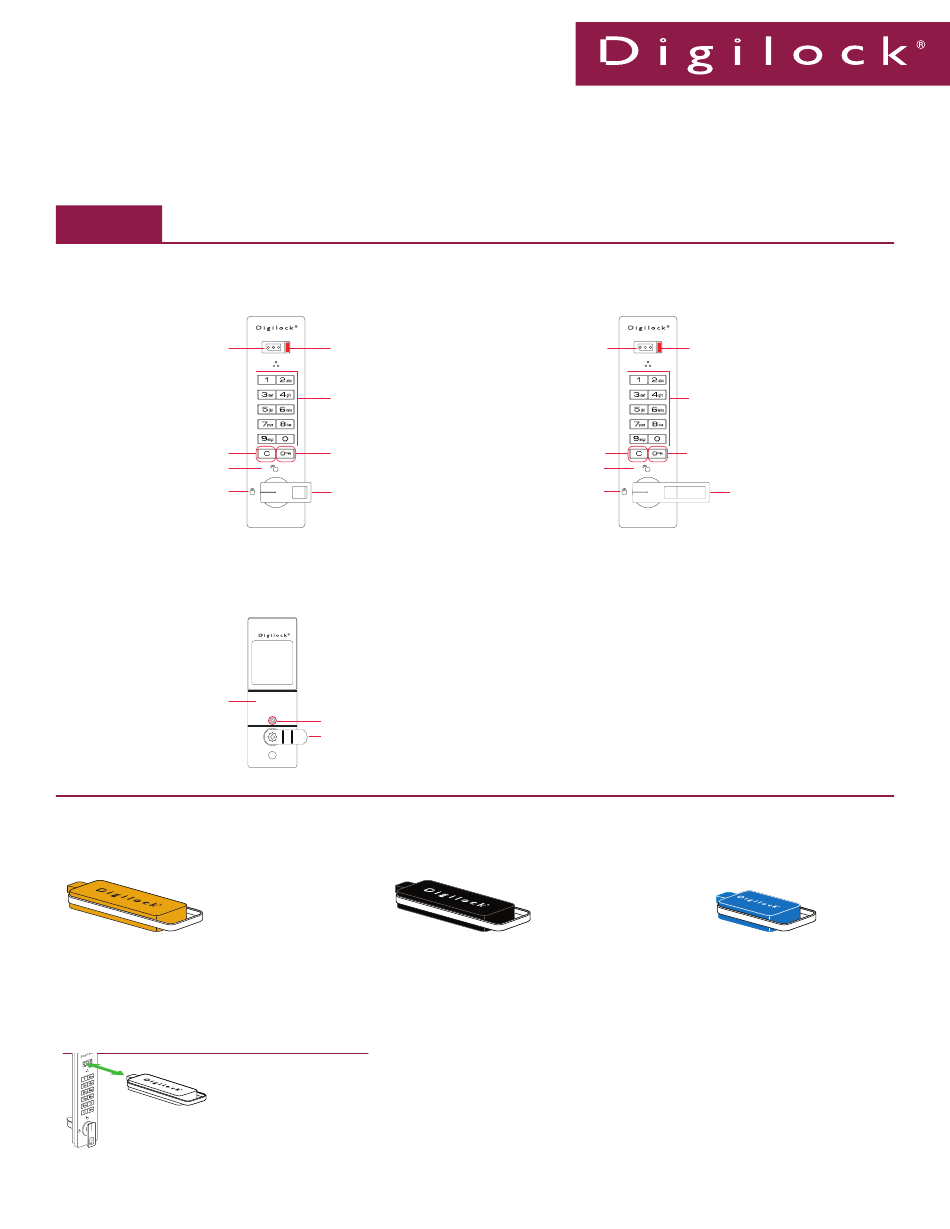

Lock Parts
Front Unit
Key Slot
C Button
Unlocked Position
Locked Position
DCK1-ATV1 with Knob
Rear Unit
Rear Cover
Keys
Programming Key
■
Registers Manager Keys
■
Provides lock access in case of forgotten/lost user
credential (code or key)
■
Allows management audit/inspection
■
Provides external power in case of battery failure
■ 1 Programming Key required per lock system
Key Insertion
Vertical Body
Digilock logo must face up on vertical body locks.
Product Guide
Keypad Cam Locks Advanced Security
LED Usage Indicator
Alpha Numeric Keypad
Key Symbol Button
Knob
Vertical Body
Rear Cover Screw
Cam
Manager Key
■
Provides lock access in case of forgotten/lost
user credential (code or key)
■
Allows management audit/inspection
■
Provides external power in case of battery failure
■ Up to 25 Manager Keys may be registered
per lock
Shared Use
DCK1-ATV1
Key Slot
C Button
Unlocked Position
Locked Position
Vertical Body
DCK1-ATV1 with Lever
LED Usage Indicator
Alpha Numeric Keypad
Key Symbol Button
Lever
User Key
■
Operates the lock instead of
User Code
■
ADA compliant*
*US Access Board requires 5% of all
locks to be ADA compliant.
