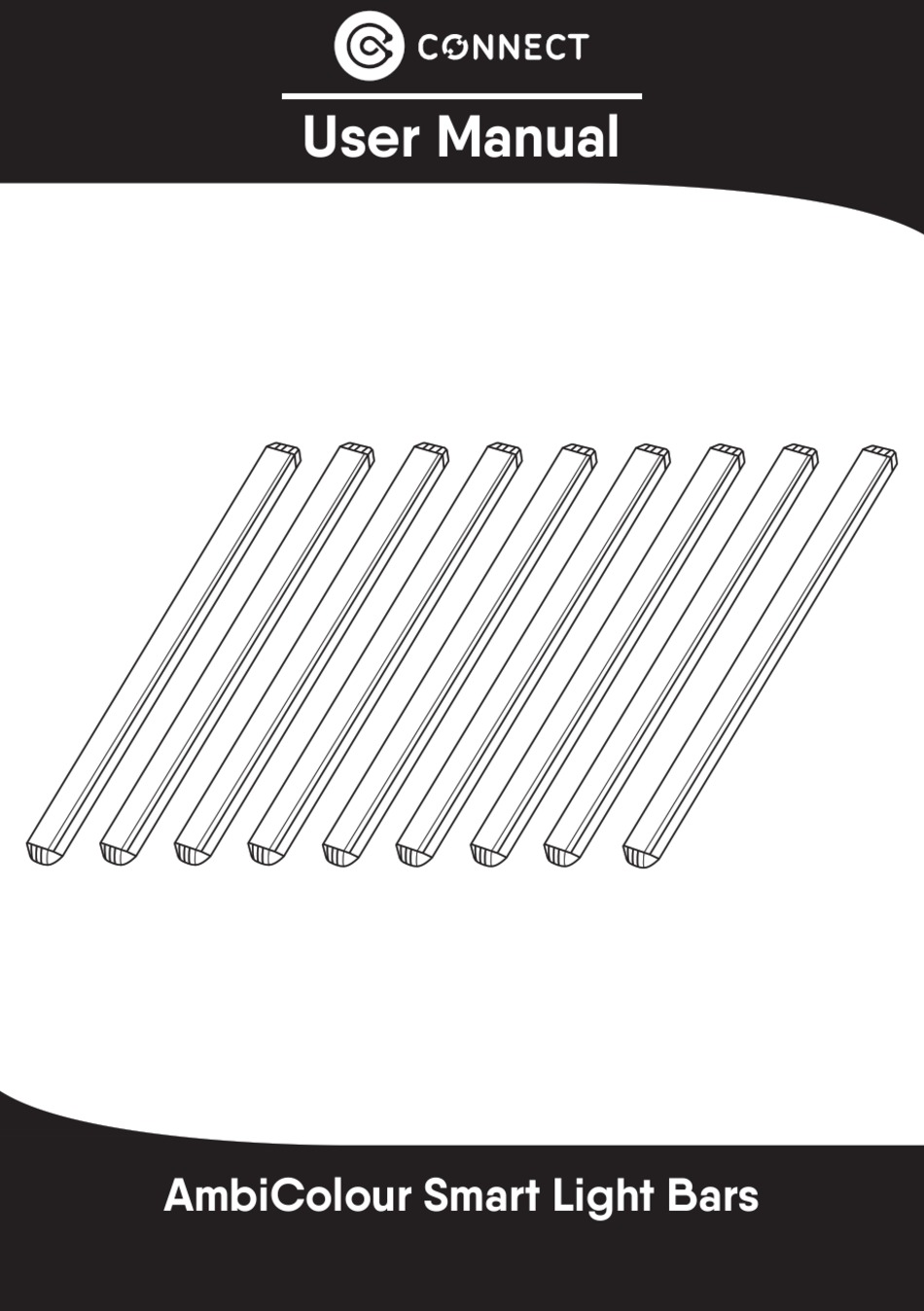

- Page 1 User Manual AmbiColour Smart Light Bars CSH-9BAR-262...
-
Page 2: What's In The Box
WHAT’S IN THE BOX • Smart bar light x 9 • Connector switch • Connector x 8 • Double-sided adhesive sticker x 9 • AC adaptor • User manual What you will need: • Smartphone or tablet with Bluetooth and connected to 2.4GHz band Wi-Fi network •... - Page 3 OVERVIEW Controller Switch 1. Switch to color 2. Switch to 3. Press it to turn down light white light the luminance of light 6. Power button: Press 4. Press it to turn 5. Press it to to turn on/off light, long up the luminance enter music press to enter...
-
Page 4: Installation
INSTALLATION ⚠ INDOOR USE ONLY • We recommend that you create your design in another location (like on a table,) before you bring it to the wall. 1. Stick adhesive tapes to the bottom of connectors by peeling off one side. - Page 5 INSTALLATION continued... 2. Create your design. Two splicing methods support: • Insert the light strip from the side. • Open the cover of the connector and insert the light strip from the front. 3. Create your design. ⚠ Make sure to attach on smooth, dry surfaces and not on uneven or wet surfaces...
- Page 6 INSTALLATION continued... 4. Connect the power adaptor to the connector switch. Then, plug in the power adaptor. 5. Press the Power button on the controller to turn on the lights.
- Page 7 CONNECT WITH THE APP 1. Get the app. 2. Register or login to app.
- Page 8 CONNECT WITH THE APP continued... 3. Recommended app settings. 4. Turn on Bluetooth and Wi-Fi on your smartphone. Make sure you are connected to a 2.4GHz Wi-Fi access point. Only 2.4G Wi-Fi networks are supported...
- Page 9 CONNECT WITH THE APP continued... 5. Connecting lights to app. If light not flashing, hold down power button until light blinks rapidly to enter pairing mode. AmbiColour Smart Light Bars AmbiColour Connect Smarthome Smart Light Bars AmbiColour Smart AmbiColour Smart...
- Page 10 CONNECT WITH THE APP continued... 6. Controlling lights with the app. AmbiColour Smart Light Bars AmbiColour Smart Light Bars...
- Page 11 CONNECT WITH THE APP continued... 7. Removing light strip from the app. AmbiColour Smart Light Bars AmbiColour Smart Light Bars SCROLL DOWN...
-
Page 12: Troubleshooting
TROUBLESHOOTING THE SMART LIGHT BARS DO NOT APPEAR ON THE APP: • If the controller’s light is not blinking rapidly, hold down the power button until the light flashes rapidly to reset it. • Enable Bluetooth and Wi-Fi are enabled on your smartphone. - Page 13 TROUBLESHOOTING continued... • If both 2.4GHz and 5GHz bands are using the same SSID, find the settings that allow you to separate the 2.4GHz and 5GHz bands. Usually, there will be an option to configure each band individually. Change the SSID for one or both bands to make them distinct.
-
Page 14: Warnings And Cautions
WARNINGS AND CAUTIONS 1. For indoor use only. 2. This panel is best used on smooth, dry surfaces and should not be applied to uneven or wet surfaces. 3. Ensure the surface is completely dry before applying the light panel. 4. -
Page 15: Specifications
SPECIFICATIONS Dimensions - 1x 270x16x10 mm bar light (LxWxH) input: AC 100-240V Power adaptor 50/60Hz output: 12V 2A (max.) Wi-Fi Standard 802.11 b/g/n Wi-Fi Frequency: 2.4GHz Wi-Fi Standard 802.11 b/g/n Bluetooth... - Page 16 Visit our website www.connectsmarthome.com.au Check us out at...
