BlueParrott B450-XT MS - for use with Microsoft Teams Walkie Talkie Manual

SAFETY INFORMATION

IMPORTANT SAFETY NOTE: Prolonged exposure to high volume levels can damage your hearing. To avoid injury, set the volume to the lowest comfortable level. If you experience ringing in your ears, or voices sound muffled, stop using the headset. Avoid turning up the volume to block noisy surroundings. It's possible for your ears to adapt to volume that is too high, and this could result in permanent hearing damage without any noticeable discomfort.

• Check with local and state laws regarding cell phone/headset usage while operating a motor vehicle.
• The headset is IP54 rated. Do not immerse any part of this product in water.
• Plastic bags and small parts may cause choking if ingested. Keep them away from small children and pets.
• Use only the power cords included with this product.
• Avoid temperatures exceeding 60°C (140°F) (may cause equipment failure).

PACKAGE CONTENTS

Images are not shown to scale.

1. B450-XT MS Headset with Leatherette Ear Cushion
2. Spare Foam Ear Cushion
3. Spare Microphone Windscreen
4. USB-C Charging Cable
5. Auto (DC) Adapter
6. Quick-Start Guide*
7. Warranty and Compliance Document*

*Not pictured.

GLOSSARY OF TERMS

On: Headset is on, but there is no connection to the phone (red light will flash).
MFB: Abbreviation for "Multifunction Button".
Multipoint Mode: Multipoint Mode allows you to connect and switch between two Bluetooth devices.
Paired: Two Bluetooth devices agree to communicate with one another.
Standby Mode: Headset is on, Bluetooth link is active, and the user is not on a call (blue light will flash).
Talk Mode: Headset is in use with the cell phone while the cell phone is on an active call (blue light will flash).
A2DP: Advanced Audio Distribution Profile is a Bluetooth protocol for streaming audio other than call audio, e.g. music or GPS directions.

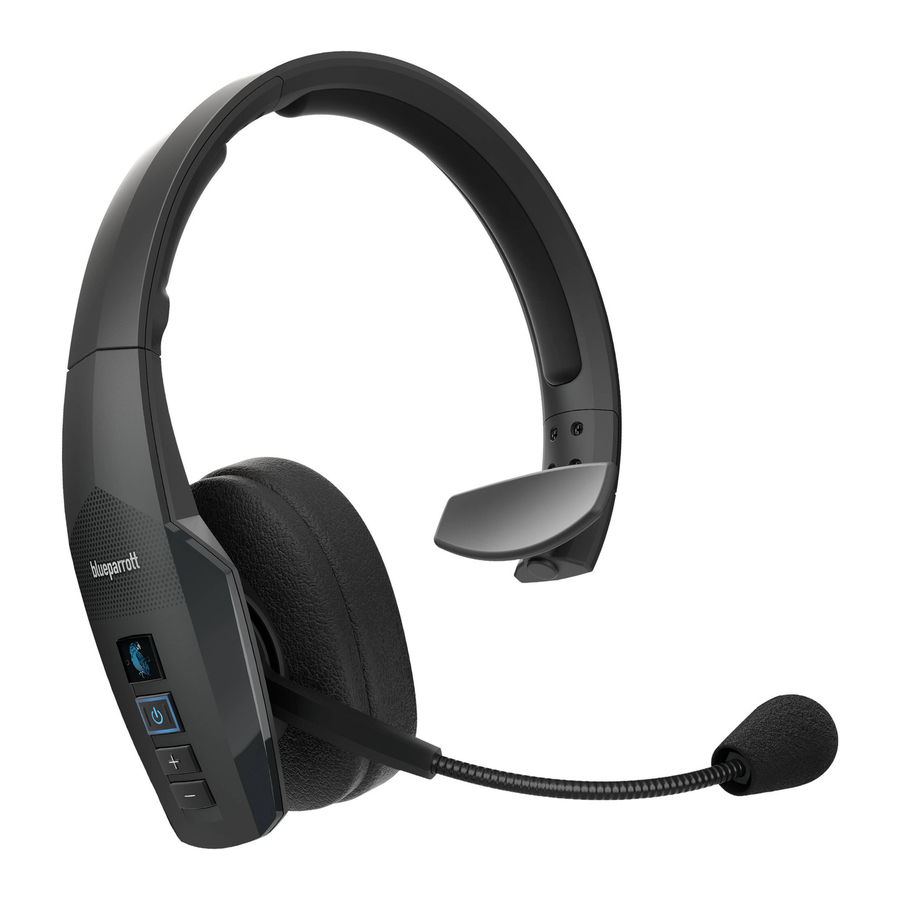

HEADSET OVERVIEW

1. Flexible Microphone Boom
2. Volume Down
3. Volume Up/Mute
4. Indicator Lights
5. Multifunction Button (MFB)
6. BlueParrott Button™

CHARGING THE HEADSET

Connect the USB-C charging cable into the headset's USB-C charging port. If the headset is not fully charged, the indicator will turn red. When the indicator turns blue and stays blue, the unit is fully charged.
A fully discharged battery will need approximately 3 hours to achieve a complete charge.

Battery Power Indicators

While charging, the MFB's indicator light shows the level of battery power on your B450-XT MS as follows:

Blue light: Fully charged. Over 24 hours' talk time.
Red light: Less than a full charge.

Operation While Using the Charger/Adapter

The B450-XT MS headset will operate from battery power or from power supplied via the USB-C cable.
NOTE: Do not attach the USB-C cable to a powered USB-C port mid-call. This will cause the headset to reset, and the call will be sent back to the phone.
When the headset is operating from the battery, all indicator lights and sounds will function as described in this guide.
When the headset is operating from power supplied via the USB-C cable, the headset — including the audio indicators — will function as described in this user guide. However, the MFB lights will indicate the battery charge status.
While the headset is on the charger, press the MFB long enough to power the unit on. The headset should reconnect automatically unless your phone is set to "always ask" for connection requests.
After the battery is fully charged, the MFB charge light will turn blue and stay blue as long as a powered USB-C cable is connected to the headset. While the headset is fully charged and the charge light is blue, the blue indicator light will also be on if the headset is powered on.

GETTING STARTED

On/Off/Standby

Turn Headset On: Hold down the MFB for approximately 2-3 seconds until you hear a voice prompt, "power on". The red light will flash once every second.
Turn Headset Off (conserves battery power): Hold down the MFB for approximately 4–5 seconds until you hear a voice prompt "power off". A red light will flash 4 times and the headset will turn off.
Standby Mode: Once the headset is turned on (after the initial pairing), it will attempt to connect to the last device that it was paired with, putting itself into Standby Mode.

Pairing with a Phone

When you turn your B450-XT MS on for the first time, or if its Paired Device List has been cleared, it will go into pairing mode automatically. You can pair the headset using NFC or manually.

NFC (One-Touch) Pairing

1. Make sure that NFC is enabled on your cell phone.
2. Place the NFC zone of your cell phone against the NFC zone of the headset and hold them together until your cell phone registers the headset.
3. Follow the prompts on your cell phone to complete pairing.


Note: NFC and One-Touch Pairing are dependent on your cell phone. The size and sensitivity of your phone's NFC zone and the specific way to connect the headset may vary between devices.

Manual Pairing

If the B450-XT MS has already been paired with another device and you are not going to use NFC Pairing, you will need to put it into Pairing Mode manually:
Placing Headset into Pairing Mode
By Voice:
Activate headset voice recognition by pressing and holding the Volume Up button. Then, after the prompt, say "pair mode". The headset will enter pairing mode and be visible for pairing to devices for 120 seconds.
Using Buttons:
With the headset powered off, press and hold the MFB until you hear "Power on". Keep holding the MFB for approximately 6 seconds until the LED flashes alternating blue and red, or you hear "Pair mode". The headset will be visible for pairing to devices for 120 seconds.

Pairing to a Cell Phone

1. Make sure that other Bluetooth devices are turned off or out of range.
2. Place the headset into pairing mode.
3. Put your cell phone in Bluetooth Search/Scan Mode per the manufacturer's instructions.
4. Select "BlueParrott B450-XT MS" to pair. (Passcode is "0000" if needed.)
5. Accept the phone book access request to enable caller ID in the headset.
6. When connected, the headset will give you the voice prompt, "Your headset is connected."

HOW TO WEAR AND ADJUST THE B450-XT MS

Adjusting the headband length
For a more comfortable and secure fit, the headband length can be adjusted as illustrated below:

Adjusting the headband tension
If the headband feels too tight or too loose, it is possible to adjust the tension of the headband for a more comfortable fit.
To adjust the tension of the headband, grip and flex it ONLY as shown in the diagrams below. Flex inward to increase tension. Flex outward to reduce the tension.
Use mild to moderate force when flexing the headband. Repeat the process until desired tension comfort level is attained.

Positioning the microphone
To get the best performance from our noise-canceling technology, position the microphone near the corner of your mouth. Positioning is important; small adjustments in microphone placement can improve performance.

1. Place the headset on your head.
2. Position the speaker directly on your ear. You can slide the headband in or out of the side support to find the best fit for stability and comfort.
3. Position the microphone about one finger's width away from your face at the corner of your mouth. The boom will rotate so you can position the microphone correctly with the speaker on either ear.


Switching microphone boom between left and right ear
The microphone boom can be adjusted for use on the right or left ear by sweeping it from one side to the other on the top side just underneath the headband. Do not try and push the microphone boom arm from one side to the other at the bottom of the headset.

Making/Taking Calls

The headset must be on and connected with your phone.
Making a Call

1. Dial the desired number on your phone. You will hear the call in the headset.
2. To end the call, press the MFB once. The call will end and the headset will enter standby mode.

Answering a Call By Voice:

1. When you receive a call, you will hear ringtones in the headset, or the caller ID. Say "answer" to answer the call.
2. To end the call, press the MFB once. The call will end and the headset will enter standby mode.

Using Buttons:

1. When you receive a call, you will either hear ringtones in the headset, or the caller ID. Press the MFB once to answer the call.
2. To end the call, press the MFB once. The call will end and the headset will enter standby mode.

Rejecting a Call
By Voice:

1. To reject an incoming call, say "ignore". You will hear two descending tones and the call will be transferred to your voicemail (if available).

Using Buttons:

1. To reject an incoming call, press and hold the MFB for two seconds. You will hear two descending tones and the call will be transferred to your voicemail (if available).

VOICE COMMANDS

The B450-XT MS will recognize English voice commands, enabling you to handle incoming calls without touching the headset. You can say "answer" to answer an incoming call, or "ignore" to reject it.
When not on a call, press and hold the Volume Up button to activate voice commands.
For a list of available commands, say "What can I say?"

Voice Commands Available

Answer – Answers an incoming call
Ignore – Rejects the incoming call and sends it to voicemail (if available)
What can I say? – Provides a list of available commands
Pair mode – Puts the headset into pairing mode
Am I connected? – Verifies that the headset is connected to a device
Check battery – Checks battery levels in the headset and paired device (if applicable)
Redial – Redials the last outgoing call
Callback – Calls the last incoming call (if number available)
Cancel – Cancels voice command

BLUEPARROTT BUTTON

By default, the BlueParrott Button works as a Push-To-Talk button for use with the Walkie Talkie functionality in Microsoft Teams.
Walkie Talkie can be accessed by pressing the "More" button in Microsoft Teams on your mobile device and selecting "Walkie Talkie". Here you can connect to different channels. After connecting B450-XT MS to your mobile device, you will be able to use this headset as your primary audio device in the Microsoft Teams app.
To send a voice message in Microsoft Teams Walkie Talkie, just hold the headset's BlueParrott Button and talk. Receive voice messages hands-free while you work.

Go to www.blueparrott.com/software for updates and more information.

ADVANCED FEATURES AND FUNCTIONS

Multiple Device Pairing and Multipoint Mode

The B450-XT MS has pairing memory for up to eight (8) devices. The headset is capable of multipoint, but by default is set up to allow connection to a single Bluetooth device only. Multipoint Mode can be enabled with the BlueParrott updater, available on blueparrott.com.
Using the B450-XT MS in Multipoint Mode

1. To use the headset in Multipoint Mode, first make sure the headset is paired with both your devices.
2. With both devices in range and with their Bluetooth enabled, turn the headset on.
3. As each Bluetooth device connects to the headset, you will hear the voice prompt, "Your headset is connected".

The B450-XT MS will monitor both phones and enable you to answer a call on either one using the headset.
If you are on a call and the other device receives a call, you will hear a notification in the headset.

Proximity Pairing

Proximity Pairing is an alternative method of pairing where the headset initiates the pairing process instead of your phone.

1. Make sure the headset is powered on and not connected to another device.
2. Set your phone so it is "discoverable," or visible to other devices.
3. Quickly press the MFB and the Volume Down button, if headset is not already in pair mode.
4. You should hear the voice prompt "pair mode" in the headset.
5. The headset lights should now be alternating red and blue.
6. The headset initiates pairing activity, and the incoming pairing request must be accepted on the phone. NOTE: This may include entering the pin number "0000" (four zeros).

Additional Features and Functions

Last Number Redial

By Voice:
You can use voice commands to dial both the last outgoing and last incoming call.

• To redial the last outgoing call, activate voice command and say "redial".
• To call back the last incoming call, activate voice command and say "callback".

Using Buttons:
To redial the last outgoing call that was dialed from the cell phone, press and hold the Volume Down button for approximately 1 second. A beep will be heard and the phone will redial the last number.

Call Waiting/Rejecting a Call

If you are on an active call and a second call comes in, you will hear a low tone notification in the headset. Where supported by your phone, you can either accept the incoming call and end the active call, accept the incoming call and place the active call on hold, or reject the incoming call and continue the active call.

• To accept the incoming call and end the active call, press the MFB once.
• To accept the incoming call and place the active call on hold, quickly press the MFB twice.
• To reject the incoming call, press and hold the MFB for 1-2 seconds.

Rejecting a Call

By Voice:
To reject an incoming call by voice when not on another call, say "ignore".
Using Buttons:
To reject an incoming call manually, press and hold the MFB for 1-2 seconds.

Phone Voice Control (e.g. Siri, Google Now)

Press the MFB once while the headset is in standby mode to initiate voice command functions on your phone. Support for this is phone dependent. See your phone's user guide for more information.

Muting

The Volume Up button controls the mute function.

• To use Volume Up to mute the headset microphone while on a call, press and hold the Volume Up button for 1-2 seconds. To unmute, press and hold the button again for 1-2 seconds.
• While muted, a reminder tone will sound every 10 seconds.

Mute Incoming Audio
To mute incoming audio, press and hold the Volume Down button for 2 seconds. While incoming audio is muted, the headset will play a reminder tone every 45 seconds. This reminder tone can be disabled by pressing any button on the headset.

Turning Headset Indicator Lights On/Off

A quick press and release of the Volume Up and Volume Down buttons together will turn the headset indicator lights off. Repeat to turn the indicator lights on. When powering on the headset, the indicator lights will revert to being on.

Reset Headset Paired Devices List

This will reset or clear the headset's internal paired devices list. The headset must be on to perform this function.

1. Power on the headset. It does not matter if it connects to any devices.
2. Hold the headset near your ear and press and hold the Volume Up and the Volume Down buttons together for approximately 6-10 seconds until two low tones and/or the "Pair Mode" voice indicator is heard.
3. The pairing memory is now clear, and the headset will need to be paired to any desired devices before it can be used with them.

FUNCTIONS & INDICATORS TABLES

Standby Mode Functions

In-Call Functions

*Sends call to voicemail (if available)

Notifications
