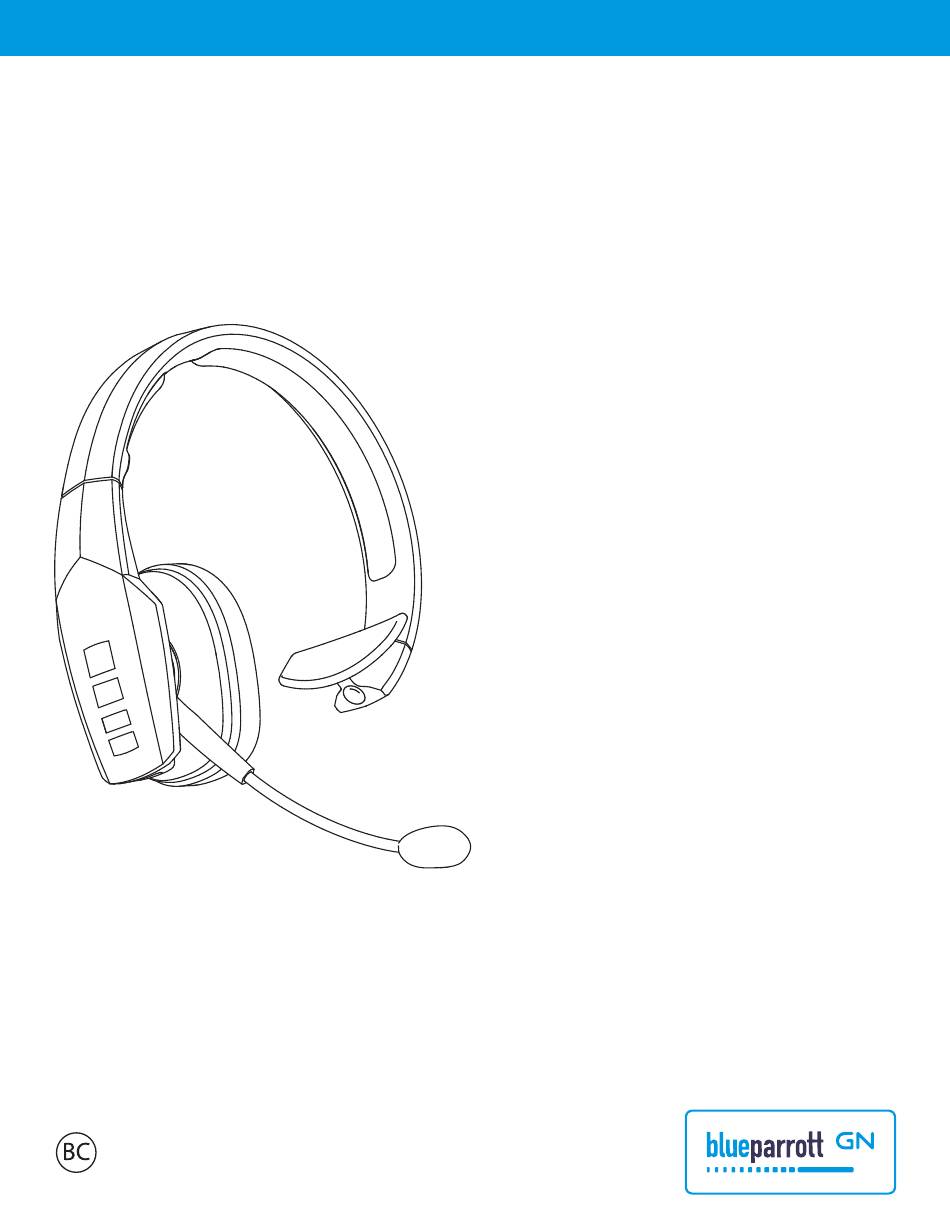

- Page 1 BlueParrott B450-XT User Manual BPB-45020...
-
Page 2: Table Of Contents
• On/Off/Standby • Pairing with a Phone – NFC Pairing – Regular Pairing • How to wear and Adjust the B450-XT – Adjusting the headband length – Adjusting the headband tension – Positioning the microphone – Switching microphone boom between left anf right ear •... -
Page 3: Safety Information
• Use only the power cords included with this product . • Avoid temperatures exceeding 60° C (140° F) (may cause equipment failure) . PACKAGE CONTENTS A. B450-XT Headset with Leatherette Ear Cushion B. Spare Foam Ear Cushion C. Spare Microphone Windscreen D. -
Page 4: Glossary Of Terms
Talk Mode: Headset is in use with the cell phone while the cell phone is on an active call (blue light will flash) . A2DP: Advanced Audio Distribution Profile is a Bluetooth protocol for streaming audio other than call audio, e . g . music or GPS directions . BlueParrott B450-XT User Manual PAGE 4... -
Page 5: Headset Overview
HEADSET OVERVIEW A. Flexible Microphone Boom B. Volume Down C. Volume Up/Mute D. Indicator Lights E. Multifunction Button (MFB) F. Parrott Button BlueParrott B450-XT User Manual PAGE 5... -
Page 6: Charging The Headset
Headset Charging Port Battery Power Indicators While charging, the MFB’s indicator light shows the level of battery power on your B450-XT as follows: Blue light: Fully charged . Over 24 hours’ talk time . Red light: Less than a full charge . -
Page 7: Operation While Using The Charger/Adapter
CHARGING THE HEADSET (continued) Operation While Using the Charger/Adapter The B450-XT headset will operate from battery power or from power supplied via the USB-C cable . NOTE: Do not attach the USB-C cable to a powered USB-C port mid-call. This will cause the headset to reset, and the call will be sent back to the phone. -
Page 8: Getting Started
Standby Mode . Pairing with a Phone When you turn your B450-XT on for the first time, or if its Paired Device List has been cleared, it will go into pairing mode automatically . You can pair the headset using NFC or manually . - Page 9 GETTING STARTED (continued) Manual Pairing If the B450-XT has already been paired with another device and you are not going to use NFC Pairing, you will need to put it into Pairing Mode manually: Placing Headset into Pairing Mode By Voice: Activate headset voice recognition by pressing the Parrott Button or by pressing and holding the Volume Up button .
-
Page 10: How To Wear And Adjust The B450-Xt
HOW TO WEAR AND ADJUST THE B450-XT Adjusting the headband length For a more comfortable and secure fit, the headband length can be adjusted as illustrated below: BlueParrott B450-XT User Manual PAGE 10... -
Page 11: Adjusting The Headband Tension
HOW TO WEAR AND ADJUST THE B450-XT (continued) Adjusting the headband tension If the headband feels too tight or too loose, it is possible to adjust the tension of the headband for a more comfortable fit . To adjust the tension of the headband, grip and flex it ONLY as shown in the diagrams below . -
Page 12: Positioning The Microphone
HOW TO WEAR AND ADJUST THE B450-XT (continued) Positioning the microphone To get the best performance from our noise-canceling technology, position the microphone near the corner of your mouth . Positioning is important; small adjustments in microphone placement can improve performance . -
Page 13: Switching Microphone Boom Between Left Anf Right Ear
HOW TO WEAR AND ADJUST THE B450-XT (continued) Switching microphone boom between left and right ear The microphone boom can be adjusted for use on the right or left ear by sweeping it from one side to the other on the top side just underneath the headband . Do not try and push the microphone boom arm from one side to the other at the bottom of the headset . -
Page 14: Making/Taking Calls
1 . To reject an incoming call, press and hold the MFB for two seconds . You will hear two descending tones and the call will be transferred to your voicemail (if available) . BlueParrott B450-XT User Manual PAGE 14... -
Page 15: Voice Commands
VOICE COMMANDS The B450-XT will recognize English voice commands, enabling you to handle incoming calls without touching the headset . You can say “answer” to answer an incoming call, or “ignore” to reject it . When not on a call, press the Parrott Button (if not reconfigured to do something else), or press and hold the Volume Up button to activate voice commands . -
Page 16: Parrott Button
Volume Up button . To change the Parrott Button functions, you will need to download an app for your phone (Android or iOS) or PC . Go to www.blueparrott.com/parrott for updates and more information . BlueParrott B450-XT User Manual PAGE 16... -
Page 17: Advanced Features And Functions
ADVANCED FEATURES AND FUNCTIONS Multiple Device Pairing and Multipoint Mode The B450-XT has pairing memory for up to eight (8) devices . The headset is enabled with Multipoint Mode, which means that it can be connected to and toggle between two Bluetooth devices . -
Page 18: Additional Features And Functions
• Unless otherwise configured, quickly pressing the Parrott Button while on a call will mute the headset . Press again to unmute . • To use Volume Up to mute the headset microphone while on a call, press and hold BlueParrott B450-XT User Manual PAGE 18... -
Page 19: Transferring Audio
3 . The headset Parrott Button is reset and the pairing memory is now clear . The headset will re-enter pairing mode . If you are not ready to re-pair to your device, power off the headset . BlueParrott B450-XT User Manual PAGE 19... -
Page 20: Over-The-Air Updates
Over-the-air updates are only available for Android devices . 1 . The BlueParrott app will notify you when a firmware update is available . 2 . Ensure the headset and the Android phone have a minimum 50% charge and are connected to one another before beginning the update . -
Page 21: Functions & Indicators Tables
MFB & Volume Down Alternating red and Long low “Pair Mode” Pairing (quick press) blue flash tone every 5 seconds for 60 seconds Proximity Pairing NONE NONE 2 short tones NONE Timeout (after 60 seconds) BlueParrott B450-XT User Manual PAGE 21... - Page 22 NONE 2 falling tones NONE Call (not all devices seconds) allow this function) Toggle Between Active MFB (2 quick NONE 1 short tone NONE and Held Calls presses) *Sends call to voicemail (if available) BlueParrott B450-XT User Manual PAGE 22...
- Page 23 Red light, 2 Double tone “ Battery low” fast flashes every 60 sec- onds Connect A2DP NONE Blue MFB NONE NONE (quick, dou- ble-flash) Proximity Pairing NONE NONE 2 short tones NONE Timeout (after 60 seconds) BlueParrott B450-XT User Manual PAGE 23...
- Page 24 © 2020 GN Audio A/S . All rights reserved . APN204274A 04/19...
Need help?
Do you have a question about the B450-XT and is the answer not in the manual?
Questions and answers
everyone I talk to seems to say I **** in a tunnel and or cant hear me - I have the 450
People may say you sound like you're in a tunnel when using the BlueParrott B450-XT due to incorrect microphone positioning. The manual states that small adjustments in microphone placement can improve performance. Ensure the microphone is positioned about one finger’s width away from your face at the corner of your mouth for optimal sound quality.
This answer is automatically generated
