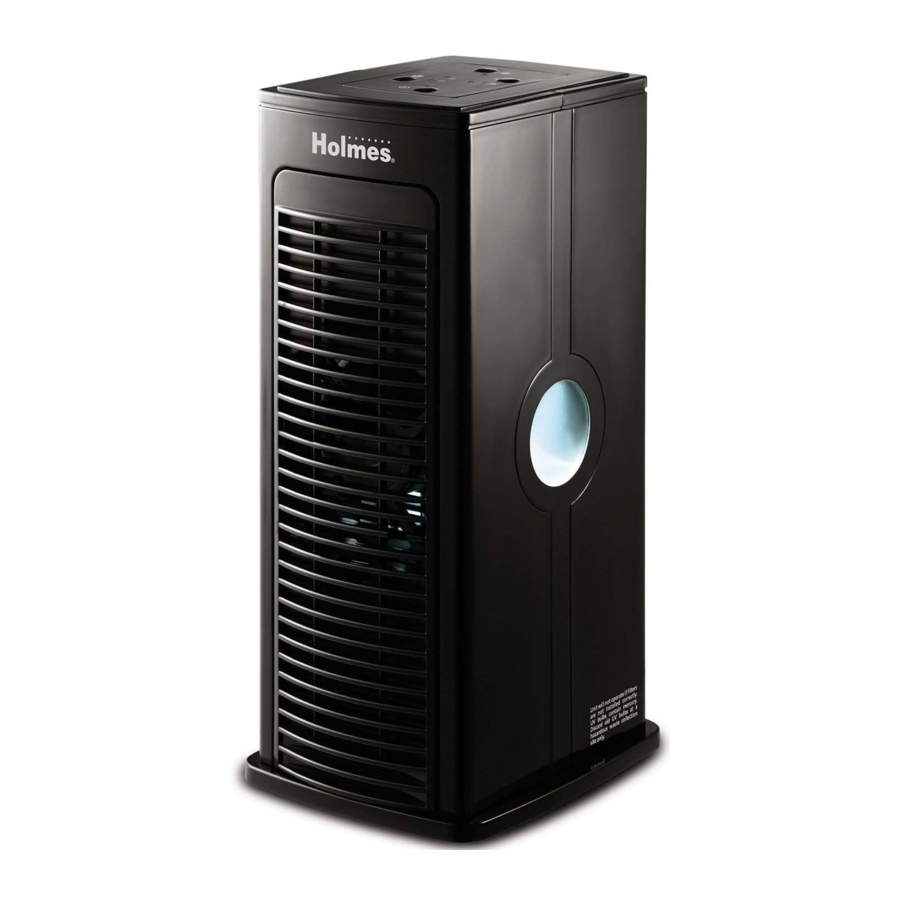

Holmes HAP3000UV - HEPA-Type Permanent Filter Manual

BEFORE USE

1. Carefully unpack your air purifier.
2. Select a firm, level surface with no obstructions to the air inlets or outlets.
3. Both HEPA and carbon filters are covered by a plastic bag to protect their freshness. Before using your purifier,
   REMOVE THESE PROTECTIVE PLASTIC BAGS FROM FILTERS:

• Open the back grill of the air purifier by gently pulling it towards you. Gently lift the back grill to remove. (see Figure 3).

• After removing the plastic bags, reassemble the filters to unit.
• Carbon filter should follow the PCO filter, then the HEPA filter, then the pre-filter.
• Reinstall the back grill. (see Figure 5).


4. Connect the power adaptor to the power jack (under rear grill) on the air purifier, and plug the power adaptor into a 120V AC outlet.

GET TO KNOW YOUR DEVICE

YOUR HOLMES AIR PURIFIER FEATURES:

1. Ionizer button
2. UV button
3. Fan speed button
4. Power button
5. Control panel
6. Ionizer
7. Photocatalyst filter
8. Carbon filter
9. HEPA-type permanent fi lter
10. Air inlet grill
11. Pre-filter
12. Power jack for adaptor M.UV bulb
13. Ambient Light

ULTRAVIOLET LIGHT
This air purifier uses a UV-C bulb.

HEPA-TYPE PERMANENT FILTER
HEPA-type permanent filter removes up to 99% of airborne allergens as small as 2 microns, including ragweed pollen, grass pollen, tree pollen, household dust, dust mite debris, mold spores, pet dander and smoke from the air passing through it. Permanent filter can be vacuumed every few weeks for optimal performance.

HIGH AND LOW SPEED SETTINGS
For optimum air filtration, operate your Holmes air purifier continuously on the HIGH (Hi) setting. For quieter operation (such as in a bedroom), select the LOW (Lo) setting.

OPTIONAL IONIZER
This appliance has an ionizer, which releases negative ions into outgoing filtered air to help the air purification process.

What Are Ions?
Ions are tiny particles that carry a positive or negative charge. They exist naturally around us: in the air, water, and ground. Both positive and negative ions are colorless, odorless, and completely harmless to humans.

How Does The Ionizer Work?
Negative ions help air purification by attaching themselves to very small airborne particles in the room. These particles take on a negative charge and may join with positively charged particles such as dust, pollen, smoke, and pet dander to form larger particles. These larger particles are then more easily captured by the filter system.

Important Notes:

• Your ionizer may produce an occasional popping or cracking sound. This is normal and occurs when a small buildup of ions is discharged.
• After extended use, you may notice dust around the grills or front panel. This is caused by negative ions exiting the air outlet, evidence of the ionizer's air cleaning effectiveness. You can remove the dust with a soft brush or clean, damp cloth.
• Larger particles may be attracted to positively charged surfaces throughout the home, like walls or floors. This may occur more frequently when the filter is nearing the end of its useful product life and unable to capture as many charged particles.
• Excessive amounts of pet dander, dust, or smoke may decrease the life expectancy of the filter and interfere with the ionization process.

The ionizer in this appliance produces less ozone than the UL established limits of 50ppb. However, in high concentrations, ozone can be harmful to birds and small pets. To prevent ozone buildup, we suggest using the ionizer in well ventilated areas with the fan on.

Always clean the filter at the recommended intervals (See Cleaning and Maintenance). Using the ionizer with dirty filters may result in dirty particles exiting the air purifier and attracting to walls, carpets, furniture, or other household objects. These dirty particles may prove difficult to remove.

HOW YOUR DEVICE WORKS

5-Stage Air Purification System
Your air purifier uses a five-stage air purification system to help purify the air that passes through the filter:

STAGE 1 - The air first flows through the pre-filter and captures larger particles, thus extending the life of the HEPA filter.
STAGE 2 - HEPA-type permanent filter removes up to 99% of airborne allergens as small as 2 microns, including ragweed pollen, grass pollen, tree pollen, household dust, dust mite debris, mold spores, pet dander and smoke from the air passing through it.
STAGE 3 - Carbon filter absorbs and eliminates common household odors, such as garbage or nursery smells.
STAGE 4 -Photocatalyst filter combines UV rays with a Titanium Dioxide (TiO2) coated filter. This process creates hydroxyl radicals and super-oxide ions, which are highly reactive electrons aggressively combined with other elements in the air, such as VOCs (which include harmful pollutants, such as formaldehyde, ammonia, and many other common contaminates) released by building materials and household cleaners generally found in the home.
STAGE 5 - UV Bulb

OPERATING INSTRUCTIONS

• Remove all plastic bags from filters before use.
• DO NOT POINT FILTERED AIR OUTLET TOWARDS WALL.

To operate your air purifier:

1. Press power button ( ).
2. You can change the filtering speed by pressing the Fan speed button ( ) until you reach the desired speed: Hi-Lo.
3. To release negative ions into the filtered air, press the ionizer button ( ) to ON and the light will illuminate.

NOTE: The ionizer will not work unless the unit is running.

4. When the air purifier is on, UV is default running, Press UV button ( ) to switch UV ON or OFF.
5. To turn the air purifier off, press the Power button ( )

USING THE UV LAMP FUNCTION

To activate this function in any mode, press UV Button ( ). The UV indicator light ( ) will illuminate on control panel when this function is activated. To deactivate the feature, press the UV button ( ) one more time.

Note: This unit is equipped with a double safety interlock switch. Removing the rear grill and removing the HEPA filter will cancel the UV light function and turn off the unit.

CLEANING AND MAINTENANCE

Cleaning the unit:

1. Turn off and unplug the air purifier.
2. The outside of the unit can be cleaned with a soft, clean damp cloth.
3. The air inlet grill can be cleaned with a soft, clean damp cloth.
4. The filtered air outlet can be cleaned of dust with a small soft brush.
5. If you wish to clean the filter chamber of the air purifier, please only use a dry, soft cloth to wipe it down. DO NOT WASH Photocatalyst filter and Carbon filter. The Pre-filter (K) can be washed by using a mild dish soap and water. Rinse thoroughly.
6. NEVER use detergents, gasoline, glass cleaner, furniture polish, paint thinner or other household solvents to clean any part of the air purifier.

Do not allow moisture to come in contact with the main housing of the air purifier.

FILTER CLEANING/REPLACEMENT INSTRUCTIONS

Note: On average, your HEPA-type permanent filter needs to be cleaned every few weeks, it is designed to never need replacement. However, regular cleaning is important for optimal performance, and we also recommend replacement for a new HEPA-type permanent filter after frequent cleaning. Carbon filter needs to be replaced every 3-4 months. Filter life will vary depending on air quality and usage.

1. Turn off and unplug the air purifier before replacing the filters. Remove the rear grill.
2. Remove the filters from the unit by pulling them gently towards you.
3. To replace the carbon filter, simply remove the old carbon filter and insert a new carbon filter in its place after first removing the plastic bag. Use the plastic tabs on the back grill door as a guildeline. (see Figure 3).
4. To clean the HEPA-type permanent filter, remove the dirty filter. Using your vacuum cleaner, run the brush attachment along both sides of the filter and clean between the pleated layers. After cleaning, reinstall the cleaned HEPA-type permanent filter back into the unit.


Do not use water, household cleaners or detergents to clean the HEPA-type permanent filter. Should the HEPA-type permanent filter become damaged during cleaning, replacements are available by calling 1-800-546-5637.

5. Install the rear grill back onto the unit and securely latch it in place. (see Figure 5).

NOTE: All filters and rear grill must be properly installed to the unit. If either the grill or the filter is not properly installed, the unit will not operate.

UV BULB WARNINGS

• Ultraviolet-C light is emitted from the bulb when the unit is plugged in. DO NOT expose eyes or skin to direct light from ultraviolet light. Severe eye injury or irritation could result.
• UV bulb contains mercury. If the bulb breaks, DO NOT vacuum or handle with your bare hands. Carefully sweep debris into a plastic bag and dispose properly at your local hazardous waste collection site.
• DO NOT attempt under any circumstance to clean the bulb, bulb holder or cover with water or wet solutions. This could result in electrical shock.
• DO NOT attempt to remove UV bulb as risk of breakage and injury may occur.

TROUBLESHOOTING

TIPS AND TROUBLESHOOTING
Problem	Solution
Unit will not operate	Make sure the unit is connected with the power adaptor and the adaptor is plugged in and outlet is energized. Make sure unit is turned on. The unit has safety features in place to ensure the unit is ready for operation: Check to be sure the UV lamp and UV lamp holder are properly installed; Ensure that all filters are firmly in place; Confirm that the rear grill is latched firmly into place.
Decreased air flow	Make sure nothing is blocking air inlet and filtered air outlets. Remove all plastic bags from filters. Check condition of filters and clean/replace if necessary.
Excessive noise	Remove plastic bags from filters. Make sure all parts are firmly positioned in place.

REPLACEMENT PARTS

If filters become damaged, replacement parts can be purchased online at www.holmesproducts.com, or by calling 1-800-546-5637.

LEARNING MORE

For a wealth of information about your air purifier and other Holmes products, visit our website at www.holmesproducts.com or call 1-800-546-5637.

© 2012 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
