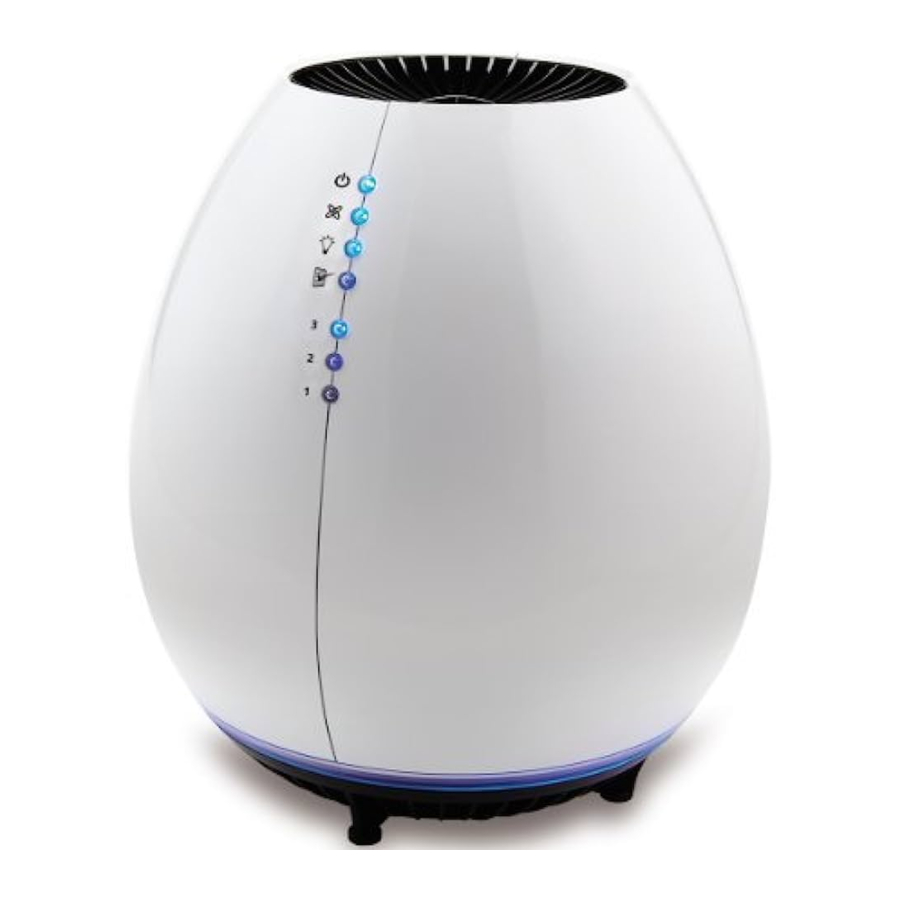

Holmes HAP600 - Air Purifier Manual

GET TO KNOW YOUR AIR PURIFIER

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

• Your Holmes^® air purifier features a permanent HEPAType filter that removes up to 99% of airborne dust and pollen as small as 2 microns, and helps reduce smoke, mold spores and pet dander from air passing through the filter.
• Permanent filter can be vacuumed every few months for easy cleaning.
• Optional ionizer naturally improves performance and helps freshen the air.

This product earned the ENERGY STAR by meeting strict energy efficient guidelines set by the US EPA. The energy efficiency of the ENERGY STAR qualified model is measured based on a ratio between the model's CADR for dust and the electrical energy it consumes, or CADR/Watt.

IONIZER

This appliance has an optional ionizer feature which, when turned on, releases negative ions into outgoing filtered air to help the air purification process.

What are Ions?

Ions are tiny particles that carry a positive or negative charge. They exist naturally around us: in the air, water, and ground. Both positive and negative ions are colorless, odorless, and harmless.

How Does The Ionizer Work?

Negative ions help air purification by attaching themselves to very small airborne particles in the room. These particles take on a negative charge and may join with positively charged particles such as dust, pollen, smoke, and pet dander to form larger particles. These larger particles are then more easily captured by the filter system.

Important Notes

Your ionizer may produce an occasional popping or cracking sound. This is normal and occurs when a small buildup of ions is discharged.
After extended use, you may notice dust around the grills or front panel. This is caused by negative ions exiting the air outlet, evidence of the ionizer's air cleaning effectiveness. You can remove the dust with a soft brush or clean, damp cloth.

Larger particles may be attracted to positively charged surfaces throughout the home, like walls or floors.

• This may occur more frequently when the filter is nearing the end of its useful product life and unable to capture as many charged particles.
• Excessive amounts of pet dander, dust, or smoke may decrease the life expectancy of the filter and interfere with the ionization process.

To help prevent particles from attracting to surfaces throughout your home:

• You may want to run the ionizer less often.
• Check the condition of the filter more frequently.

The ionizer in this appliance produces less ozone than the UL established limits of 50ppb. However, in high concentrations, ozone can be harmful to birds and small pets. To prevent ozone buildup, we suggest using the ionizer in well ventilated areas with the air purifier fan on.

HEPA-TYPE FILTER

The permanent filter allows for easy maintenance and eliminates the hassle of filter replacement. The HEPA-Type (High Efficiency Particulate Air) filter is designed to remove up to 99% of airborne pollutants, 2 microns or larger, from the air that passes through them. The pollutants may include (but not limited to) tobacco smoke, household dust, pet dander and pollen.

HIGH, MEDIUM AND LOW SPEED SETTINGS

For optimum air filtration, operate your Holmes^® air purifier continuously on the MEDIUM (2) setting. Its rugged motor has been designed to give many years of use. For quieter operation (such as in a bedroom), select the LOW (1) setting. When high levels of air pollution are present, select the HIGH (3) setting to quickly circulate and filter the room air.
The Night Light offers an optimal illumination for night time use. Press the Night Light button to activate and de-activate the night light.

FILTER CHECK INDICATOR

The filter indicator light eliminates guesswork by letting you know when it is time to clean the filter. To reset the Filter Check Indicator, press and hold the Filter Reset Button for 3 seconds while the unit is operating (in any speed).

BEFORE USE

1. Carefully unpack your Air Purifier. Select a firm level place where there are no obstructions to the air inlet or filtered air outlet.
2. Remove the base air inlet grill and check if the filter is covered by a plastic bag. If it is, remove plastic bag before use and place filter into unit. Reinstall the base air inlet grill.
3. DO NOT POSITION AIR PURIFIER DIRECTLY UNDER FURNITURE OR OBJECTS THAT MAY OBSTRUCT EXHAUST AIR FLOW.

NOTE: If operating unit on a carpeted floor, it is not recommended to use on carpets with more than a ½ inch pile height.

DEVICE OVERVIEW

Fig. 1

CONTROL PANEL (close-up)

1. Filtered Air Outlet
2. Air Purifier Housing
3. Night Light
4. Base Air Inlet Grill
5. Power Button/Light
6. Ionizer Button/Light
7. Night Light Button
8. Filter Reset Button/ Filter Check Indicator Light
9. Speed Control Buttons (3-2-1)/Lights
10. Permanent HEPA-type Filter (not shown)

OPERATING INSTRUCTIONS

1. Plug into a 120V AC electrical outlet.
2. Press the power button (). The air purifier will turn onto HIGH, the power light and the High (3) speed indicator light will illuminate letting you know the power is on and running at High setting. To turn the air purifier off at any time, press the power button and all indicator lights will go off.
3. You can then select the desired speed setting. This air purifier has three speed settings. You can select from HIGH (3), MEDIUM (2), or LOW (1) by pressing the desired operating speed control button on the control panel. The corresponding indicator light will illuminate to indicate which setting being selected.
4. To release negative ions into the filtered air, press the ionizer button ( ) and the indicator light will illuminate.
   NOTE: The ionizer will not work unless the unit is running.
5. To activate the Night Light at any speed setting, press the night light button () to illuminate. Press the button again, the night light will go off.

CLEANING/MAINTENANCE INSTRUCTIONS

1. Turn the air purifier off and unplug it before cleaning.
2. The outside of the air purifier can be cleaned with a soft, clean dampened cloth.
3. The base air inlet grill (reference Fig. 1) can be removed and washed in warm soapy water (not dishwasher safe). Dry before replacing in the unit.
4. The filtered air outlet can be cleaned of dust with a small, soft brush.
5. If you wish to clean the inside filter chamber, please only use a dry, soft cloth to wipe it down.

Do not allow moisture to come in contact with the main housing of the air purifier.

Do not use gasoline, benzine, thinner, harsh cleaners, etc., as they will damage the product. NEVER use ALCOHOL OR SOLVENTS.

FILTER CLEANING INSTRUCTIONS

• If the filter is enclosed in plastic bag, remove it before use.

NOTE: Every few weeks, check the condition of filter.

Filter life will vary, depending on air quality and usage. Under normal conditions of continuous use, the HEPA-type filter will operate efficiently for 3-4 months, but we recommend regular cleaning for optimal performance.
After approximately 4 months of operation, the Filter Check Indicator will will illuminate (yellow LED) to alert you to clean filter before further use.

To remove the filter for cleaning:

1. Turn off and unplug the air purifier.
2. To open and release the base air inlet grill from the base, locate the handle at the base grill and turn counter-clockwise until the Unlock icon () with aligned with the indicator mark below the power cord outlet on the rear side of the air purifier housing (see Fig. 2).

3. Take out the permanent HEPA-type filter from the unit, check the condition of the filter, and remove for cleaning if dirty.
4. Using your vacuum cleaner, run the brush attachment along both sides of the filter and clean between the pleated layers (see Fig 3).


Do not use water, household cleaners or detergents to clean the permanent filter.

To reinstall the permanent filter after cleaning:

1. Install the cleaned filter into the air purifier housing and replace the base air inlet grill. To install the base air inlet grill back onto air purifier housing, hold the handle at the base grill to turn clockwise until the Lock icon () is aligned with the indicator mark below the power cord outlet on the rear side of the air purifier housing. Ensure the base air grill inlet is locked securely in place (see Fig. 4).

2. To reset the Filter Check Indicator, press and hold the Filter Reset Button () for 3 seconds while the unit is operating (in any speed). The light will flash 3 times and then go off. The filter check timer is now reset.

NOTE: Should your filter become damaged or lost, new filters can be purchased at a retailer near you, online at www.holmesproducts.com, or by calling 1-800-546-5637.

TROUBLESHOOTING

LEARNING MORE

For a wealth of information about your air purifier and other Holmes^® products,
visit our website at www.holmesproducts.com or call 1-800-546-5637.
© 2011 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved.
Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
