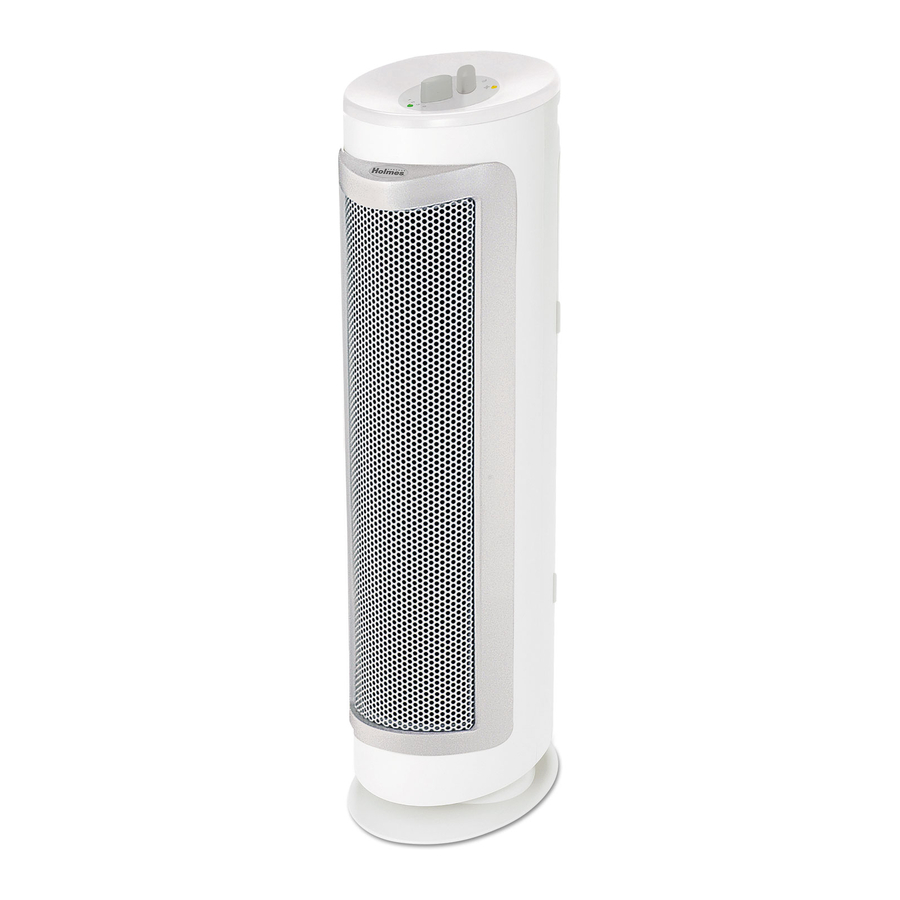

Holmes HAP716 - Allergen Remover Manual

GET TO KNOW YOUR AIR PURIFIER

Your true HEPA air cleaner removes up to 99.97% of airborne allergens as small as 0.3 microns, including ragweed pollen, grass pollen, tree pollen, household dust, dust mite debris, mold spores, pet dander and smoke from the air passing through the filter.

IONIZER

This appliance has an optional ionizer feature which, when turned on, releases negative ions into outgoing filtered air to help the air purification process.

What Are Ions?
Ions are tiny particles that carry a positive or negative charge. They exist naturally around us: in the air, water, and ground. Both positive and negative ions are colorless, odorless, and harmless.

How Does The Ionizer Work?
Negative ions help air purification by attaching themselves to very small airborne particles in the room. These particles take on a negative charge and may join with positively charged particles such as dust, pollen, smoke, and pet dander to form larger particles. These larger particles are then more easily captured by the filter system.

Important Notes:
Your ionizer may produce an occasional popping or cracking sound. This is normal and occurs when a small buildup of ions is discharged.

After extended use, you may notice dust around the grills or front panel. This is caused by negative ions exiting the air outlet, evidence of the ionizer's air cleaning effectiveness. You can remove the dust with a soft brush or clean, damp cloth.

Larger particles may be attracted to positively charged surfaces throughout the home, like walls or floors.

• This may occur more frequently when the filter is nearing the end of its useful product life and unable to capture as many charged particles.
• Excessive amounts of pet dander, dust, or smoke may decrease the life expectancy of the filter and interfere with the ionization process.

To help prevent particles from attracting to surfaces throughout your home:

• You may want to run the ionizer less often.
• Check the condition of the filter more frequently.

The ionizer in this appliance produces less ozone than the UL* established limits of 50ppb. However, in high concentrations, ozone can be harmful to birds and small pets. To prevent ozone buildup, we suggest using the ionizer in well ventilated areas with the fan on.

*Tested and listed by the Underwriters Laboratories, Inc.

OVERVIEW

(Fig. 1)

1. AIR INLET GRILL
2. WASHABLE FOAM PRE-FILTER
3. TRUE HEPA FILTER (2 PCS)
4. FILTERED AIR OUTLET

Top of The Unit

5. FILTER INDICATOR LIGHT
6. RESET HOLE
7. IONIZER LIGHT
8. IONIZER CONTROL
9. SPEED CONTROL
10. POWER LIGHT

TRUE HEPA FILTER

HEPA (High Efficiency Particulate Air) filters are designed to remove up to 99.97% of airborne pollutants at 0.3 microns or larger, from the air that passes through them. These include tobacco smoke, household dust, pet dander and pollen.

HIGH, MEDIUM AND LOW SPEED SETTINGS

For optimum air filtration, operate your Holmes^® air purifier continuously on the MEDIUM ( 2 ) setting. Its rugged motor has been designed to give many years of use. For quieter operation (such as in a bedroom), select the LOW ( 1 ) setting. When high levels of air pollution are present, select the HIGH ( 3 ) setting to quickly circulate and filter the room air.

FILTER MONITOR

The filter monitor light eliminates guesswork by letting you know when it is time to replace the filters.

BEFORE USE

1. Carefully unpack your Air Purifier.
2. Select a firm level place with no obstructions to the air inlet or filtered air outlet.
3. If the filter is covered by a bag when shipped, remove plastic bag before use and place filters into unit.

DO NOT POINT FILTERED AIR OUTLET TOWARDS WALL.

OPERATING INSTRUCTIONS

1. Plug into a 120V AC electrical outlet.
2. Select the desired operating speed from HIGH ( 3 ), MEDIUM ( 2 ) or LOW ( 1 ) by moving the knob to the desired setting.
3. To release negative ions into the filtered air, turn the ionizer knob to ON ( ) and the light will illuminate.

For optimum air filtration, it is recommended to operate the air purifier continuously. Its rugged motor has been designed to give many years of use.

CLEANING/MAINTENANCE INSTRUCTIONS

1. Turn the air purifier off and unplug it before cleaning.
2. The outside of the air purifier can be cleaned with asoft, clean dampened cloth.
3. The rear air inlet grill can be removed and washed inwarm soapy water (not dishwasher safe). Dry before replacing in the unit.
4. The filtered air outlet can be cleaned of dust with a small, soft brush.
5. If you wish to clean the inside of the air purifier, please only use a dry, soft cloth to wipe it down.

   Do not allow moisture to come in contact with the main housing of the air purifier.

FILTER REPLACEMENT INSTRUCTIONS

• DO NOT attempt to wash and re-use HEPA filters.
• If new filters are enclosed in plastic bags, remove them before use.

NOTE: Every few weeks, check the condition of filters.

Filter life will vary, depending on air quality and usage. Under normal conditions of continuous use, HEPA filters need replacement every 10-12 months.

To replace your filter:

1. Turn off and unplug the air purifier.
2. Open the air inlet grill and examine the foam prefilter. Remove any dust or lint, and wash in warm soapy water. Rinse, drip dry, and place back into grill inlet.
3. Remove used filters from the unit by pulling them gently towards you and discard them. DO NOT attempt to clean the old HEPA filters.
4. Install new HAPF300 HEPA filters (usage: 2 filters ineach unit) into the unit. This model utilizes hang tabs and filter clips to insure that the filters are properly in place. Before replacing the filters, make sure that the hang tabs are Fig. 2 securely in place. The clip can only be attached to the tabs on the filter one way. The filter clip should easily slide onto the filter hang tab with only a small amount of pressure. DO NOT use Fig. 3 force while attaching the clip to the filter. (Fig. 2)

5. Align the clip on the sideof HEPA filter with rails on the inside of the purifier unit. Gently slide the filter onto the rail. (Fig. 3)

6. Replace air inlet grill.
7. This model requires user to reset the Filter LifeMonitor once filters have been replaced. Reset the monitor by inserting a small object (such as a pin or paperclip) into the hole marked RESET ( ) and holding it down for 2-3 seconds.

Filters can be purchased at a retailer near you, online at www.holmesproducts.com, or by calling 1-800-546-5637.

TIPS AND TROUBLESHOOTING

LEARNING MORE

For a wealth of information about your air purifier and other Holmes^® products, visit our website at www.holmesproducts.com or call 1-800-546-5637.
