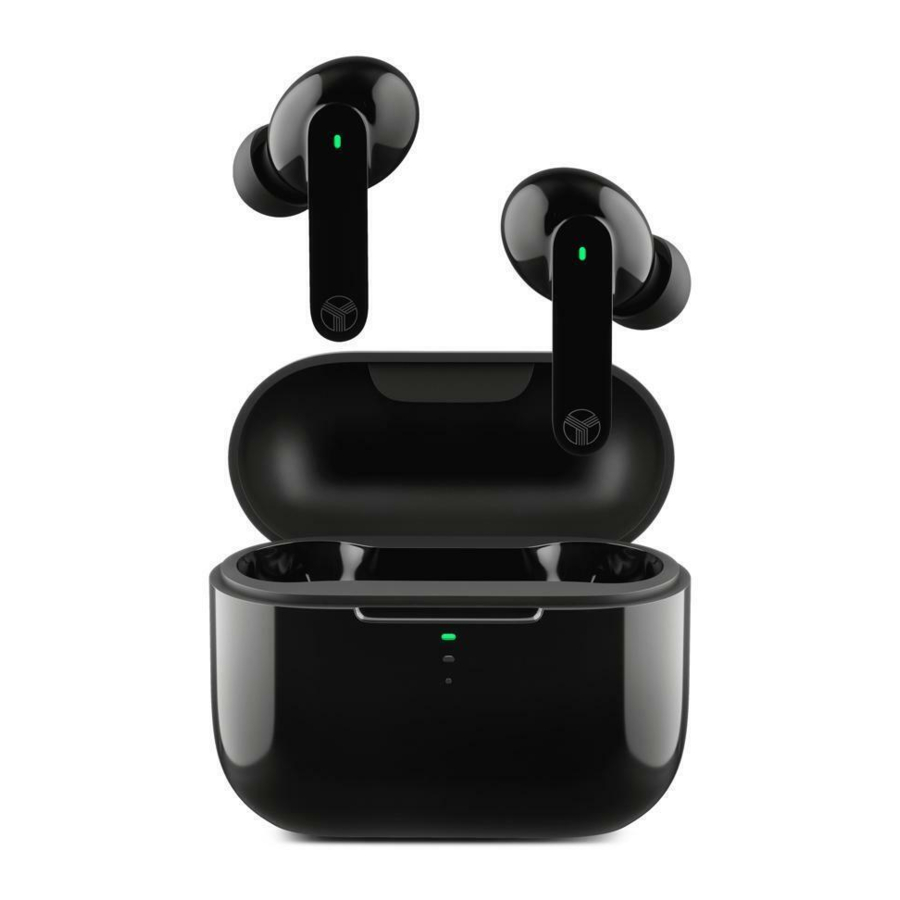

TREBLAB X1 - Waterproof True Wireless Earbuds Manual

IN THE BOX

IN THE BOX

  1. Earbuds
  2. User's manual
  3. Charging cable
  4. Charging case
  5. Round Treblab logo sticker
  6. Silicone L, M, S ear-tips

Thank you for choosing TREBLAB X1!
Our earbuds provide superior sound quality and mobility combined with light-weight construction and the convenience of hands-free wireless operation. Before using this product, please read this manual.

FEATURES

Features - Part 1
Features - Part 2

EARBUDS FUNCTION

Function Operation
Power On Take the earbuds out of the case or tap on the Touch panels of both earbuds and hold for 2 sec.
Power off Put the earbuds back to the case and close it or tap on the Touch panels of both earbuds and hold for 4 sec.
Disconnect Press and hold the case MFB for 3 sec when the earbuds ate in the case and the lid is open.
Pause / Play Double-tap on either earbud's Touch panel.
Next track Triple-tap an the right earbud's Touch panel.
Previous track Triple-tap on the left earbud's Touch panel.
VoIume + Tap on the right earbud's Touch panel once.
Volume - Tap on the left earbud's Touch panel once.
Answer a phone call Double-tap on either earbud's Touch panel during the incoming call.
Reject a phone call Tap on either earbud's Touch panel and hold for 2 sec during the incoming call.
Hang up Double-tap on either earbud's Touch panel during the call.
Voice assistant activation Tap on either earbud's Touch panel four times.
Gaming mode Tap on the left earbud's Touch panel and hold for 2 sec.
Transparency mode Tap on the right earbud's Touch panel and hold for 2 sec.
Factory reset Press and hold the case MFB for 10 Sec when the earbuds are in the case and the lid is open.

WEARING METHOD

Using the correct size ear-tips is critical for the maximum external noise isolation and a snug secure fit. It is also common to have different sized ear canals so try one ear-tip on at a time to find the best fit for each side.
WEARING METHOD
To get the best possible fit with your X1 earbuds, gently push the earbuds into your ears and adjust the headset until it fits comfortably. You should notice a drop in ambient noise when the ear-tip has been placed correctly. With a proper fit, you'll notice more range when listening to music.

To change the silicone ear-tips:
To change the silicone ear-tips

  1. Turn over the ear-tip upper cover.
  2. Rotate and firmly push the ear-tip tube to cover the ear-tip pillar.
  3. Turn the ear-tip upper cover back on the nozzle.

CHARGING

CHARGING
The X1 model comes with a protective film on the charging contacts of both earbuds that Is used for presale protection. Please remove the film carefully to charge the earbuds.

To charge the case

To check the case battery level, press the MFB on the rear side of the case or just open the case lid. There are 3 LEDs indicating the respective battery level:

RED - 0-30% of the battery
BLUE - 30-80% of the battery
GREEN - 80-100% of the battery

When the case is fully discharged, there will be no LED indication on the case when you press the MFB or open the case lid.

We recommend charging the case when the battery level reaches 0-30% (red LED). To do so, plug it to a power source using the supplied Type-C cable. You will see the red LED on the front side oi the case. It takes up to 2 hours to fully Charge the case. When the case is charged, you will see the greed LED on the front side of the case.
Be sure to use a 5V OC, 0.5 - 1A adapter or charger. Using a power source with lower power will increase the overall charging time.

To charge the earbuds with the charging case

When the earbuds' battery is low, you'll hear the five-tone sound prompt. To charge the earbuds, put both earbuds into the respective slots in the charging case. The earbuds will turn off automatically and Start taking the charge. The red LED indicators of the earbuds will turn on. It takes about 2 hours to charge the earbuds fully. When the earbuds are fully charged, the LED indicators will turn green for 1 minute and go off.

SETTING UP YOUR TREBLAB X1

To turn the earbuds ON

  1. Take the earbuds out of the case, the earbuds will turn on automatically.
  2. Another option ta turn them on is to tap on the Touch panels of both earbuds and hold for 2 seconds. you will hear the ascending four-tone sound prompt. The green LEDS on both earbuds will start flashing rapidly and, a few seconds later, the LED on ane of the earbuds will start flashing green and ted.
  3. You will hear the three tone sound prompt when the earbuds are pairing and the double-beep sound prompt after connecting to the device.

warning NOTE:
Even if the earbuds can connect to the device while sitting in the case with the lid open, they will stay muted until you take them out of the case.

To turn the earbuds OFF

  1. Put both earbuds into the slots in the charging case and close the case fid.
  2. Alternatively, tap on the Touch panels of both earbuds and hold for 2 sec. You will hear the descending four-tone sound prompt, and the red LED on both earbuds will light up for 1 second and go off.

PAIRING

You can pair the X1 earbuds with your device either together or separately.
Using only one earbud at a time will help you to extend the overall playtime. Please read the instructions below to make the pairing process smooth and easy.

To pair both earbuds

  1. Open the case lid and take the earbuds out of the case. The green LEDs on both earbuds will start flashing rapidly and, a few seconds later, the LED on one of the earbuds will start flashing green and red.
  2. Activate Bluetooth on the device, search for TREBLAB X1, and click CONNECT.
  3. If prompted by your device to connect, select Yes.
  4. You will hear the double-beep sound prompt indicating that the earbuds are connected. The LED indicators will go off.

When you turn the earbuds on they will try to reconnect with the recently connected device. If the reconnection does not happen automatically, the earbuds will try to find the next device in the pairing list. You can only connect and play audio from one device at a time, but you can save up to 6 connected devices in the pairing list.

warning NOTE:
The earbud, which LED is flashing green and red during the painting, is the main one. For better performance, keep your smart device closer to the main earbud.

To pair one earbud only

  1. Take one earbud out from the charging case. The earbud should start flashing green and red indicating that it is in the pairing mode.
  2. Activate Bluetooth on the device, scan/search far TREBLAB X1, and click CONNECT.
  3. If prompted by your device to connect, select Yes.
  4. You will hear the double-beep sound prompt indicating that the earbuds are connected. The LED indicator will go off.

AUDIO PLAYBACK

To pause and resume the playback, double-tap on either earbud's Touch panel.

To change tracks on X1, triple-tap on the right earbud's Touch panel to play the next track and triple-tap an the left earbud's Touch panel to play the previous track.

To adjust the volume, tap on the right earbud's Touch panel once to increase the volume and tap on the left earbud's Touch panel once to decrease the volume.

PHONE CALLS MANAGEMENT

The TREBLAB X1 have 4 dedicated microphones and support the ENC (Environmental Noise Cancelling) technology to provide the best calling experience. Audio playback will be paused during the calls.

To answer a call: Double-tap on either earbuds Touch panel during the incoming call.
To reject a call: Tap on either earbud's Touch panel and hold for 2 sec during the incoming call.
To end a call: Double-tap on either earbud's Touch panel during the call

GAMING MODE

TREBLAB X1 earbuds support the gaming made to reduce the audio latency up to 60rTIS. This allows to achieve better video/audio synchronization and improve your gaming and video watching experience.

  • To enable the gaming mode, tap on the left earbud's Touch panel and hold for 2 sec you will hear the three-tone sound prompt and feel the lower latency while gaming / watching videos.
  • To disable the gaming mode, tap on the left earbud's Touch panel and hold far 2 sec again. You will hear one tone sound prompt and the latency will go back to the standard zooms.

warning NOTE:
In the gaming rnode, the connection range is much shorter than the standard one, so, if you are experiencing some connection issues or drops, please make sure to disable the gaming mode.

TRANSPARENCY MODE

The X1 model support the Transparency mode which allows to amplify some frequencies to hear the voice clearer while wearing the earbuds. To enable/disable this mode, tap on the right earbud's Touch panel and hold for 2 sec.

warning NOTE:
Make sure not to cover the earbuds with anything while using the Transparency mode.

VOICE ASSISTANTS SUPPORT

TREBLAB X1 earphones are compatible with Siri, Google Voice Assistant and others, To use a voice assistant, tap on either earbud's Touch panel tour times.

RESET TO THE FACTORY SETTINGS

You can reset the X1 earbuds to the factory default settings by cleaning up the pairing list with the last 6 connected to X1 devices.
Make sure that the charging case has some charge. Put the earbuds into the charging case and leave the lid open. Press and hold the case MFB for 10 sec until you see the red/blue LEDs blinking 3 times an the case and green/red LEDs blinking 3 times on the earbuds. The earbuds memory is returned to the factory settings now.

TROUBLESHOOTING

Can't turn the earbuds ON Please make sure the earbuds are charged, if not — charge them and try again.
Earbuds do not charge Please check if there is a protective tape on the charging contacts of both earbuds. If yes, please remove it and try to charge the earbuds once again.
Clean the charging contacts on the earbuds with a slightly damp cotton swab when they are turned off (we recommend using water or a specially designed cleaning fluid sold for electronics).
Check it the earbud slots in the charging case are free of debris.
Try charging the case with another Type-C cable, power source, adaptor (if available).
Device doesn't find TREBLAB X1 Make sure the X1 buds are not paired with any other device, as they can pair only with one device at a time.
If X1 are in pairing mode and one of the earbuds flashes green and red, but still is not found by your device. please restart your device and the headset.
Reset your earbuds to the factory settings by following the steps from the previous section. Try to pair again.
Frequent disconnection and noise Make sure that the distance between your device and the earbuds is less than 33 feet/ 10 meters.
Make sure that nothing is blocking the signal between your device and your X1 earbuds. If the earbuds are on, but disconnected from the device for longer than 10 minutes, they will automatically tum off to save power.
Can't connect the earbuds to the device Make sure the X1 earbuds are not paired with any other device, as they can pair only with one device at a time. Make sure that the distance between your device and the headphones is less than 30 feet/10 meters.
Disconnect the device from your earbuds and remove X1 from your device's pairing list.
Reset your earbuds to the factory settings by following the steps from the previous section. Try to pair again.
I cannot find a wireless driver for on my laptop Make sure your Iaptop supports wireless connection. If it doesn't, you will need an external wireless USB adapter compatible with your laptop. For further details, consult with your laptop manufacturer.

BATTERY INFORMATION

  • Your device is powered by rechargeable batteries.
  • Unplug the charging case from the electrical plug when not in use.
  • If left unused, a fully charged battery will lose its charge over time.
  • We recommend a full charging twice a month to ensure the battery integrity.
  • Please do not leave the device (and the charging case) in hot or cold places, such as a closed car in summer or winter because this will reduce the capacity and lifetime of the batteries.
  • Do not put the batteries in a fire as they may explode.
  • Batteries may also explode if damaged.

SAFETY RULES

  • Never disassemble or modify your X1 for any reason. Doing this may cause the device to malfunction or even become combustible. The damage to your device can void your manufacturers warranty.
  • Do not allow your device to get wet - liquids can cause serious damage.
    Make sure the earbuds are dry before charging.
  • Avoid exposing TREBLAB X1 to extreme temperatures (below 370F / 30C or above 1120F / 450C). Extreme temperatures can cause the deformation of the X1 components, reduce the battery life and the lifespan or your new earphones.
  • Avoid putting the devices LED lights close to the eyes of children or animals.
  • Do not use your X1 during a thunderstorm. Thunderstorms can cause serious malfunction and increase the risk of electric shock.

warning NOTE:
Use only the provided USB/ Type-C cable to charge.

RECYCLING

The earphones can be recycled, and they should be in order to keep our planet clean. Where should you bring them?

In the US, there are a couple of options:

  1. Best Buy has a recycling program. Just take the broken earbuds with you next time you visit a Best Buy store. This link will help you find the best location:
    https://www.bestbuy.com/site/store-iocator/
  2. Check for other possible locations next to you on these websites (just enter your ZIP to find a location):

https://www.call2recycle.org
https://www.search.earth911.com
https://www.cta.tech/Consumer-Resources/Greener-Gadgets

In Canada, please visit the links below:
https://www.thinkreuse.net
https://www.call2recycle.ca

In the UK, please visit the links below:
https://www.recycle-more.co.uk/
https://www.recyclenow.com/local-recycling

SPECIFICATIONS

Battery: Earbud (each): 50mAh
Charging time: Charging case: 600 mAh
Calling: Up to 2 hours for the case and earbuds
4 microphone with ENC technology
Voice assistant activation: Supported by tapping an either earbud's Touch panel four times
Bluetooth version: BT5.O
Profiles: A2DP, AVRCP, HFP, HSP
Audio playback support: AAC, SBC.
Signal Range: 33ft/10m
Driver size: 6 mm, 32 Ohm
Charging port: Type-C
Dimensions: Earbuds (each): 33 x 24 x 21 mm / 1.3 x 0.9 x 0.8 in
Charging case: 54.5 x 26 x 40 mm/ 2.15 x 1.02 x 1.57 in
Weight: Earbuds (each): 32 g/0.14 oz / 0.08 lb
Charging case: 31.4 g / 1.10 oz / 0.07 lb

TREBLAB X1 MEET IPX4 WATERPROOF STANDARD

SUITABLE: UNSUITABLE:
Splashes Swimming
Light rain or snow Diving into water
Sweating Snorkeling or Scuba diving
Watersports.
Showering
Dropping into water up to 2 depth of 3 feet /1 meter for up to 30 minutes

Contact us: www.treblab.com/contact_us.

1 YEAR WARRANTY
Parts and Labor Warranty.

Please visit www.treblab.com to register YOUR product.
