TREBLAB XR700 - Wireless Running Earbuds Manual

PRODUCT OVERVIEW

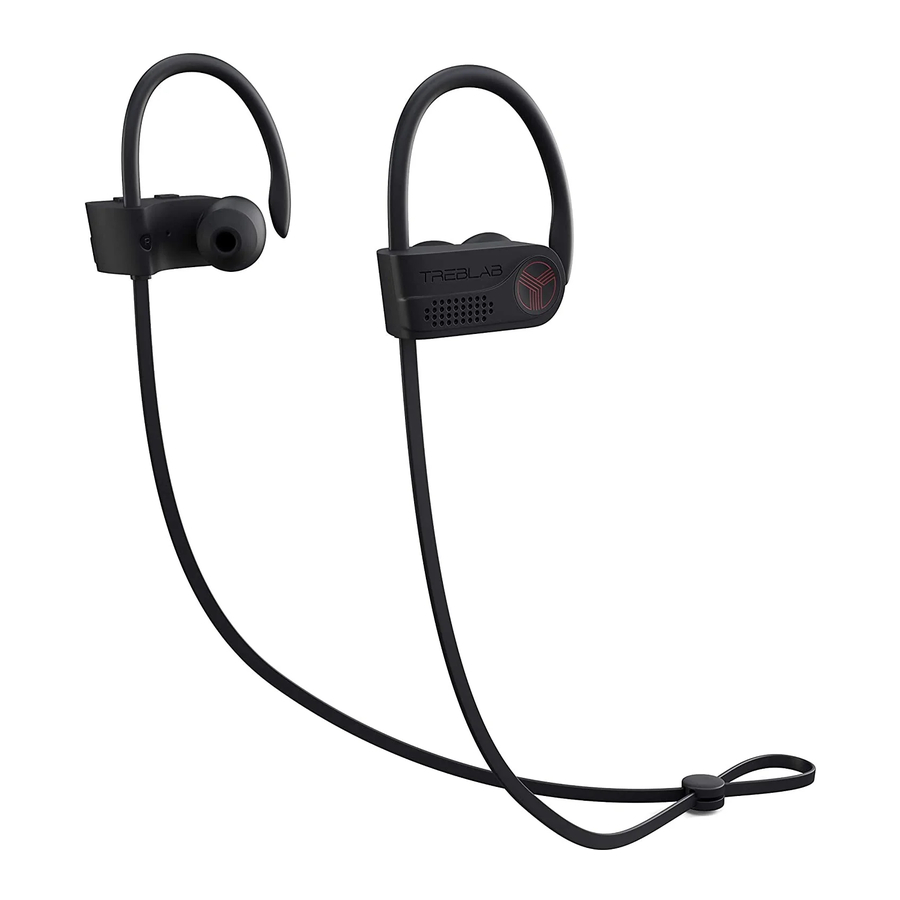

  1. TREBLAB XR700
  2. Carrying case
  3. Sllicone eartips
  4. Foam eartips
  5. Users manual
  6. Charging cable
  7. Cord minder

Thank you for choosing TREBLAB XR700

The earphones provide superior sound quality and mobility, combined with light-weight construction and the convenience of hands-free wireless operation. Before using this product please read this manual

Thank you for choosing TREBLAB XR700

WEARING YOUR HEADSET

Using appropriate-size eartips and ear-fns is critical for maximum external noise isolation and a snug, secure fit It is also common to have different sized ear canals, so try the eartips one at a time to find the best fit for each side. Better to try the various sizes of foam and silicone tips supplied with XR700-

To seat the XR700 earbuds firml, try gently pulling on the outer rim of your ear to ease the tip into a comfortable position, You should notice a drop in ambient noise when the tip is seated correctly, And when you're listening to music, you'll notice more range Moreover, the XR700 model is enabled with a flexible earhook you can adjust around your ear for perfect fixation,

Function Operation
Power On Press and hold for 2 seconds
Power Off Press and holdfor 2 seconds
Pause / Play Press
Volume* Press
Volume- Press
Next track Press and holdfor 2 seconds
Previous track Press and holdfor 2 seconds
Answering call Pressduring the incoming call
End call Pressduring the conversation
Reject Press and holdduring the incoming call
Redial Presstwice

To change the foam ear-tips:
To change the foam ear-tips

  1. Put the rubber inner part of the foam ear-tip on the top of the nozzle.
  2. Rotate and push down the ear nozzle, trying to forcedly •iwrapi• it to the inner rubber part of the ear tip, with a kind of screwing movement

To change the silicone ear-tips:
To change the silicone ear-tips

  1. Turn over the ear-tip upper cover.
  2. Rotate and firmly push the ear-tip tube to cover the ear-tip pillar,
  3. Turn the ear-tip upper cover back on the nozzle.

SETTING UP YOUR TREBLAB XR700

Turn ON
Press and hold the POWER button for 3 seconds,
You will hear a "Power ON" voice prompt, and the blue & red LED light will start flashing.

Turn OFF
Press and hold the POWER button for 3 seconds.
You will hear a *Power OFF" voice prompt, and the flashing blue LED light will go off

Pairing
Make sure TREBLAB XR700 is fully charged and turned OFF.

  1. Press and hold the POWER button on the right earbud. You will hear the "Power ON• voice prompt and "PAIRING* a few seconds later (LED will flash red and blue rapidly}. Release your finger.
  2. Activate the wireless connection option on your smart device and keep it within 3 feet / 1 meter while pairing.
  3. Using your smart device, scan/search for available devices
  4. Select TREBLAB XR700 from the device list.
  5. If prompted for the password, enter "0000",
  6. Once XR700 is successfully paired and connected, you will hear a "CONNECTED" voice prompt. and the LED will start flashing blue every 6 seconds

TREBLAB XR700 can be paired to only 1 device at a time. The system will prevent pairing with any other devices To connect XR700 to another device

  1. Temporarily switch OFF the wireless mode on the first device you connected to.
  2. Repeat steps 1-6 and connect the other device
  3. Turn wireless mode back ON for the first device

When you tum the earbuds ON, they will try to reconnect with the most-recently connected device, If reconnection does not happen automatically, the earbuds will try to find the next device in the pairing list

AUDIO PLAYBACK

  • To pause and resurne playback, press the POWER button
  • To adjust volume, short press the Volume button to turn the volume up and Volume - button to turn the volume down
  • To change tracks on the XR700, press and hold the Volume • button to play the next track and Volume button to play the previous track

PHONE CALLS MANAGEMENT

TREBLAB XR700 can be used to make and receive phone calls when connected wirelessly, Audio playback will be paused during calls.

To Answer Call Press the POWER button during the incoming call,
To Reject call Press and hold the POWER button for 2 seconds.
To End Call Press the POWER button while on the phone.
To Redial Press the POWER button twice.

TROUBLESHOOTING

Problem Solution
Not powering on Make sure the headset is fully charged. Charge for 2 hours. if necessary.
Reset the earphones press and hold the POWER button for 3 seconds while charging, until the LED flashes blue 3 times
Not pairing Make sure the speaker is not paired with any other device, as it can only pair with one device at a time.
Press and hold the POWER button for about 3 seconds while charging, until the LED flashes blue 3 times.
This will force the headset to forget previously paired devices. Repeat the steps for pairing as previously described.
Alternatively, disconnect the device from your headset and remove 'TREBLAB XR700 from your device's pairing list.
Try to pair again.
Nonbinding wireless driver on your laptop Make sure your laptop supports wireless connections.
If it doesn't, you will need an external wireless USB adapter compatible with your laptop.
For further details, consult with your laptop manufacturer.
Frequent disconnection and noise Ensure that the distance between your device and the headset is less than 30 feet / 10 meters.
Ensure that nothing is blocking the signal between your device and the XR700.
Check if the music is paused.
Check if the volume level s set both on the source device and on the speaker.
Check if the headset is running out of power.

RESTORE FACTORY SETTINGS

To restore the earphones back to factory settings

  1. Put the headset to charging.
  2. Press and hold the POWER button for 3 seconds while charging, until the LED flashes blue 3 times,
  3. Now the earphones are restored back to factory settings and ready to be paired again

CHARGING

One full battery charge provides up to 4 hours Of playing time at maximum volume, and up to 8 hours at medium volume When the battery is running low, you will hear a "BATTERY LOW" voice prompt.

To charge the earbuds. plug one end of the supplied cable into the Micro-USB charging port under the rubber cover of the right earbud. Plug the other end of the charging cable into a standard USB port It takes up to 3 hours to fully charge.

The LED light will turn on red while charging. The red light will tum blue when the earbuds are fully charged.

Be sure to use a 5V DC 052 A adapter or charger, using a power source with lower power will increase the overall charging time. Maximize the battery lifespan by charging your speaker through a computers USB port

Unplug XR700 from the charging cable and the cable itself from the power source when not in use.

If the headset is left unused, even the fully charged battery will Lose its charge over time We recommend fully charging the TREBLAB XR700 at least twice a month to maintain sufficient battery life

SAFETY RULES

  • Don't disassemble or modify your earbuds for any reason. Doing this may cause the earbuds to malfunction or become combustible. The damage to your device can void the manufacturer's warranty,
  • Make sure the headset is completely dry before charging. Charging a wet device may cause serious damage,
  • Clean only with a dry cloth.
  • Avoid exposing TREBLAB XR700 to extreme temperatures (below 37'F / SC or above 112i F / 45'C)- Extreme temperatures can cause deformation of XR700 components and reduce battery life and the lifespan of your headset.
  • Don't put the device's LED lights close to humans' or animals'
  • DO not use XR700 during a thunderstorm. Thunderstorms can cause serious malfunction and increase the risk of electric shock

SPECIFICATIONS

Battery up to 9 hours playing time (60% volume)
up to 4 hours (100% volume)
100 mAh 37 V, rechargeable Li-lon
Input 5 V / 1 A
Charging time up to 2 hours
Wireless connection version 50. HFP, A2DPvL3 AVRcm1.5
Signal Range 33 ft / 10 m
Frequency response 20 142—2 KHz
Water resistance IPX7
Charging port Micro-USB
Color Black
Dimensions 141 x 1.3 x 0.35 in / 36 x 33 x g mm
Weight 22 g / 077 oz / 0.05 1b

TREBLAB XR700 MEETS IPX7 WATERPROOF

SUITABLE UNSUITABLE
Rain or snow Swimming
Splashing Diving into water
Showering Snorkeling or Scuba Diving
Incidental exposure to water of up to 3 feet / 1meter for up 10 30 min High-speed water sports
Outdoor sports Sauna and steam bath

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download TREBLAB XR700 - Wireless Running Earbuds Manual
