CONTROLS

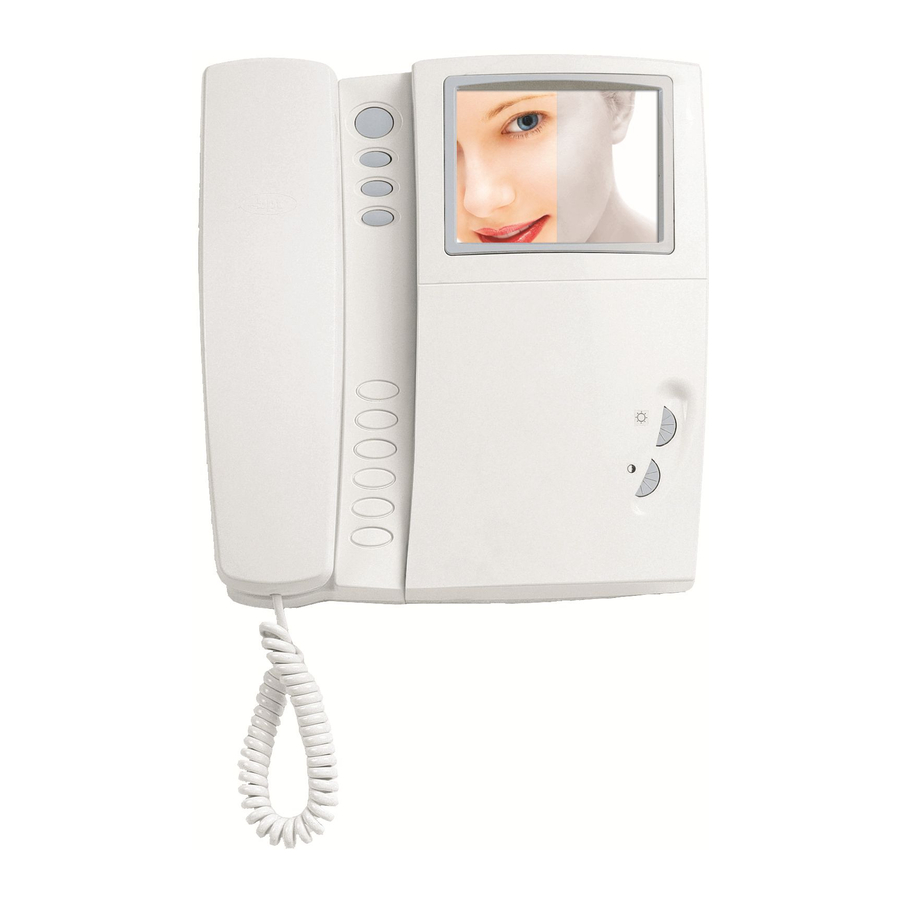

Monitor with video and secrecy of speech. With this monitor, the video signal may be transmitted by either a coaxial or a twisted pair.
Is equipped with the following controls:

	Door release control (1)
	Entry panel activation (2)
	Centralized auxiliary control (stairs light and entry panel selection) (1)
	Auxiliary control
	Brightness
	Contrast

(¹) The controls may only be activated by the monitor when it is switched on.

(²) The activation of the monitor and its subsequent connection to the external entry panel, are only possible if the system is not engaged by other conversations.

FOR THE USER

• Please do not open or tamper the device (high voltage!).
• Please avoid knocking or bumping the apparatus as it could result in the breakage of the picture tube and the consequent projection of glass fragments.
• In the case of breakdown or modification of the apparatus of the system (such as power supplier...) please contact a specialized maintenance service.

Personal door-bell button

The monitor fits a landing call input with a two-tone call, fig. 11.

Connecting YPL unit

When the YPL unit is installed in the receiver, wire jumper BP1 must be cut (fig. 10).

Y VL200UK+YP3 INTERCOM MONITOR WITH HANDSET

Used to manage up to 6 intercom units with 6 call buttons (two YP3).

The monitor permits to identify the source of a call: a continuous call tone identifies calls from other intercom units and a two-tone call identifies calls from the external entry panel (or from the landing). A call from the entry panel during an internal conversation between two intercom units is indicated by the activation of the monitor and the emission of a low acoustic signal. In this case, communication with the entry panel (and hence the possibility of activating both the door release control and the stairs light relay) may be established by hanging the handset of the intercom unit currently in use and lifting the handset of the one signalling a call.

SW1 switch

This switch (fig. 10), normally set to STD (standard mode), must be switched to INT when wanting to use the receiver as an intercom unit.

Entry panel selection in systems with several entrances

The VSI/200 selector allows you to select the external entry panel or camera from the monitor in sequential mode. To operate the selector: press the entry panel activation button () to turn-on the monitor; and then press the auxiliary button (•) to select the entry panels.

NOTE. In the event a call is made from the entry panel, the selection in progress is interrupted.

If the external call is addressed to the monitor making the selection, the monitor displays the image filmed at the external entry from where the call is addressed to another monitor, the image disappears from the monitor.

Function of each terminal

Terminal block M1

Coaxial cable:

3. video signal coaxial cable
4. video signal shield

If the video line ends at this monitor, connect a 75Ω (violetgreen-black-gold) resistor between terminals 3 and 4.

Twisted pair:

3. pos. video signal twisted pair
4. neg. video signal

If the video line ends at this monitor, connect a 56Ω (greenblue-black-gold) resistor between terminals 3-5 and 4-5.

5. – 14÷17,5 V
6. + supply voltage to monitor
7. call input from entry panel
8. audio to monitor
9. audio to entry panel
10. Aux - auxiliary services
11. 24V 1A)
12. call input from intercom receiver
13. stairs light
14. auto-switch on
15. call input from landing

Terminal block M2 (accessories)

connection for YAL loudspeaker
7A connection for YPL module

Function of connector

CN1 to connect to monitor YV.

Technical features

• Supply voltage: 14÷17,5 VDC.
• Current demand: max. 508 mA (<10 mA quiescent).
• Bandwidth response at -3dB: 5MHz.
• Video input: 1Vpp from coaxial line; + video signal 0,6Vpp, - video signal 0,6Vpp from differential line (twisted pair).
• Video input impedance: ≥22kΩ
• Call signal: two-tone call signal from the entry panel or from the landing.
• Audio secrecy to entry panel.
• CCIR (EIA) standard.
• Picture screen: 4" (10 cm).
• Horizontal frequency: 15,625 Hz (15,750 Hz EIA).
• Vertical frequency: 50 Hz (60 Hz EIA).
• Working temperature range: from 0°C to +35°C.
• Dimensions: 205x215x63mm.

The monitor is protected by the slow blow fuse F1 - T 630mA - located on monitor's printed card, fig.10.

INSTALLATION

It is recommended to install the monitor in a dry place.

Open the video entry control as shown in figures 2 and 3. Remove the connector (fig. 4) and install the video entry control as shown in figures 5, 6.

For even more secure fastening, remove the receiver support with a screwdriver through the slot (fig. 7) and fasten the video entry control as shown in figure 8. Connect (fig. 4) an re-install the video entry control as shown in figure 9.

DISPOSAL

Do not litter the environment with packing material:
make sure it is disposed of according to the regulations in force in the country where the product is used.
When the equipment reaches the end of its life cycle, take measures to ensure it is not discarded in the environment.
The equipment must be disposed of in compliance with the regulations in force, recycling its component parts wherever possible.
Components that qualify as recyclable waste feature the relevant symbol and the material's abbreviation.
