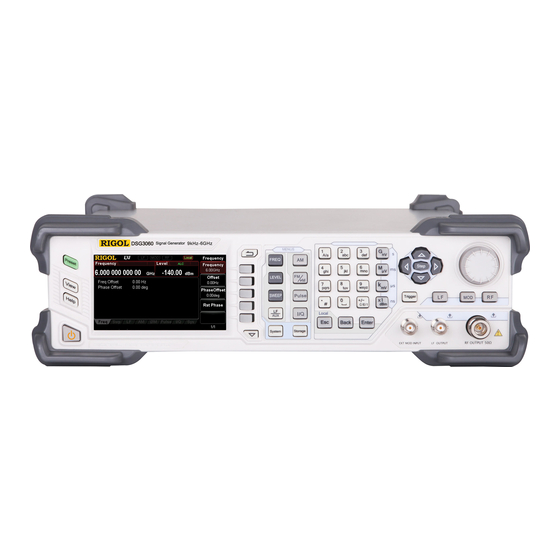

RF Signal Generator
The highest frequency: 3 GHz/6 GHz
Amplitude accuracy: <0.5dB (typical)
Output amplitude range: -130 dBm to +13 dBm
High signal purity, phase noise: <-110dBc/Hz@20kHz (typical)
Standard 0.5ppm internal clock; 5ppb high stable clock for option
Standard AM/FM/ΦM analog modulation
Standard pulse modulation; on/off ratio up to 80dB;
pulse train generator for option
I/Q modulation and I/Q baseband output
All modulations support internal and external modulation modes
Standard 2U height design to save rack space;
rack mount kit is available
Standard USB/LAN/GPIB remote control interfaces;
support SCPI command set
Wear-free electronic attenuator design
Well-designed automatically fl atness calibration function
(Cables, attenuators, amplifi ers and so on) for test
system with power meter control
RIGOL TECHNOLOGIES, INC.
DSG3000
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSG3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rigol DSG3000 Series

Summary of Contents for Rigol DSG3000 Series

  • Page 1 Standard USB/LAN/GPIB remote control interfaces; support SCPI command set Wear-free electronic attenuator design Well-designed automatically fl atness calibration function (Cables, attenuators, amplifi ers and so on) for test system with power meter control RIGOL TECHNOLOGIES, INC.

  • Page 2: Main Functions

    DSG3000 Series RF Signal Generator Main function keys Menu keys Preset/View/Help Flexible and easy-to-use editing keyboard 4.3 inches TFT LCD Signal output switches RF signal output System function Power key with delay Manual trigger LF signal output External modulation input...

  • Page 3: Specifications

    20ms to 100s Triggering Auto, trigger key, external, bus (GPIB, USB, LAN) NOTE: [1] Except in the case of the band1 is switched with the other band. [2] N is a factor used to help define certain specifications within the document. RIGOL...
  • Page 4 <5Hz rms, <1Hz rms (typ.) 0.03kHz to 20kHz <30Hz rms, <8Hz rms (typ.) Measured +13dBm output, Harmonics VS frequency Measured 0dBm output, Harmonics VS frequency Carrier frequency(MHz) Carrier frequency(MHz) Measured SSB phase noise Carrier offset NOTE: [1] Without IQ-DSG3000 option. RIGOL...
  • Page 5 ≤1.1dB, 3GHz < f ≤6GHz ≤0.9dB (typ.) ≤0.5 (typ.) ≤0.5 (typ.) VSWR 1MHz ≤ f ≤6GHz <1.8 (typ.) NOTE: [1] ALC state: on or auto mode, 20℃ to 30℃ [2] In 50Ω system, typical, level ≤-10dBm, ATT auto mode RIGOL...
  • Page 6 Measured 0dBm output level VS frequency Carrier frequency(MHz) Carrier frequency(MHz) Measured -60dBm output level VS frequency Measured -110dBm output level VS frequency Carrier frequency(MHz) Carrier frequency(MHz) Measured -127dBm output level VS frequency Measured -136dBm output level VS frequency Carrier frequency(MHz) Carrier frequency(MHz) RIGOL...

  • Page 7: Internal Modulation Generator (Lf)

    10Hz to 50kHz <3dB (nom.) NOTE: [1] Measurement in high-impedance state. [2] The modulation source is sine waveform unless otherwise noted. [3]Peak power of the envelope is no more than the maximum value of the specification output range. RIGOL...
  • Page 8 20ns to 170s Repetition per pattern 1 to 256 Pulse Generator Setting single double train trigger NOTE: [1] External operating mode, measured at 100kHz deviation. [2] External operating mode, measured at 5rad deviation. [3] The state of ALC is off. RIGOL...
  • Page 9 Frequency offset from carrier (MHz) Measured suppression of image sideband Measured carrier suppression Carrier frequency (MHz) Carrier frequency (MHz) NOTE: [1] [2]The parameter is measured at room temperature. When the temperature is difference from room temperature, the specification will deteriorate. RIGOL...

  • Page 10: Inputs And Outputs

    BNC female Rear Panel Communication Interface Connector A plug USB host Protocol Version2.0 Connector B plug USB device Protocol Version2.0 LXI core device 2011 class 10/100Base, RJ-45 IEC/IEEE bus (GPIB) IEEE488.2 NOTE: [1] Load from flash internal non-volatile memory. RIGOL...

  • Page 11: General Specifications

    30℃ to 40℃ ≤75% rel. humidity Altitude Operating height Up to 3,048m (10000ft) Dimensions (W × H × D) 364 mm × 112 mm × 420 mm(14.33 in × 4.41 in × 16.54 in) Weight 6.4kg(14.1Ib) With IQ-DSG3000 option 6.7kg(14.8Ib) RIGOL...

  • Page 12: Ordering Information

    RIGOL Technologies, Inc. Product information in this document subject to update without notice. For the latest information about RIGOL's products, applications and services, please contact local RIGOL offi ce or access RIGOL offi cial website: www.rigol.com...
