Rigol DSG3000 series Installation Manual

Installation Guide
RIGOL
DSG3000 Rack Mount Kit
This rack mount kit is designed to mount RIGOL DSG3000 series RF signal generator into a
19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard.

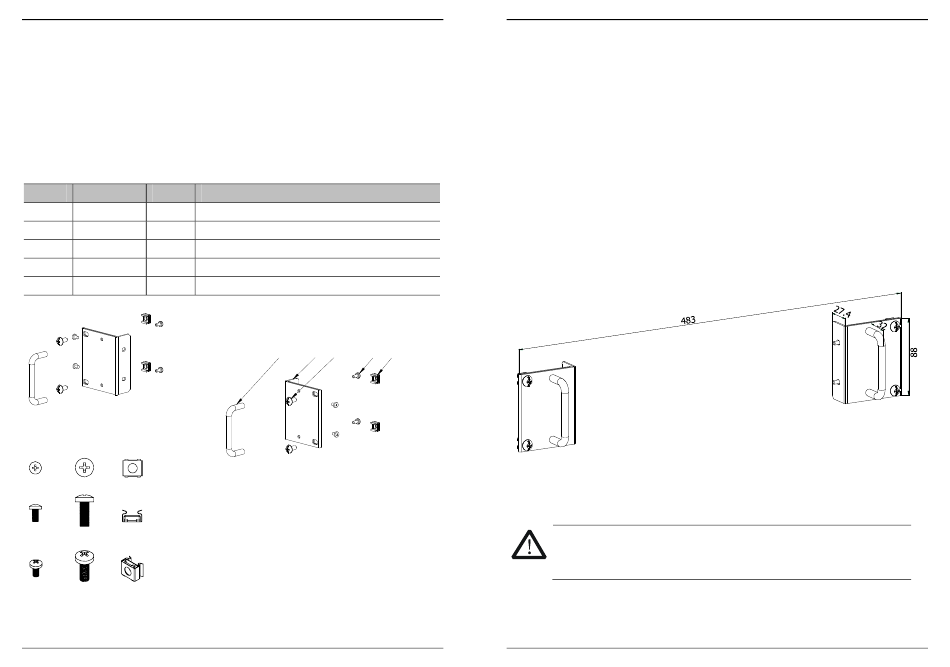

Kit Part Checklist

No. Name Qty. Description
1 Fastener 2 --
2 Rack Handle 2 --
3 M4 Screw 8 M4 x 8 Phillips Pan Head Screw
4 M6 Screw 4 M6 x 16 Phillips Pan Head Screw
5 M6 Nut 4 M6 Square Lock Cage Nut
3 4 5
RIGOL
2 1 4 3 5
1
Installation Guide

Installation Tool

The PH2 Philips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.

The available height of the cabinet should be at least 2U (88.9 mm).

The depth of the cabinet should be at least 450 mm.

The dimensions of the rack are as shown below.

Installation Procedures

CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
RIGOL
Unit: mm
2
