TRENDnet TFC-110MSC - DATA SHEETS Datasheet

FEATURES
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• One 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
• Auto MDIX for 10/100Base-TX port
• One 100Mbps fiber port with Multi-mode SC-Type Connector
• Half / Full-Duplex mode selector on Fiber port
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Wall-Mountable
• Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• 3-year limited warranty

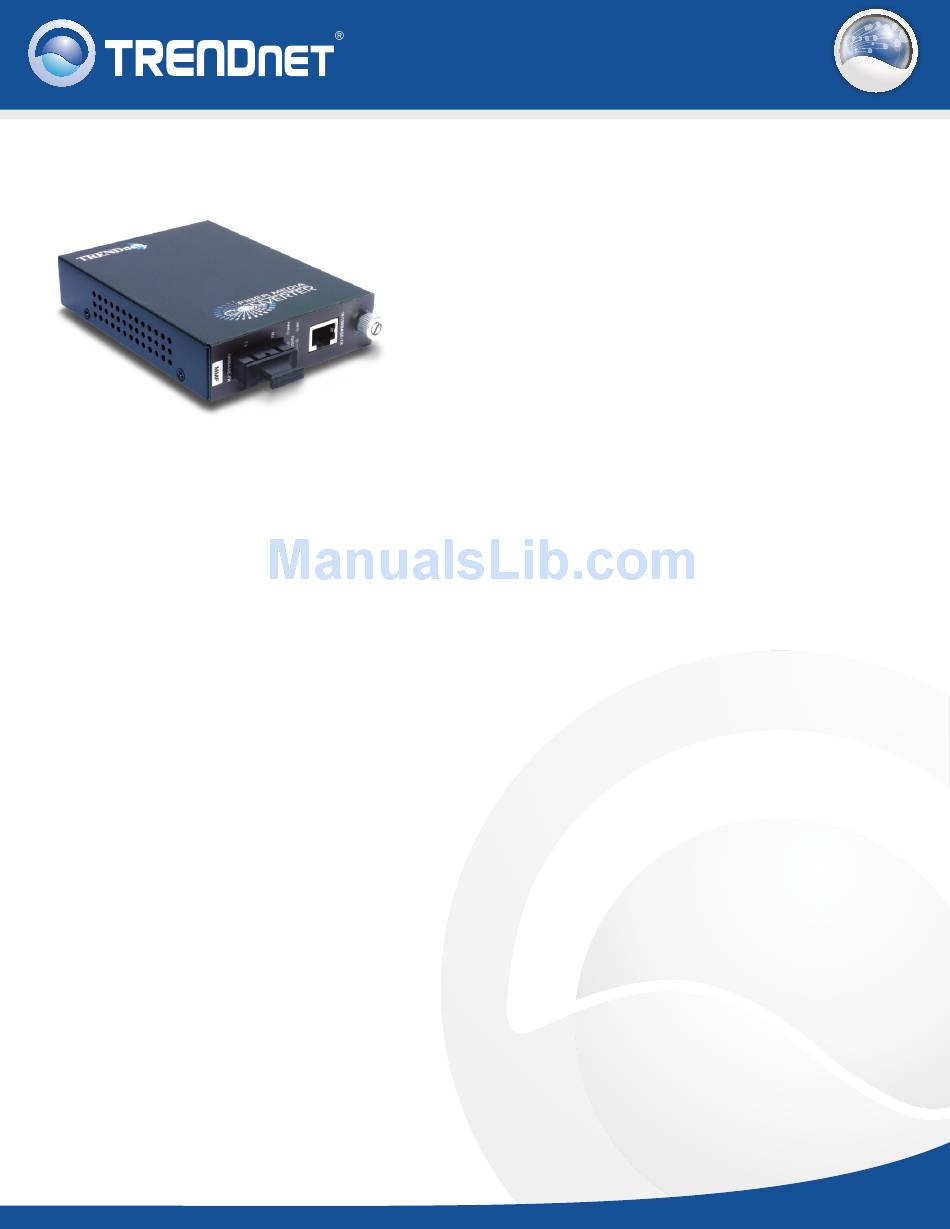

10/100Base-TX to 100Base-FX Multi-Mode
Fiber Converter with SC-Type Connector
TFC-110MSC (b1)
TRENDnet's TFC-110 series Fiber Media Converter
transforms 10/100Base-TX UTP/STP media to 100Base-FX
media and vice versa. The 10/100Base-TX port auto-sense
10 or 100Mbps connection speed, auto-negotiates half-/full-
duplex mode, and auto-selects MDI-X / MDI-II media type.
The fiber connection can be multi-mode SC, MT-RJ, or
single-mode SC Connector and it has a slide-switch for
selecting half- or full-duplex mode. This converter will give
your Switch/Hub the ability to interface with fiber connection
over a distance up to 2 km. With the optional 16-slot EIA-19"
rack-mount chassis; the TFC series converters are the
perfect solutions for various fiber media conversions for your
network.
fiber
TFC-110MSC(b1)
rev: 07. 1 9.2010
