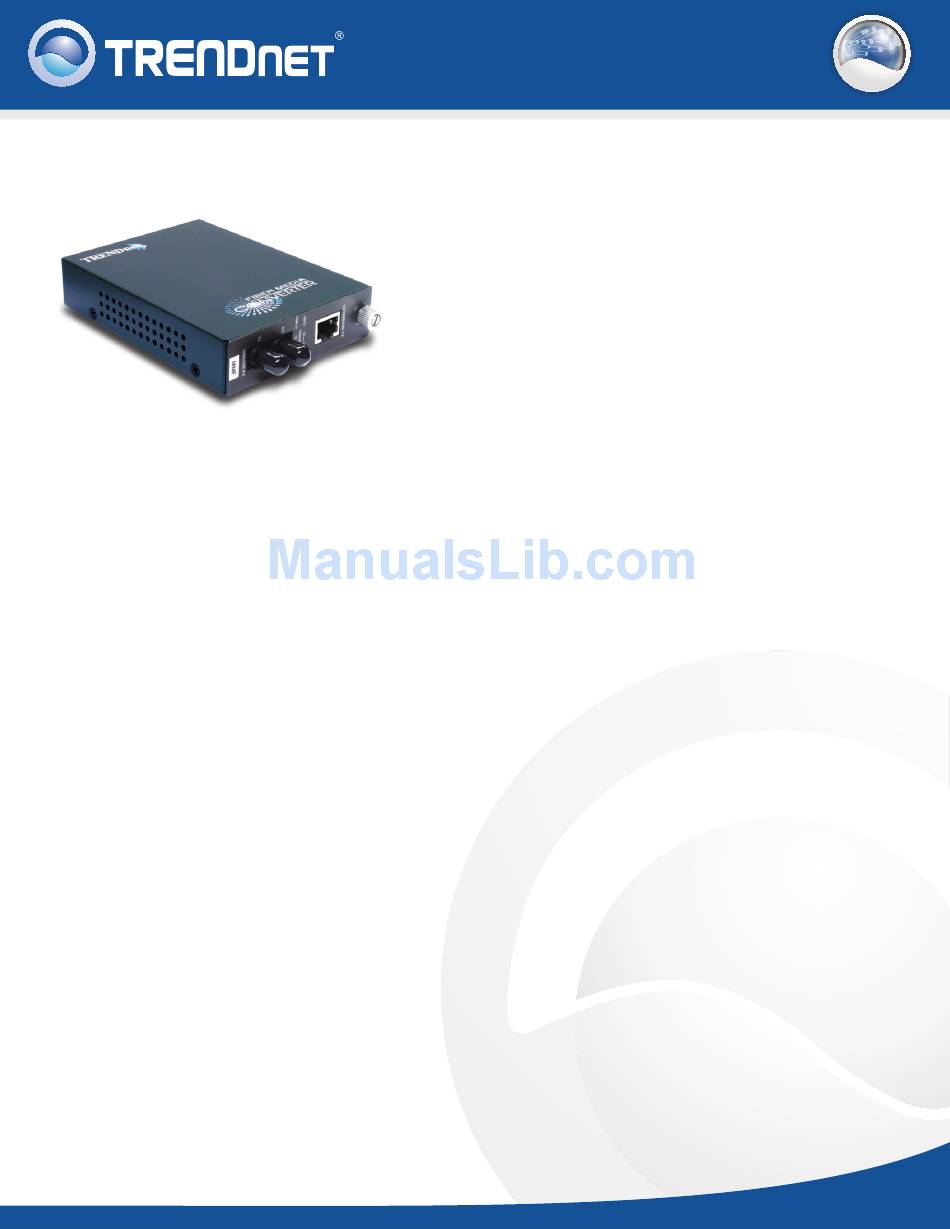

TRENDnet TFC-110MST - DATA SHEETS Datasheet

FEATURES
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• One 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
• Auto MDIX for 10/100Base-TX port
• One 100Mbps fiber port with Multi-mode ST-Type Connector
• Half / Full-Duplex mode selector on Fiber port
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Wall-Mountable
• Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• 5-year limited warranty

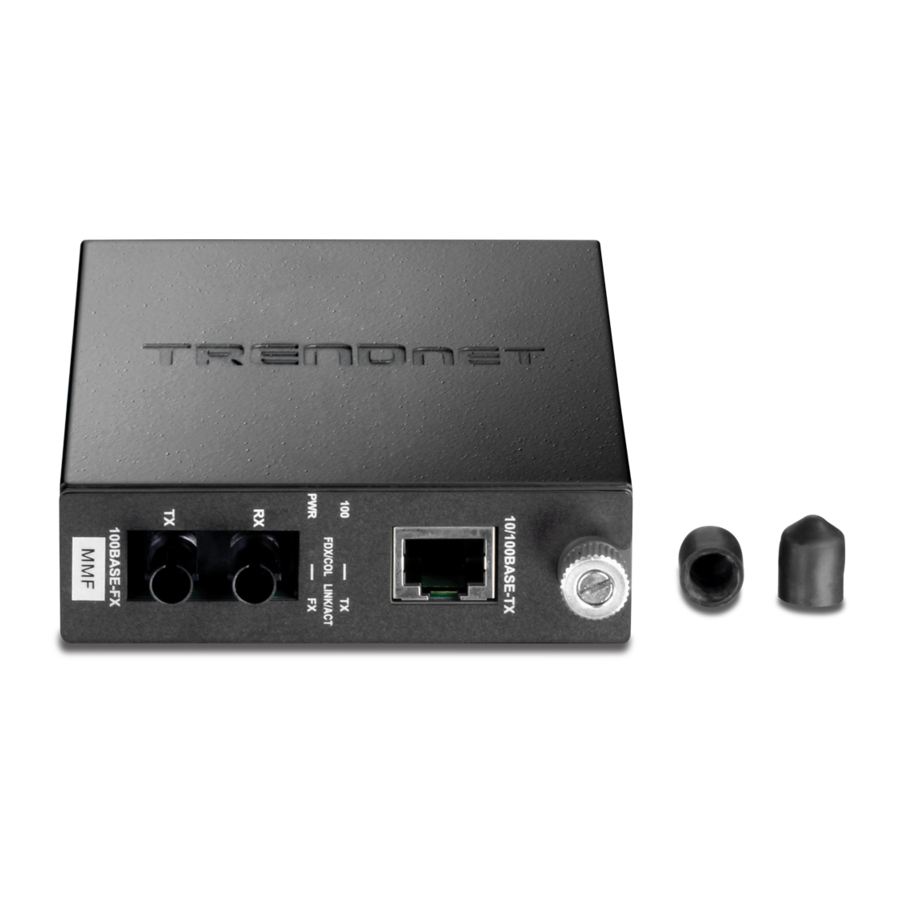

10/100Base-TX to 100Base-FX Multi-Mode
Fiber Converter with ST-Type Connector
TFC-110MST (b1)
TRENDnet's TFC-110 series Fiber Media Converter
transforms 10/100Base-TX UTP/STP media to 100Base-FX
media and vice versa. The 10/100Base-TX port auto-sense
10 or 100Mbps connection speed, auto-negotiates half-/full-
duplex mode, and auto-selects MDI-X / MDI-II media type.
This converter will give your Switch/Hub the ability to
interface with fiber connection over a distance up to 2 km.
With the optional 16-slot EIA-19" rack-mount chassis; the
TFC series converters are the perfect solutions for various
fiber media conversions for your network.
fiber
TFC-110MST(b1)
rev: 07. 1 9.2010
