Summary of Contents for Lewmar Gen 2 S900

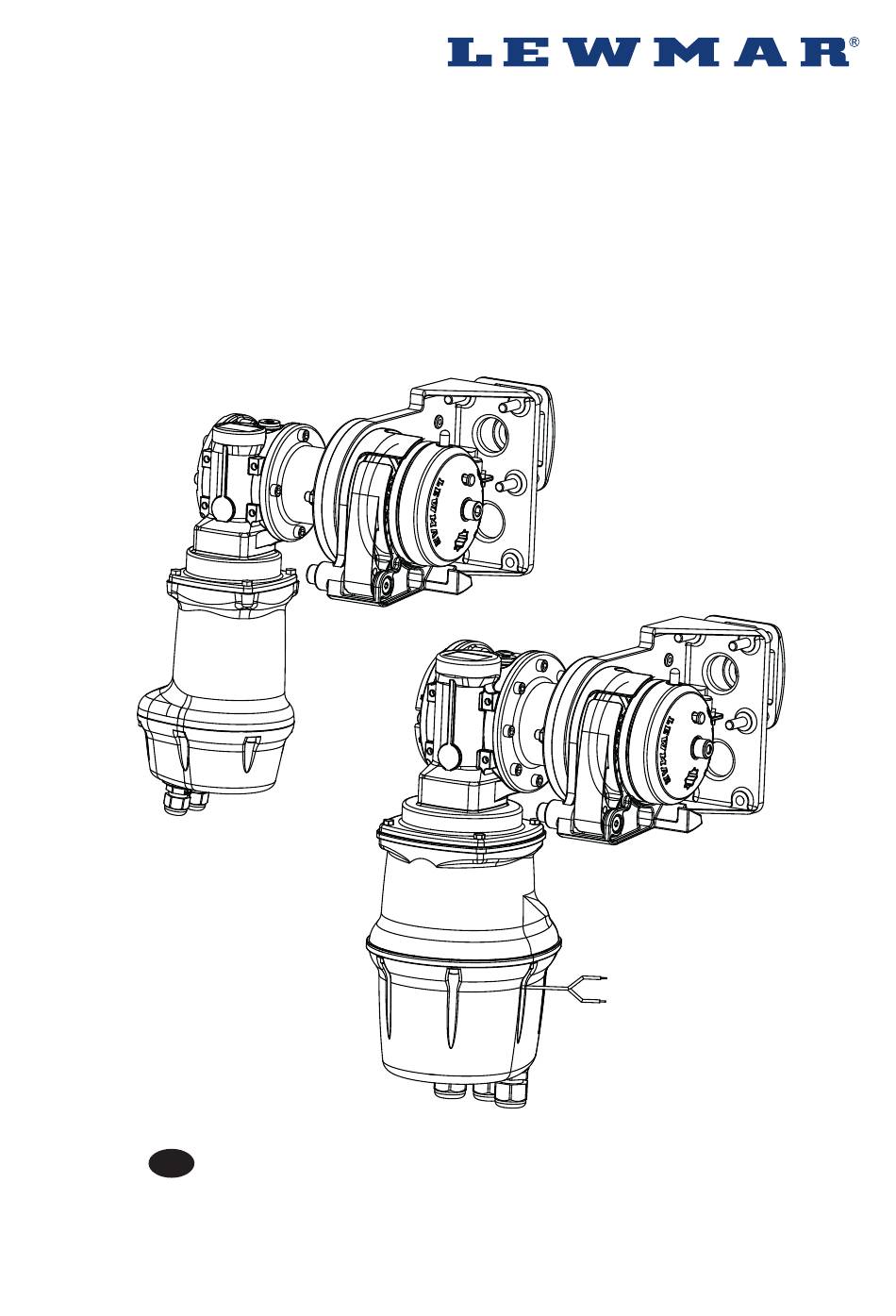

- Page 1 Gen 2 S900/S2000 Stern Windlass Product manual S900 S2000 Owners Installations, Operation & servicing manual...
-
Page 2: Product Support
Product support Lewmar products are supported by a worldwide network of distributors and Authorised Service Representatives. If you encounter any difficulties with this product, please contact your national distributor, or your local Lewmar dealer. Details are available at: www.lewmar.com CE Approvals For CE approval certificates contact Lewmar. - Page 3 2.3 Dimensions S900 190mm 40mm 140mm 71mm 144mm 22mm20mm 54MM S2000 50mm 140mm 22mm 20mm 139mm 72mm 54MM GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2...
-
Page 4: Safety Notice
• Boating, like many other activities can be hazardous. Even the correct selection, maintenance and use of proper equipment cannot eliminate the potential for danger, serious injury or death. • Lewmar windlasses are designed and supplied for anchor control in marine applications and are not to be used in conjunction with any other use. -
Page 5: Installation
”) Allen Key • 13mm (1/2”) Spanner 4.2 Accessories Use only genuine Lewmar parts and accessories to ensure top performance and eliminate the risk of voiding your warranty. For replacement parts, please visit your dealer or www.lewmar.com 4.3 Bulkhead preparation IMPORTANT - Plan location carefully at the stern of the vessel and allow for the following: 1. - Page 6 4.4 Bulkhead fitting 1. Using the template and after you have checked all the bulkhead requirements cut the following holes: • Using a 9mm (3/8”) diameter drill bit, make the 4 holes to fit M8 mounting screws. • With a 50mm (2”) diameter hole saw, make one hole for the rode to pass through. •...
- Page 7 • Mark the rode above the sensor where the wire coil (provided) will be fitted 3. Stow the anchor and cut power. • Retrieve the rode where previously marked, ready to attach the wire coil GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2...
- Page 8 4. Secure the wire coil to the anchor rode as shown in Fig 3.1 to 3.6 • Use an appropriate tool to pierce a hole through the rope. • Push the brass wire through the rope and fold it lengthwise along the rope •...
-
Page 9: Electrical Wiring
5.1 Electric cable selection Lewmar recommends the installer source and install cable that meets the requirements of the standards and regulations relevant to the installation and codes of practice. The cable table gives recommended cable sizes based on total length of cable required, from the battery, following the route of the cables. - Page 10 5.4 S900 Wiring diagram Installation instructions are supplied separately with any accessories. Wireless Remote LINK 1 2 3 4 Proxi Switch cables Switch cable Relay 4 3 2 1 ORANGE YELLOW Black BLACK GREEN White WHITE BLACK Black...
- Page 11 A1 B3 1 2 3 4 1 2 3 4 Y Splitter 1 2 3 4 (68001289) Circuit Breaker Fuse 3 A Optional Wireless Battery Control Available 12 V DC (See § 5.3) GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2...
- Page 12 5.5 S2000 Wiring diagram Installation instructions are supplied separately with any accessories. Wireless Remote LINK A2 - NEG F1 - F1 F2 - F2 1 2 3 4 Proxi Switch cables Switch cable Relay 4 3 2 1 ORANGE YELLOW Black BLACK GREEN...
- Page 13 A1 B3 1 2 3 4 1 2 3 4 1 2 3 4 Y Splitter (68001289) Circuit Breaker Optional Wireless Control Available (See § 5.3) Fuse 3 A Battery 12 V DC GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2...
-
Page 14: Power Up/Down
3. To return the windlass back to powered operation pull the locking button out disengaging the plunger. 2. When safe insert the Lewmar wrench in to the Engage the circuit breaker/isolator and press the capstan drive cap. Rotate clockwise to grip the gypsy UP/DOWN button. -
Page 15: Servicing Schedule
The screws (Fig 3), Retaining the stripper should be tightened, then backed off 1/2 turn to allow the stripper to lay loose on the gypsy. GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2... -
Page 16: Parts List
7.3 Parts list... -
Page 17: Troubleshooting
If not check the contactor coil ground circuit. If okay, replace the contactor. • Check the voltage at the motor. If voltage of at least 12.5 volts is present and the motor does not operate, the motor is defective. GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2... -
Page 18: Warranty
Lewmar grants no other warranties regarding the fitness such selection. for purpose, use, nature or satisfactory quality of the iii Lewmar shall not be liable in any way for Product failure, products. or any resulting loss or damage that arises from: ii Where applicable law does not permit a statutory or a. - Page 19 NOTES: GEN 2 S900/S2000 Stern Windlass ref B17416 iss.2...
- Page 20 +44 (0)23 9247 1841 Fax: +44 (0)23 9248 5720 Email: info@lewmar.com 351 New Whitfield Street Guilford, CT 06437 Tel: +1 203 458 6200 Fax: +1 203 453 5669 Email: info@lewmarusa.com www.lewmar.com Part No B17416 iss.2 © Copyright 2019 Lewmar Ltd. All rights reserved.
