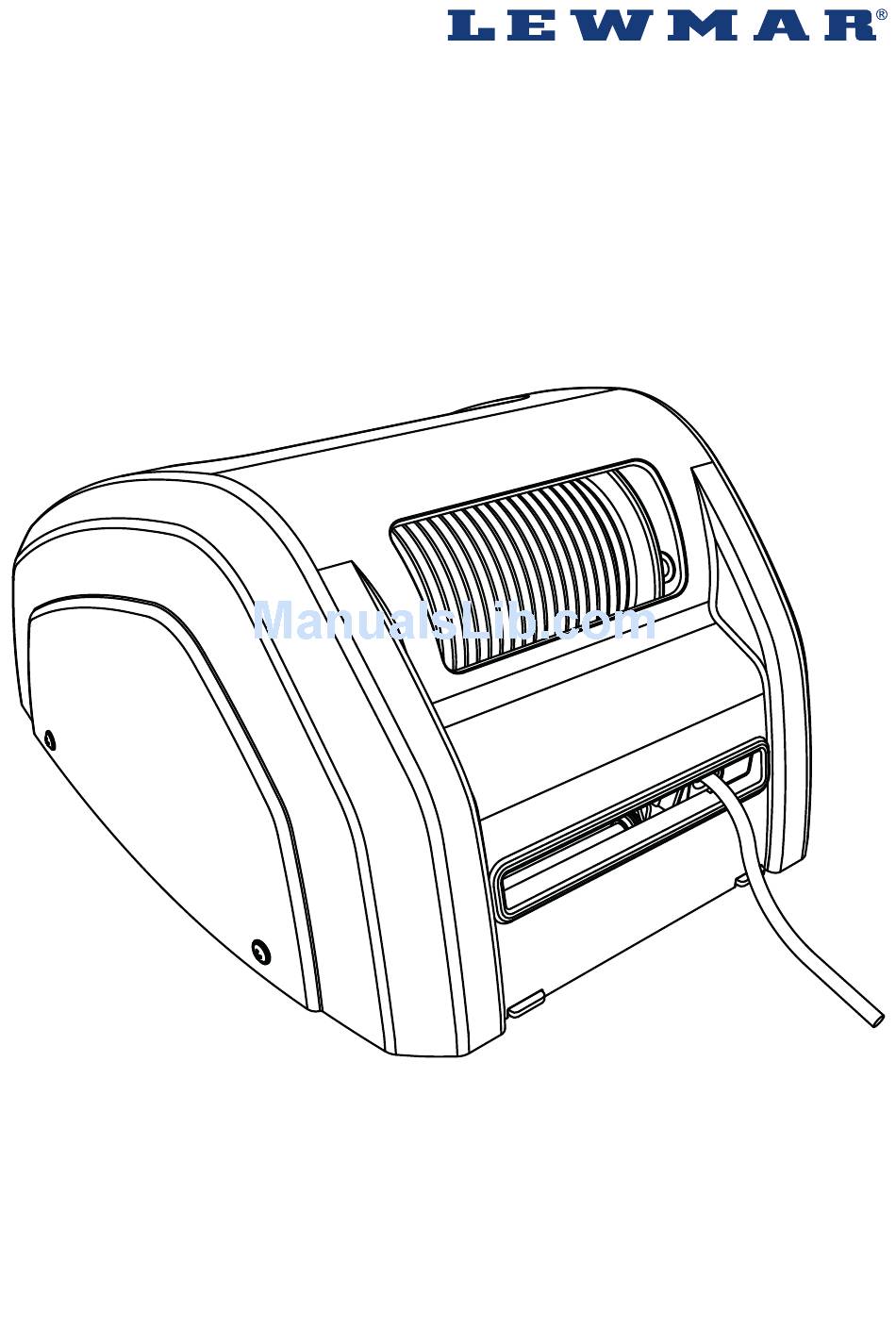

- Page 1 CRW 400 - Product Manual...
-
Page 2: Product Support
1- Introduction Thank you for choosing Lewmar. Lewmar products are world renowned for their quality, technical innovation and proven performance. With a Lewmar product you will be provided with many years of outstanding service. Product Support Lewmar products are supported by a worldwide network of distributors and Authorised Service Representatives. -
Page 3: Safety Notice
• Boating, like many other activities can be hazardous. Even the correct selection, maintenance and use of proper equipment cannot eliminate the potential for danger, serious injury or death. • Lewmar windlasses are designed and supplied for anchor control in marine applications and are not to be used in conjunction with any other use. -
Page 4: Installation
• Sealant • 4 M8 (5/16”) bolts of suitable length, washers, nuts 4.2 Accessories Use only genuine Lewmar parts and accessories to ensure top performance and eliminate the risk of voiding your warranty. 4.3 Above deck preparation IMPORTANT - Plan location carefully and allow for the following: 25mm (1”)minimum... - Page 5 • NOTE: If using silicone or other rubbery type sealant, it is advisable to allow curing of the sealant before final tightening of the mounting nuts. DO NOT use a permanent adhesive/sealant eg.5200 6mm - 1/4” Lewmar CRW400 Windlass Manual Ref B10416 iss.2...
-
Page 6: Electrical Wiring
5- Electrical wiring Lewmar recommends that the installation complies with USCG, ABYC, NMMA or other WARNING! local regulations. If you are not sure you understand these guidelines, seek professional help. 5.1 Power source The windlass must be connected to a suitable 12V DC supply. -
Page 7: Operation
Pulling the last bit of rode and anchor into the bow roller at full speed can damage the boat, bow roller and windlass. Lewmar CRW400 Windlass Manual Ref B10416 iss.2... -
Page 8: Troubleshooting
3. Rope is not laying properly / becoming tangled • This indicates that the haul speed and slider arm is not synchronised correctly for the rope. • Rope specification is crucial to the correct functioning of the unit and therefore only the genuine Lewmar CRW rope kit. -
Page 9: Parts List
9. Parts list Lewmar CRW400 Windlass Manual Ref B10416 iss.2... - Page 10 KIT NO DESCRIPTION ITEMS INCLUDED (QTY) 66000777 Side Gears Kit 11(1), 10(2). 33(2) 66000778 Worm Gear Kit 2(1), 49(1) 66000779 Slider Arm Assembly 16(1) 66000780 Drum/Rope Kit 14(1), 19(1) 66000781 Motor Kit 13(1) 66000782 PCB Kit 9(1), 22(4), 23(4), 36(4) 66000783 Cover Kit 6(2), 7(2),17(1), 28(2), 29(2)
-
Page 11: Warranty
Lewmar shall not be liable in any way for Product failure, to a period of one year from the date of purchase by or any resulting loss or damage that arises from: the end user.
