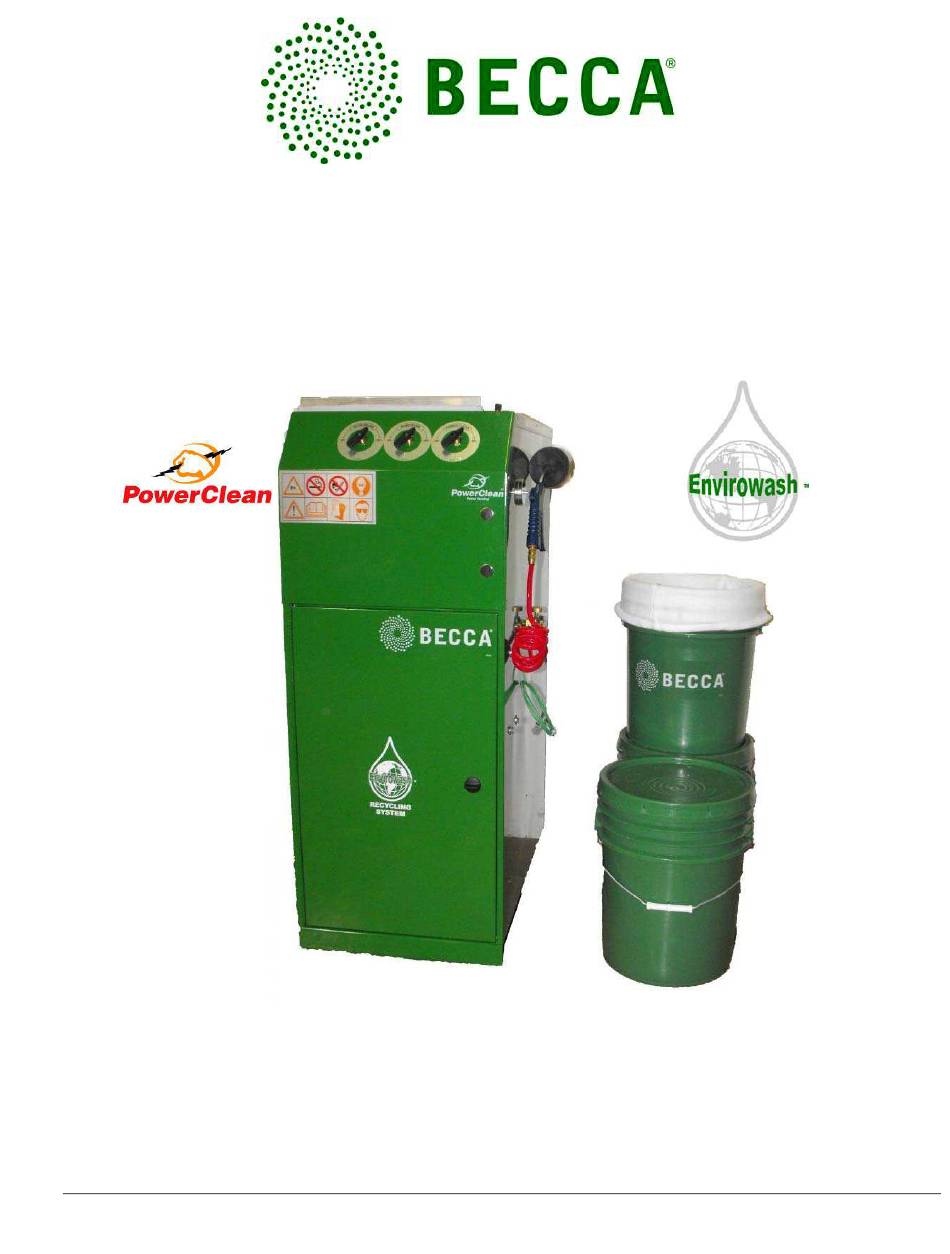

- Page 1 INSTRUCTION MANUAL E300A Waterborne Spray Gun Cleaner Featuring Clarifier Recycling System ° Warranty ° Service Parts ° Safety ° Troubleshooting Guide ° Operation ° Accessory Information May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
-
Page 2: Table Of Contents
OPERATION GUIDELINES ..................... 9 – 12 TROUBLESHOOTING GUIDE ..................13-14 MAINTENANCE SCHEDULE ..................SCHEMATIC OF UNIT ....................21-28 PARTS DESCRIPTION ....................WARRANTY INFORMATION / TECHNICAL ASSISTANCE .......... May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling... - Page 3 (no travel, diagnostic or repair labor is provided) to replace any component that is found to be defective in material or workmanship as determined by BECCA factory certified service technician. In all cases defective parts shall be returned to BECCA for inspection and final approval.
-
Page 4: Spray Gun Cleaner Specifications
SPRAY GUN CLEANER SPECIFICATIONS SPECIFICATION FOR E300A POWER CLEAN™ SPRAY GUN CLEANERS SPECIFICATIONS U.S. UNITS METRIC UNITS Weight 94 Lbs. 43 Kg Height 42.5" 1,063 mm Width 15" 375 mm Length 26" 650 mm Wash Basin Height 15" 375 mm Wash Basin Depth 20"... -
Page 5: Safety And Warning
3. Check your equipment immediately to ensure that it is free of transport damage. Report any transport damage to the carrier without delay for possible claim procedures. BECCA Inc. is not responsible for damage to equipment after it leaves our warehouse. -
Page 6: General Safety Rules
Cleaner. If in doubt, DO NOT connect the unit. Using an air-line with pressure less than the pressure specified on the nameplate is harmful to the pump. May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling... -
Page 7: Unit Use And Care
Only trained repairmen should attempt (°) ALL REPAIRS, electrical or mechanical. Contact the nearest BECCA repair service facility. Use only BECCA replacement parts, any other parts may create a hazard. - Page 8 SAFETY IS A COMBINATION OF THE OPERATOR’S COMMON SENSE, KNOWLEDGE OF THE SAFETY AND OPERATING INSTRUCTIONS AND ALERTNESS AT ALL TIMES WHEN THE UNIT IS BEING USED. May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
-
Page 9: Introduction
– The “Manual Flow Brush” valve allows you to operate the Manual Flow Brush. When engaged the pump will pull solvent through the Filtration System and clean the solvent before discharged. May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling... - Page 10 Never open the cover when the unit is washing. Wait until you have put the “Wash Basin” valve (c) to the off position. Then you can turn off the security valve and open the cover. May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 11 • Manufacturer name and address • Spray washer model and serial number Information on this identification plate must always be specified when asking for service and/or spare parts. May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 12 It is strictly forbidden to operate the Spray Gun Washer when even only one of these symbolic labels is missing from the point where the Manufacturer placed it. • Always use BECCA GENUINE REPLACEMENT PARTS during repair and maintenance. May 2012, V 1.2 BECCA INC.
-
Page 13: Troubleshooting Guide
See “Pump not Operating” section Manual Flow Brush is not operating. - Valve positions are not correct. Assure all valves are in the correct position May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling... - Page 14 If the system runs normally, the problem was caused by the filters. If the system does not run correctly, the problem was caused by the pump. May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
-
Page 15: Maintenance Schedule
Semi-Annually Change out “Used Solvent” Container. - Replace filter (824588) in back panel. - Replace Extractor/Dryer Compressed air filters (824016) - Replace BECCA Protect™ Maintenance Coating (ECP 831004) - Review Ground Clamp (823079) Annually - Replace Manual Flow Brush (824610) - Review &... - Page 16 Gun Cleaner. The frequency is determined by the amount of cleanings performed. The process is called “Flocculation”. A Flocculating material (BECCA Clarifier Packets) is added to get the paint in the dirty fluid to collect together forming larger solid masses that can be filtered out of the fluid.
- Page 17 Systems pour Cleaned Fluid into the container or Wash Basin. Replace under Cleaner Or Pour Clean liquid back into the system 6) Drop BECCA Clarifier Packets in to Flocculate Dirty Fluid. a. Light Solids requires 2-3 Packets Clarifier Clarifier b. Medium Solids requires 4-6...
- Page 18 Clean Fluid in the Paint Waste collected Collection Container by the Filter 12) You are now ready to go through the process again! May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 19 – to allow the acetone in the system to flash off Remove Acetone from the gun cleaner; replace with 5- gallons of clean WaterWave™ Solution May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 20 You are ready to use your system! SECOND FILTER CHANGE 1. Follow the above process but only replace the 75 Micron Filter You are ready to use your system! May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
-
Page 21: Schematic Of Unit
SCHEMATIC OF UNIT Hose Cleaner Controls May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling... - Page 22 Basin Brush Pump Air Inlet (Blue Line To Pump Inlet (Blue Line) LEGEND Air - Blue Polyurethane Tube Solvent - White or Black Nylon Tube May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 23 SCHEMATIC OF UNIT (continued) E300A LEGEND Air - Blue Polyurethane Tube Solvent - White or Black Nylon Tube May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 24 SCHEMATIC OF UNIT (continued) E300A (with TURBO Cleaner) May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 25 Brush/ Basin Selctor Valve Hose Cleaner Inlet To Drain Line Back of unit LEGEND Air - Blue Polyurethane Tube Solvent - White or Black Nylon Tube May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 26 SCHEMATIC OF UNIT (continued) May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 27 SCHEMATIC OF UNIT (continued) May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
- Page 28 SCHEMATIC OF UNIT (cont'd) May 2012, V 1.2 BECCA INC. Instruction Manual E300A Spray Gun Cleaner featuring Clarification Recycling...
-
Page 29: Parts Description
Optional 824453 CHARCOAL REPLACEMENT Optional OPTIONAL ACCESSORIES ECP - 5GAL 5 GALS / 20 LITERS SOLVENT CONTAINER ECP - BECCA PROTECT FILM 30” x 200’ Roll – PEEL 831004 AWAY FILM 831125 DECAL KIT 9830 831126 DECAL KIT 9830 H May 2012, V 1.2... -
Page 30: Warranty Information / Technical Assistance
WARRANTY INFORMATION / TECHNICAL ASSISTANCE The Warranty of your system begins with the Certified Start-up by your local BECCA Distributor. Make sure this is completed and you receive a copy of the Certified Start-up document. For more information, prices or technical assistance, contact your local BECCA distributor or call / fax our BECCA Care™...
