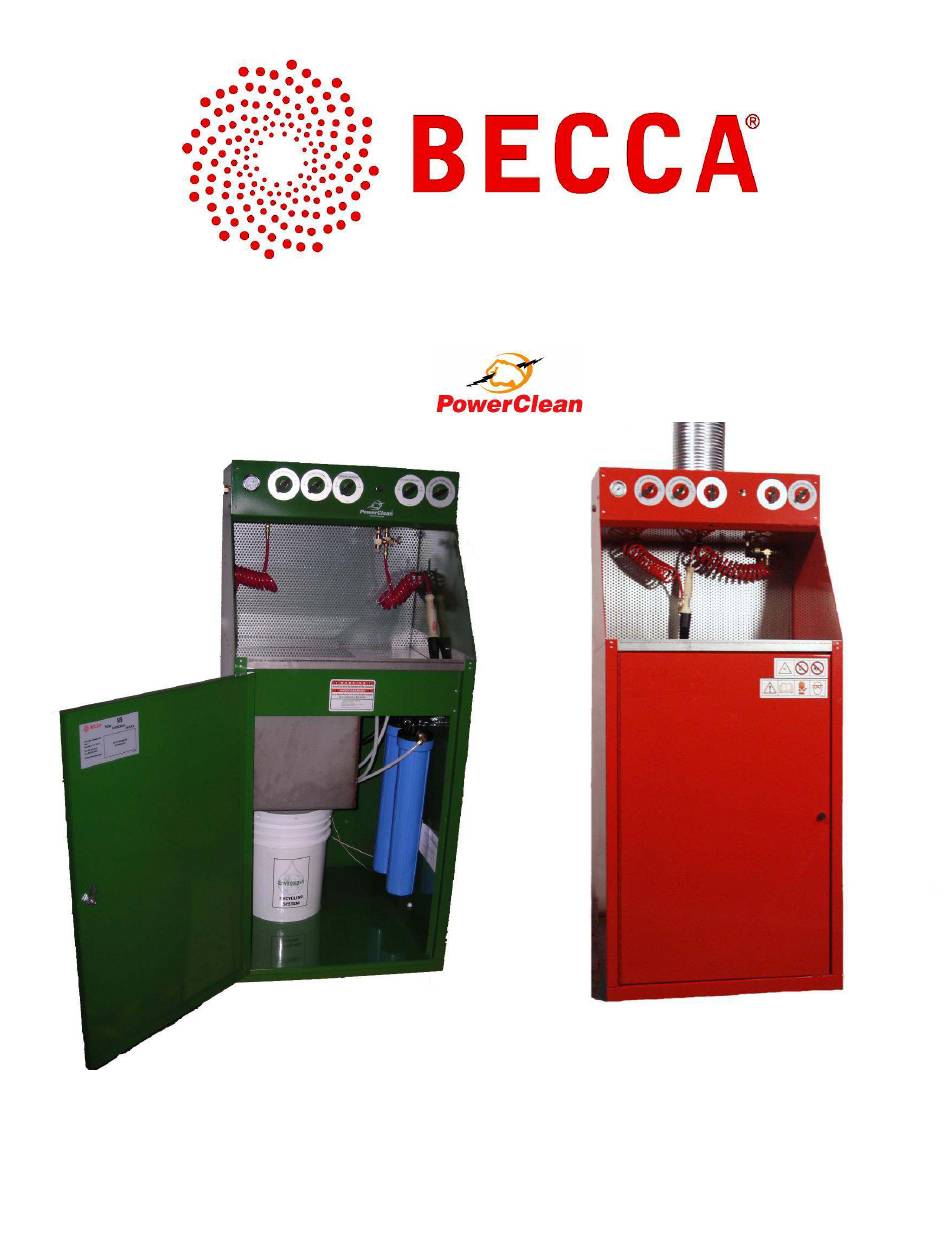

- Page 1 INSTALLATION GUIDE E700M & E800A Workstations Technical Assistance call (800) 655-5649...
- Page 2 TABLE OF CONTENTS PAGE Section 1 Tools Required ..................Parts Required ..................Un-packaging the unit ................Section 2 How to install a NEXT™ 70 or 80 Workstation ........Connecting the Filter/Regulator ............. Installing the Ground wire ..............Final connection of the NEXT™ 70 or 80 Workstation......Final Section General Arrangement ................
- Page 3 SECTION 1 Warning! Do not use electrical or TOOLS REQUIRED spark producing equipment in existing Paint Phillips Screw Driver for all Screws on the unit Mix Rooms until all potential Hazards and Flat Screw Driver or Snips for removal of Staples (vapors, material spills etc) have been Teflon Tape removed...
- Page 4 Cabinet Storage Area) and inspect the inventory list to make sure all the parts are included. If any parts are missing, contact the BECCA. Included is a Filter/Regulator. Also included is a Solvent Wash bottle. Step 3: Slide the Spray Gun Cleaner into its final position.
- Page 5 CONNECTING THE FILTER/REGULATOR Step 4: When facing the Spray Gun Cleaner look on the left side of the cabinet. Here you will find the Air Inlet. This is where you install the Regulator/Water Separator and hook up the shop air. Follow the instructions included in the Parts Kit.
- Page 6 Step 8: You are now ready to make the final connection of the compressed air to the Filter/Regulator. The Gun Washer is ready for START-UP! Please follow the BECCA “Start-up Guide” April, 2017, V 1.1 Installation Guide E700M & E800A Workstations...
- Page 7 The Warranty of your system begins with the Certified Start-up. Make sure this is completed and you receive a copy of the Certified Start-up document. For more information, prices or technical assistance, contact your local BECCA distributor or call / fax our BECCA Care™ Numbers: 2010 Cobb International Blvd Ste H...
