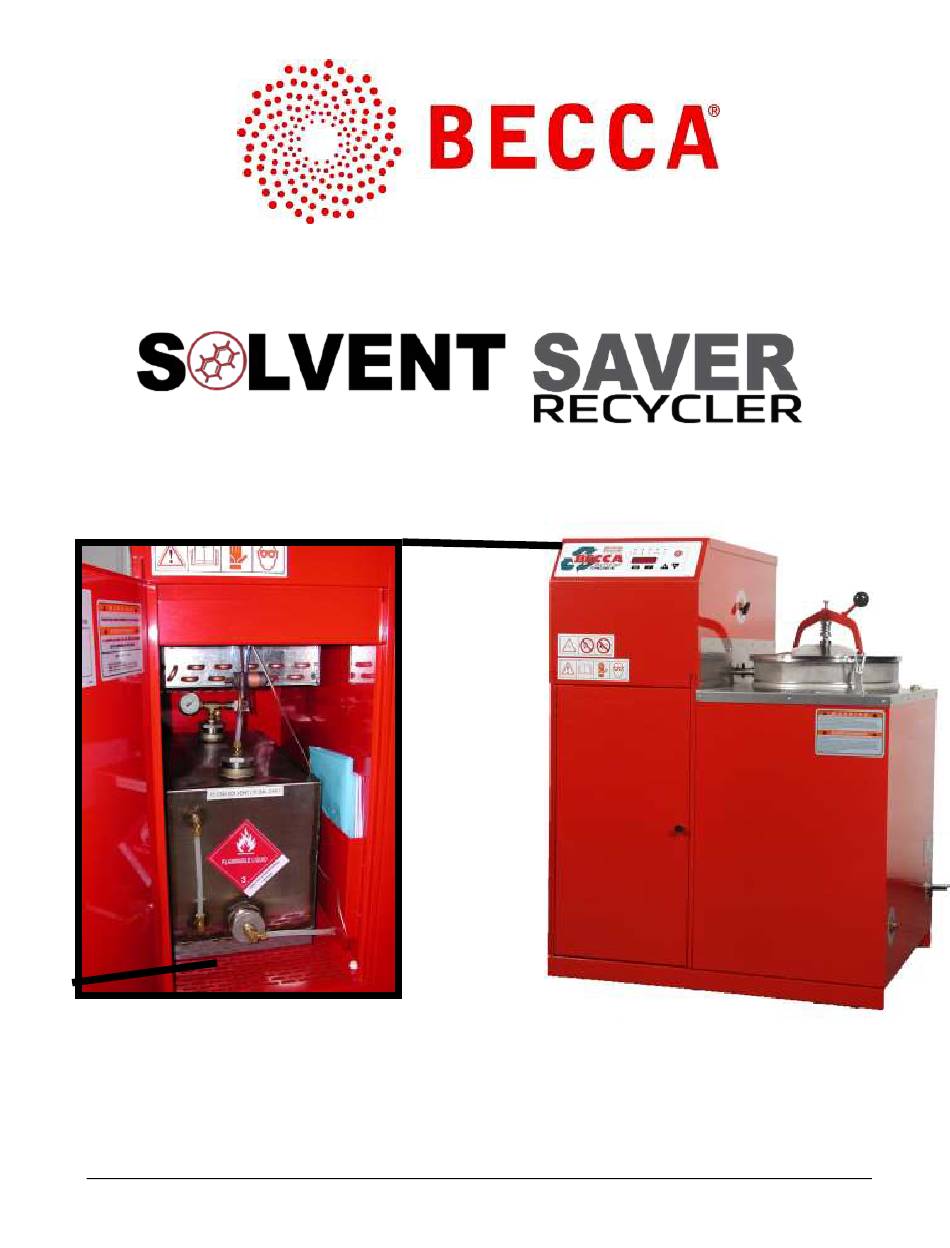

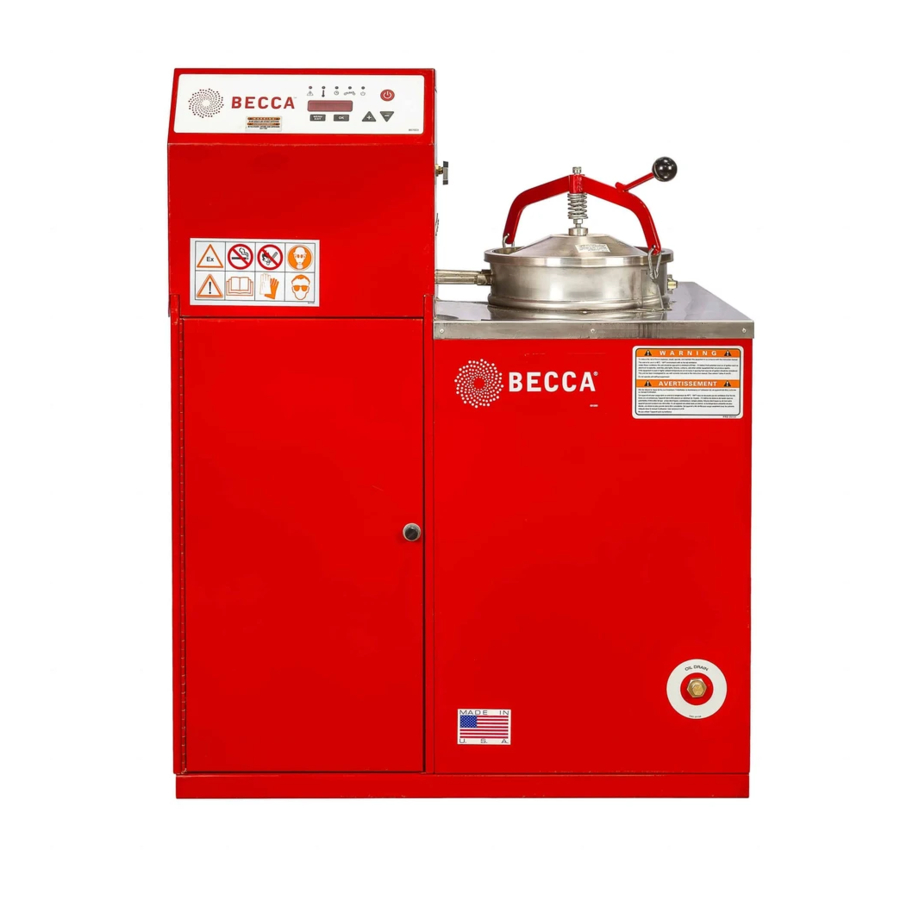

- Page 1 INSTRUCTION MANUAL VACUUM ASSIST (For Solvent Recyclers) ° Warranty ° Service Parts ° Safety ° Troubleshooting Guide ° Operation ° Contact Information 1-800-655-5649 Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
-
Page 2: Table Of Contents
OPERATING METHOD ....................14 - 15 VACUUM SYSTEM INSTALLATION ................STARTING PROCEDURE ....................VACUUM SYSTEM DIAGRAM ..................SERVICE PART NUMBERS FOR VACUUM ASSIST ............ IMPROTANT NOTICE ....................TROUBLESHOOTING GUIDE ..................CONTACT INFORMATION .................... Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist... - Page 3 During months 1 through12 BECCA will repair or replace any component including labor that is found to be defective in material or workmanship as determined by BECCA factory certified service technician.
- Page 4 Acoustic Pressure Level LpAm ISO-3746 68.4 dB(A) 68.4 dB(A) Acoustic Power Level LpAm ISO-3746 79.2 dB(A) 79.2 dB(A) Vacuum Tank Material Stainless steel Stainless steel Warranty 24 months 24 months Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
-
Page 5: Safety And Warning
3. Check your equipment immediately to ensure that it is free of transport damage. Report any transport damage to the carrier without delay for possible claim procedures. Becca Recycling Technologies Inc. is not responsible for damage to equipment after it leaves our warehouse. -
Page 6: General Safety Rules
Solvent Recycler. If in doubt, DO NOT plug in the unit. Using an electric line outlet with power less than the power specified on the nameplate is harmful to the motor. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist... -
Page 7: Unit Use And Care
Only trained repairmen should attempt (°) ALL REPAIRS, electrical or mechanical. Contact the nearest Becca repair service facility. Use only Becca replacement parts, any other parts may create a hazard. - Page 8 THINK SAFETY! SAFETY IS A COMBINATION OF THE OPERATOR’S COMMON SENSE, KNOWLEDGE OF THE SAFETY AND OPERATING INSTRUCTIONS AND ALERTNESS AT ALL TIMES WHEN THE UNIT IS BEING USED. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 9 330°F) and can be extremely volatile. If repairs are necessary shut off the power supply IMMEDIATELY. Do not smoke, cause sparks or use open flames near the recycler or vacuum assist units. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
-
Page 10: Vacuum Distillation Princilples
2. When processing chlorinated solvents. Atmospheric pressure distillation allows only a partial recovery of these solvents; at the end of the process the residues will still contain 20% of solvents. VACUUM DISTILLATION PRINCIPLES (cont’d) Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist... - Page 11 A. Boiling range of clean perchloroethylene at atmospheric pressure: 1,000 hPa. Temperature °F 100% Quantity B. Boiling range of clean perchloroethylene at vacuum condition: 223 hPa. Temperature °C 100% Quantity VACUUM DISTILLATION PRINCIPLES (cont’d) Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 12 GRAPHIC (C) Once a temperature of 302°F (150°C) is reached, which is the critical non-supportable temperature, only 80% of perchloroethylene will be recovered. VACUUM DISTILLATION PRINCIPLES (cont’d) GRAPHIC (D) Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 13 1. Yields 100%. 2. If the residual oil is contaminated with more than 2% of solvent, those oil waste-recycling companies authorized for the waste collections will not accept it. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 14 In this case the process of the solvent reducers as mentioned on page 7 (1 & 2), with distillation temperatures between 140°-392°F (60°-200°C) , and high levels of liquid products. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
-
Page 15: Operating Method
40°-392°F (60°-200°C), and high levels of solid products. VACUUM SYSTEM INSTALLATION Placing your BECCA VACUUM ASSIST SYSTEM in accordance with the same procedures as the Solvent Recycler. (See page 7 of the Solvent Recycler Manual) Use the VACUUM ASSIST INSTALLATION GUIDE. - Page 16 VACUUM ASSIST SCHEMATIC Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 17 VACUUM ASSIST SCHEMATIC (CONTINUED) Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 18 VACUUM ASSIST DIAGRAM (CONTINUED) Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
- Page 19 COMPRESSION FITTING 824549 PUMP 824002 VACUUM GENERATOR 824559 PUSH IN FITTING 824602 BRASS (T) 824001 VACUUM GAUGE 823131 COMPRESSION FITTING 824571 POLYURETHANE TUBING BLUE 824512 NYLON TUBING 824003 SOLENOID VALVE Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist...
-
Page 20: Improtant Notice
DO NOT MISHANDLE THE COVER LOCKING SYSTEM OR LOCK THE COVER IN ORDER TO AVOID LEAKING. 6. Clean the diathermic oil expansion vessel only with a "wet" rag to avoid generating sparks. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist... -
Page 21: Troubleshooting Guide
- Separate the distillation phase than pigments. the drying ones. At the end of the distillation discharge the distillate tank and proceed to dry. At the end of drying wash the tank. Feb 2021, Rev. 1.0 BECCA INC. Instruction Manual Vacuum Assist... - Page 22 WARRANTY INFORMATION / TECHNICAL ASSISTANCE The Warranty of your system begins with the Certified Start-up by your local Becca Distributor. Make sure this is completed and you recieve a copy of the Certified Start-up document. For more information, prices or technical assistance,...
