INSTRUCTION MANUAL

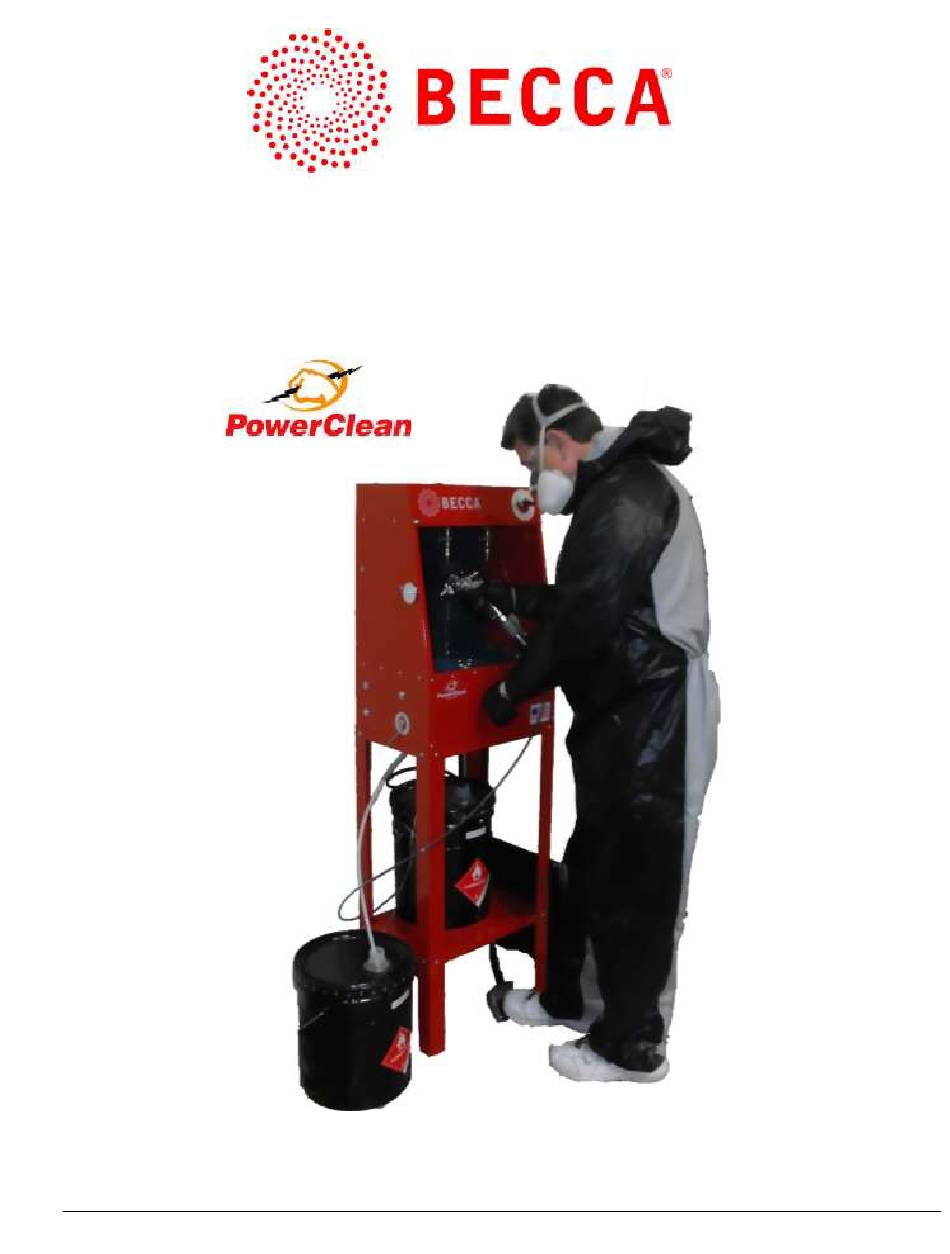

S50M Solvent Spray Gun Cleaner
° Warranty
° Safety
° Operation
Aug 2011, V 1.0
° Service Parts
° Troubleshooting Guide
° Accessory Information
BECCA INC.
Instruction Manual S50M Spray Gun Cleaner
1
