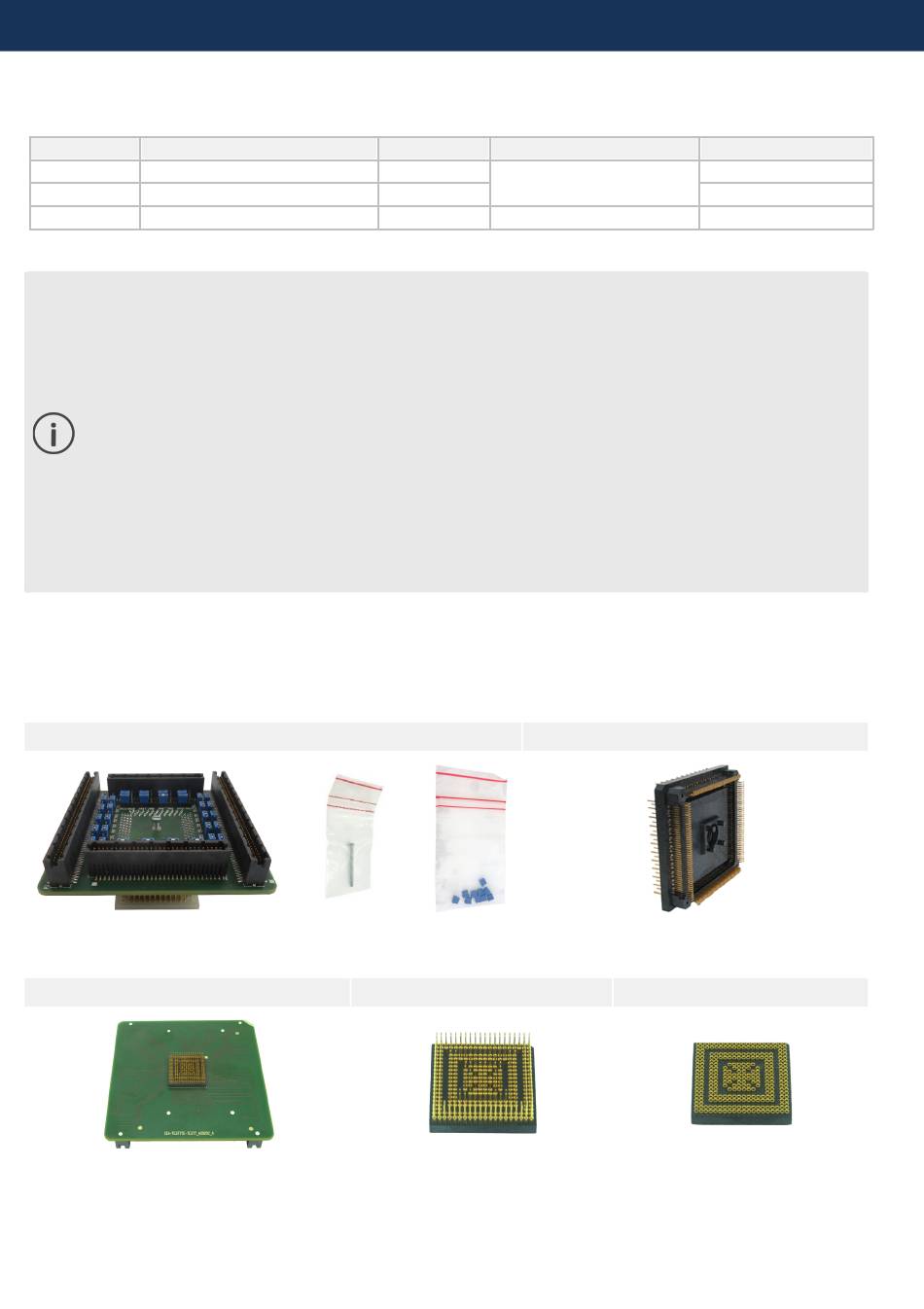

Adaptation packages content

Conversion boards connect between the Emulation Adapter and the matching Solder part which
is being soldered on the Target side.
Pin number
144 IEA-SPC58NH-TQ144
176 IEA-SPC58NH-TQ176
302 IEA-SPC58NH-BGA302
BGA Adaptation: The Target can have electronic components placed around the Micro-
controller within the Emulation Adapter (EA) "ground floor", which impede connecting
the EA to the Target. In such cases the distance of the EA from the Target can be op-
tionally increased in steps of 3.25 mm by inserting the optional Extender. Not more
than two Extenders should be used since every connector affects signal integrity.
·
With no Extender the lowest point of the EA is approx. 4.35 mm away from the Tar-
get.
·
With one Extender the lowest point of the EA is approx. 7.6 mm away from the Tar-
get.
·
With two Extenders the lowest point of the EA is approx. 10.85 mm away from the
Target.
Note that by adding the Extender or two, makes the whole setup less robust. Use cau-
tion with Extenders to prevent breaking of the hardware setup or just part of it.
Fixed Adaptation
The adaptation is elivered with a slot screw, which can be used to achieve a more solid and
stable fixing of the Conversion board and the Solder part.
Conversion board
BGA Adaptation
Conversion board
Conversion board Type Extender
Fixed
Fixed
Fixed (BGA) IA302LFBGA-EXTENDER
Extender (optional)
Solder part
IA144TQ-SOLDER
IA176TQ-SOLDER
IA302LFBGA-SOLDER
Solder part
Solder part
