Martec Phoenix Mini Installation Instructions

INSTALLATION INSTRUCTIONS AND HOLE-CUTTING TEMPLATE
Phoenix Mini Bathroom 3-in-1 Heater
Halogen Lamp / LED Light / Exhaust Fan
IMPORTANT
We strongly recommend that you read this manual carefully before
installation.
Installation MUST be carried out by a qualified and licensed
This unit must be installed to comply with the appropriate
electrician.
council regulations
and the Australia and New Zealand wiring rules
AS/NZS3000:2000 or latest edition thereof. The main supply and
inter-connecting cables required for installation of this unit are not
included.
1. Use this heater only as described in this manual. The manufacturer
does not recommend any other use as this may cause
or injury to persons. If you have questions,contact Martec.
2. Make sure the mains is off before the installation.
3. When cutting into the wall, do not damage electrical wiring and other
hidden utilities.
4. The heater must be properly grounded.
5. The heat lamp and glass shield are hot when in use. Do not touch the
heat lamp and glass shield with any part of your body when it is on.
6. To avoiding any dangerous gas leaking into your bathroom, the venti-
duct of the heater must not be laid together with the ventiduct of air-fuelled
water heater or other open-fire appliances into the same flue.
7. The power cable must stand a minimum 10A load.
8.The appliance shall, under no circumstances, be covered with insulating
material or similar material.
9. Regulations concerning the discharge of air must be fulfilled.
10. Joists, beams and rafters shall not be cut or notched to install the
appliance.
11. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
12.The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
13.Information and warning:
a)The minimum clearance distance from the top of the luminaire to any normal-
ly flammable building element: 20mm
b)The minimum clearance distance from the top of the luminaire to any building
insulation: 20mm
c)The minimum clearance distance from the side of the luminaire to any
normally flammable building element: 250mm
d)The minimum clearance distance from the side of the luminaire to any build-
ing insulation: 250mm
14. The heater must not be located immediately below a socket-outlet.
15. The product must not be installed within 1m to curtains and other combusti-
ble materials.
16. The product must be installed at least 1.8m above the floor.
17.The heater is to be installed so that switches and other controls cannot be
touched by a person in the bath or shower.
Read and save these instructions!
®
18.WARNING —THIS LUMINAIRE IS NOT SUITABLE FOR INSTALLATION IN
LOCATIONS WHERE THERMAL INSULATION IS PRESENT,OR MAY REASON-
ABLY BE EXPECTED TO BE INSTALLED IN THE FUTURE, OR WHERE THERE
IS A LIKELIHOOD OF OTHER COMBUSTIBLE MATERIAL,E.G.LEAVES OR
VERMIN DEBRIS,ETC.COLLECTING ON OR AROUND THE LUMINAIRE.
This appliance is with DO-NOT-COVER LUMINAIRES.
IMPORTANT INFORMATION BEFORE INSTALLATION
1.The unit should not be installed directly above a shower or bathtub. The
unit must not be installed in a position where water may splash onto the unit.
2. The unit must not be installed beneath a fixed socket or power outlet.
fire, electric shock,
3. The unit must be installed on flat level surface. Do not mount it on a sloping
ceiling or a vertical wall.
4. The heat lamp is most effective when you are standing directly beneath
them, so generally the unit would be mounted a place where you would stand
to dry yourself.
5. For the exhaust fan to work efficiently, replacement air of a volume equiva-
lent to what is being extracted must be able to enter the room.
NB: Generally, this air would be drawn under the door, or through a slightly
open window. If the room is airtight, the fan will function poorly.
6. Before commencing any cutting, check in the ceiling space that there are
no obstructions such as ceiling joists and that there is sufficient height clear-
ance for the housing. Check that the electrical wiring can be routed from the
wall switches to the mounting location.
INSTALLATION
1.Cutting a vent
Locate a vent position (above the ceiling) on the wall, and then cut a 130mm
diameter hole at this very position.
2. Ducting
Put one end of the 125mm diameter ventiduct into the vent hole and seal
space around the hole using a suitable sealant and cowling where necessary.
Note: The length of each duct is 1.5m, therefore ensure the distance from the
centre of installation position is within 1.5m to the outside vent.
3. Suitable location
For the unit to perform better,recommended installation height is 2.1m from
the ground.
4. Prepare the ceiling
Select the mounting position for the unit. Before commencing any cutting,-
check in the ceiling space that there are no obstructions such as joints
and that there is sufficient height clearance for the housing. NB: Use this card-
board as cutting template (390mm × 325mm).
Minimum installation area is 250mm fron the edge of a wall and 220mm
ceiling clearance.

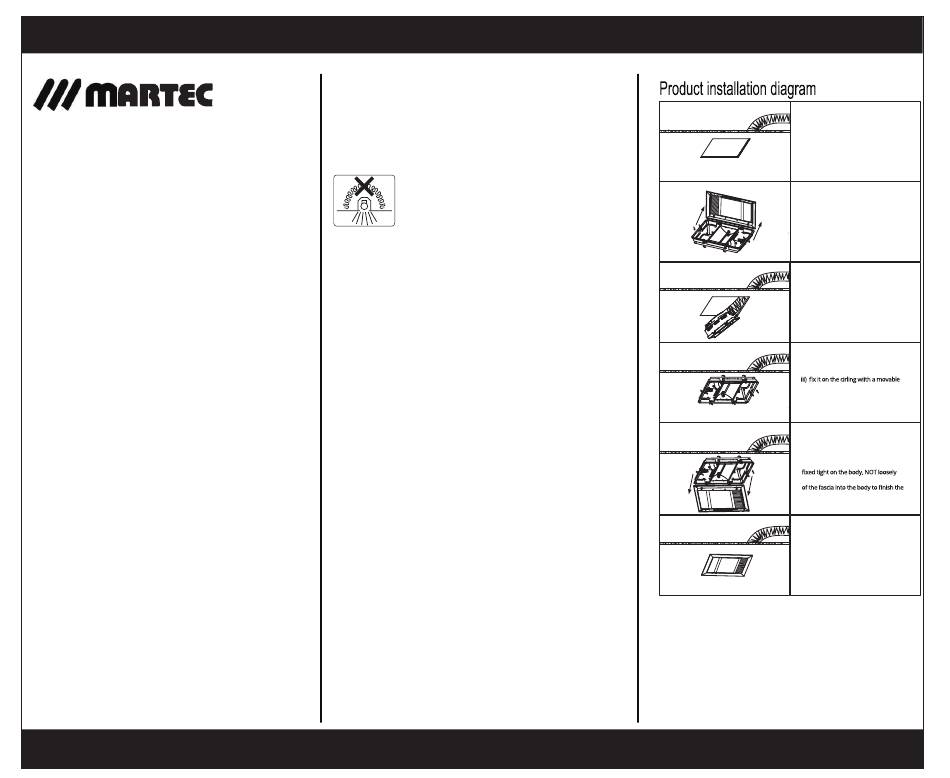

1. Cut hole on the ceiling and install
aluminium duct and the exterior grille.
2.
Open the fascia from the side with
installation arrows, disconnect both
LED cables and remove the fascia.
Hinged
3. Connect the aluminium duct to the
exhaust outlet, complete the wiring as
illustrated on the other side on this
manual.
4. Put the plastic body in the ceiling hole.
i) put the exhaust outlet in
ii) push the whole body in
buckle
5. Install one side of the fascia by
inserting springs into the small hole
on the edge of the body. Then, connect
both waterproof wiring connectors of the
LED lights, make sure both cables are
hanged. Insert springs on the other side
Hinged
installation. Shake the fascia softly to
secure the installation.
6. Complete the installation and turn
the power back on.
Please use this card as hole cutting template 390x325mm.
