U N O 2 7 5 W S i n g l e L a m p H e a t e r I n s t a l l a t i o n G u i d e
Thanks for choosing our UNO series..
We strongly recommend that you read this manual carefully before installation.
Model Parameter:
MBHU1LW
275W Single Lamp Heater White
Part List
Qty 1x Single lamp heater
Qty 1x 275W radiant heat lamp
Features
•
Attractive, flush fitting units that scarcely protrude below the
ceiling
•
Allows installation where the heat is required; above the
drying area or above the vanity or elsewhere depending on
the bathroom layout
•
A semi-gloss white powder-coated rim surrounding the
incandescent mirror reflector

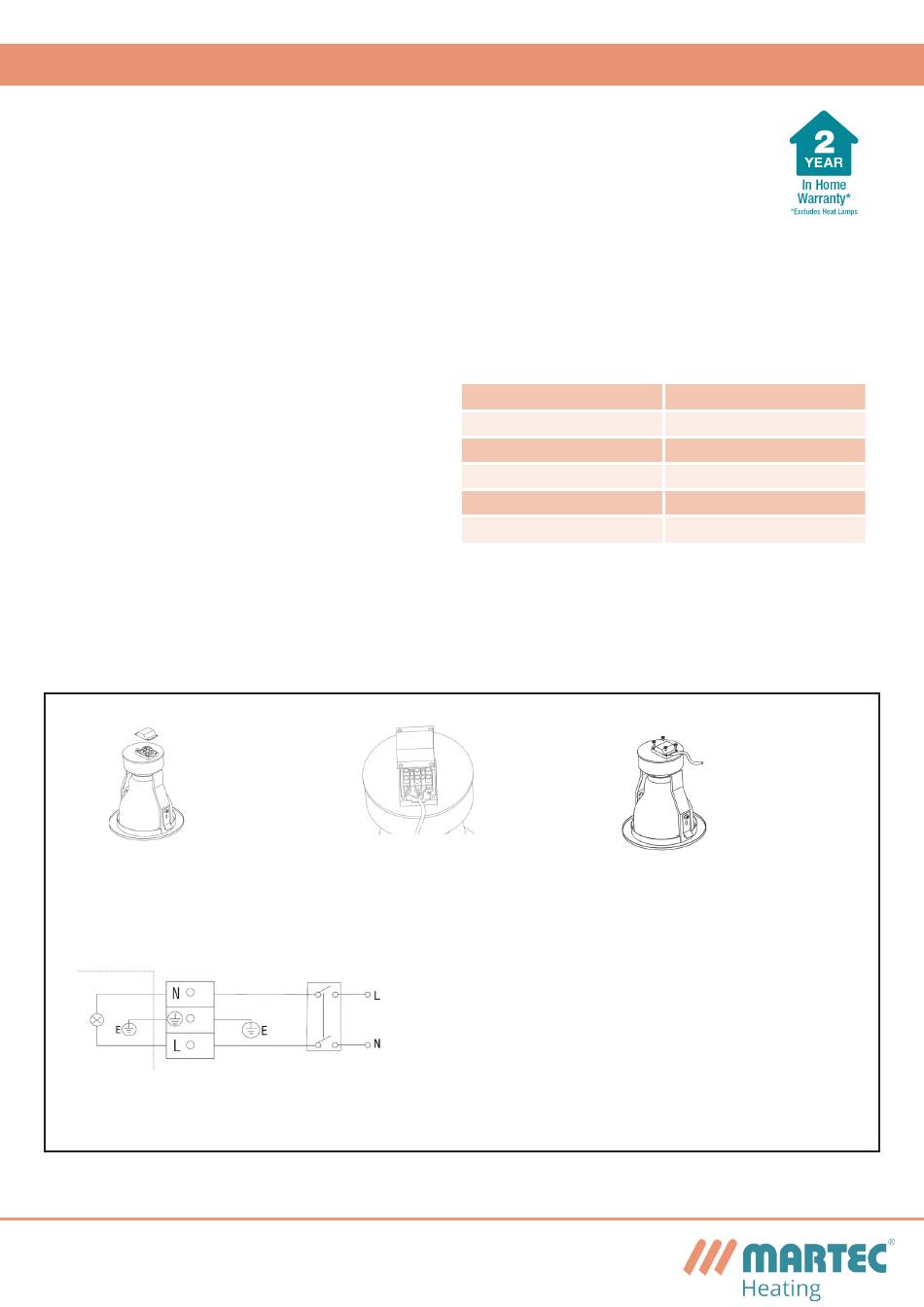

Wiring
Fg.1
Remove cover from terminal
block.
Wiring Diagram
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
Specifications
Voltage
Rating
Hole cut-out
Dimensions
Projection below ceiling
Projection above ceiling
NB: The single lamp heater is designed for installation in the ceiling of
toilets and bathrooms. It provides both light and heat. Two or more
heaters may be required for large bathrooms.
Fg.2
Insert active, neutral and
earth wires and tighten the
terminal screws.
220V-240V 50Hz
275W max
145mm(6")
Dia 180mm
25mm
214mm
Fg.3
Replace cover from terminal
block.
