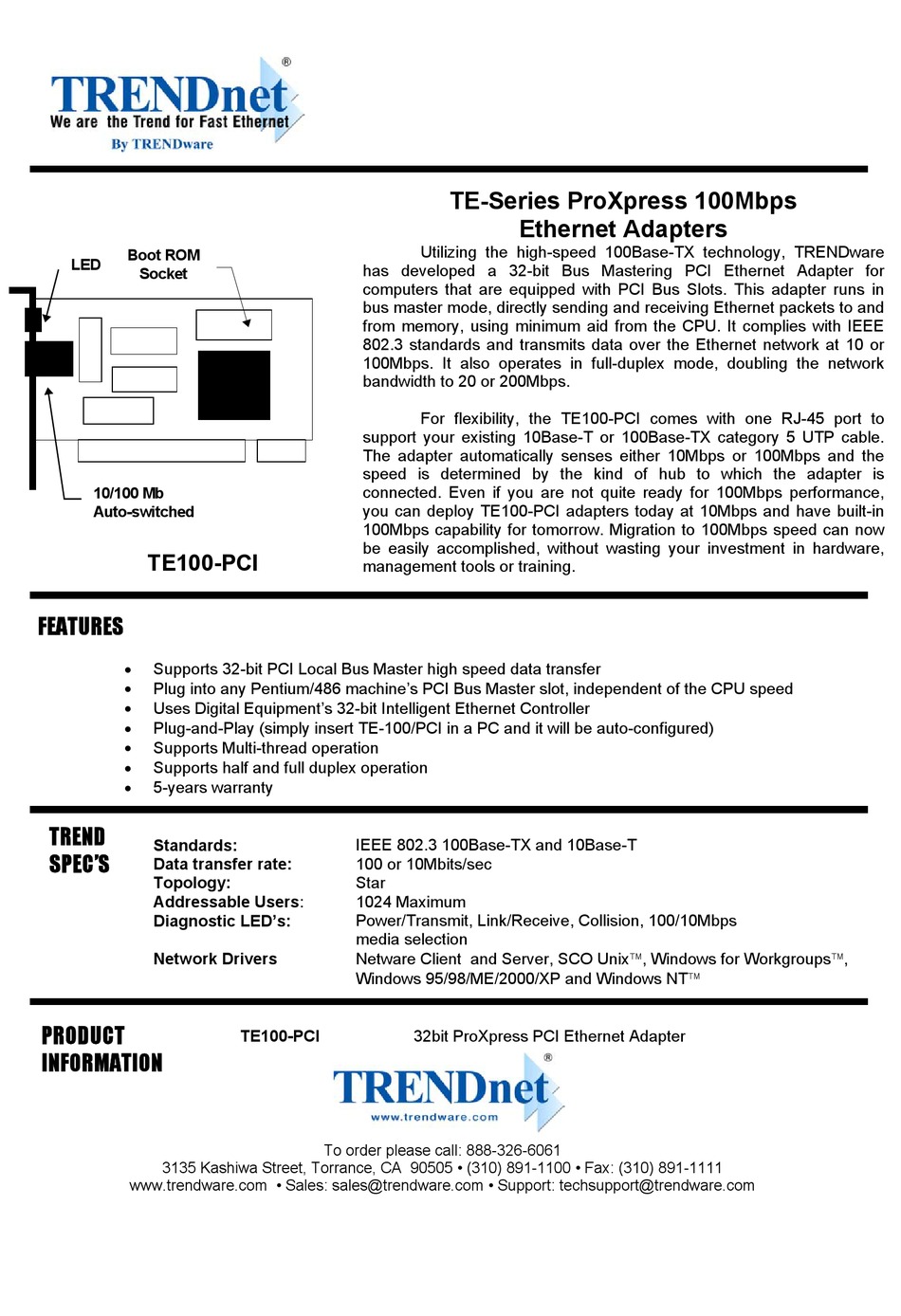

TRENDnet TE100-PCI Product Information

Boot ROM
LED
Socket
10/100 Mb
Auto-switched
TE100-PCI

FEATURES

•
Supports 32-bit PCI Local Bus Master high speed data transfer
•
Plug into any Pentium/486 machine's PCI Bus Master slot, independent of the CPU speed
•
Uses Digital Equipment's 32-bit Intelligent Ethernet Controller
•
Plug-and-Play (simply insert TE-100/PCI in a PC and it will be auto-configured)
•
Supports Multi-thread operation
•
Supports half and full duplex operation
•
5-years warranty
TREND

Standards:

SPEC'S
Data transfer rate:
Topology:
Addressable Users:
Diagnostic LED's:

Network Drivers

PRODUCT
INFORMATION
3135 Kashiwa Street, Torrance, CA 90505 • (310) 891-1100 • Fax: (310) 891-1111
www.trendware.com • Sales: sales@trendware.com • Support: techsupport@trendware.com
has developed a 32-bit Bus Mastering PCI Ethernet Adapter for
computers that are equipped with PCI Bus Slots. This adapter runs in
bus master mode, directly sending and receiving Ethernet packets to and
from memory, using minimum aid from the CPU. It complies with IEEE
802.3 standards and transmits data over the Ethernet network at 10 or
100Mbps. It also operates in full-duplex mode, doubling the network
bandwidth to 20 or 200Mbps.
support your existing 10Base-T or 100Base-TX category 5 UTP cable.
The adapter automatically senses either 10Mbps or 100Mbps and the
speed is determined by the kind of hub to which the adapter is
connected. Even if you are not quite ready for 100Mbps performance,
you can deploy TE100-PCI adapters today at 10Mbps and have built-in
100Mbps capability for tomorrow. Migration to 100Mbps speed can now
be easily accomplished, without wasting your investment in hardware,
management tools or training.
IEEE 802.3 100Base-TX and 10Base-T
100 or 10Mbits/sec
Star
1024 Maximum
Power/Transmit, Link/Receive, Collision, 100/10Mbps
media selection
Netware Client and Server, SCO Unix, Windows for Workgroups,
Windows 95/98/ME/2000/XP and Windows NT
TE100-PCI
To order please call: 888-326-6061
TE-Series ProXpress 100Mbps
Ethernet Adapters
Utilizing the high-speed 100Base-TX technology, TRENDware
For flexibility, the TE100-PCI comes with one RJ-45 port to
32bit ProXpress PCI Ethernet Adapter
