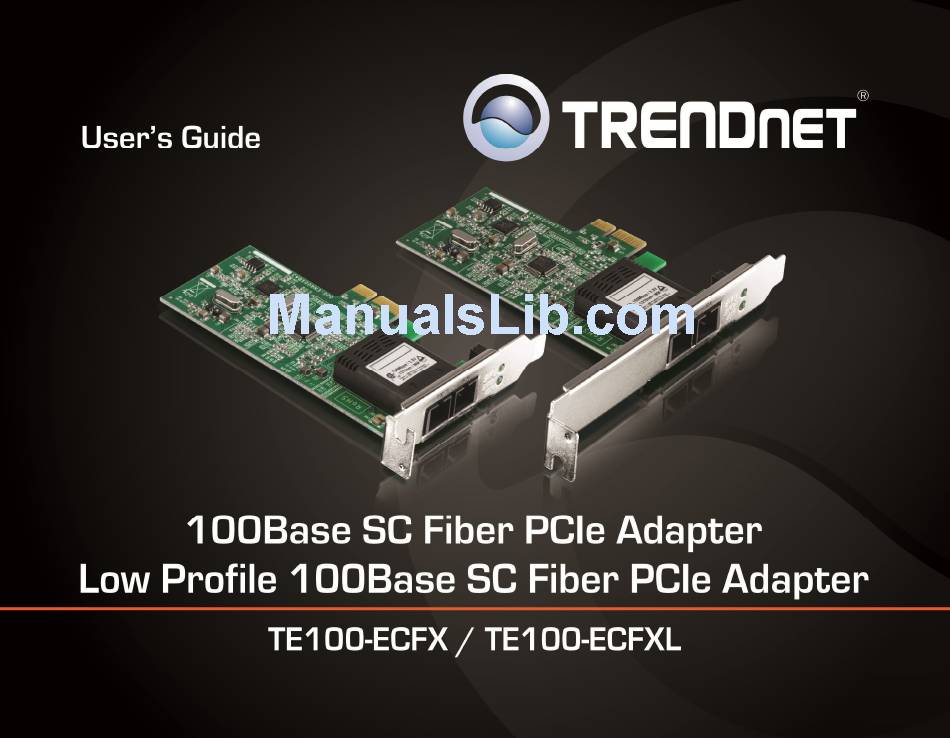

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Driver -> Advanced Setting ................... 11 Diagnostics ......................12 Diagnostics -> Send and Receive ................12 Statistics ....................... 12 Cable ........................12 Wake On LAN ......................13 EEE Status ......................13 Technical Specifications ................. 13 Troubleshooting..................14 © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

    Product Overview Features The 100Base SC Fiber PCIe Adapter, model TE100-ECFX, or the Low Profile 100Base SC Fiber PCIe Adapter, Model TE100-ECFXL, provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connection for distances of up to 2 kilometers (1.2 miles).

  • Page 4: Product Hardware Features

    Network connection established. (green) LNK/ACT Transmitting or receiving data. Blinking (Link/Activity) (green) ACT stands for ACTIVITY. No connection/activity Steady 100Mbps. (green) (Speed) 10Mbps. TE100-ECFXL Low Profile Bracket: used for low profile computer  © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 5: Application Diagram

    5. Carefully insert the PCI Express adapter into the slot and ensure the adapter is firmly seated in the slot. 6. Secure the PCI Express adapter with the screws that you saved in step 4. Replace the PC cover © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 6: Fiber Cable

    4. Windows will automatic install the driver. fiber-based Ethernet network, which contributes to its optimal performance. 5. Check the LNK (link) LED on the TE100-ECFX or TE100-ECFXL. The LNK LED will Please ensure that you installed the TE100-ECFX or TE100-ECFXL into the computer be steady on to indicate the network connection is establish.

  • Page 7: Installation - Software

    Driver Windows 8 / 7 / Vista / 2008 Server The CD-ROM includes the latest drivers for TE100-ECFX or TE100-ECFXL. It is highly recommend that you install the drivers from the CD-ROM. 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program.
  • Page 8 TRENDnet User’s Guide 4. Click Next Windows 2003 / XP 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. 5. Click Finish 2. Click the Install Drivers © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 9 TE100-ECFX / TE100-ECFXL TRENDnet User’s Guide 3. Click Next 5. Click Finish 4. Click Install © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 10: Diagnostic Utility

    Information, VLAN ID settings, Driver property settings, Diagnostics function, Statistics, Cable analysis, and Wake On LAN function. 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. 3. Click Next © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 11 6. The diagnostic utility will automatically pop up the installation has finished. 7. You can go to Programs  Realtek  Realtek Ethernet Diagnostic Utility to launch the Diagnostics Utility manually. 5. Wait while the Diagnostic Utility install on your computer © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 12: Configuration Of Diagnostic Utility

    This page displays working parameters for this network adapter. User can modify these parameters here. VLAN This page shows information about VLANs on current selected network adapter. User can add or remove VLAN here. The user can change the VLAN ID of existing VLAN. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 13: Diagnostics

    Two computers with adapters in the same LAN can perform send & receive experiment This page estimates the length of the network (RJ-45) cable that is connected to the with broadcast packet here. network adapter. This feature is not supported on the TE100-ECFX, TE100-ECFXL. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 14: Wake On Lan

    This page shows information about EEE status. User can change the current LP status to minimize system power consumption. Dimension TE100-ECFX : 117 x 107 x 57 mm (4.6 x 4.2 x 2.2 in) TE100-ECFXL: 80 x 107 x 57 mm (3 x 4.2 x 2.2 in.) Weight TE100-ECFX : 45g (1.6 oz.)

  • Page 15: Troubleshooting

    3. Why the Windows has automatic install the driver and I need to install the diver from the CD-ROM again. Windows has built-in drivers. However, the CD-ROM have update driver to support the adapters. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 16 USA are responsible for custom charges, including but not Go to http://www.trendnet.com/gpl http://www.trendnet.com Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 17 Limited Warranty TRENDnet User’s Guide These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go http://www.gnu.org/licenses/gpl.txt http://www.gnu.org/licenses/lgpl.txt specific terms of each license. V1.0R /10.05.2012...
