PRODUCT GUIDE:
EYEDRO-HOME
AND
EYEDRO5-EHEM1
SINGLE-PHASE ELECTRICITY
MONITORING SYSTEM
Revision: 230628

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EYEDRO-HOME and is the answer not in the manual?

Questions and answers

Summary of Contents for Eyedro EYEDRO-HOME

  • Page 1 PRODUCT GUIDE: EYEDRO-HOME EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM Revision: 230628...
  • Page 2: Table Of Contents

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM CONTENTS Introduction..............................4 Overview ..............................4 Important Safety Information for Eyedro Monitoring Products ..............5 Additional Safety Information for Electricity Monitoring Products.............. 6 Box Contents (By Product)..........................7 EYEDRO-HOME ............................7 EYEDRO5-EHEM1 ............................ 8 Hardware Installation ............................
  • Page 3 PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM Procedure (Wi-Fi Installations) ......................17 Internet Connection ............................. 18 Provisioning Wi-Fi (Eyedro-Home Only) ....................19 Materials You Will Need........................19 Tools You Will Need ..........................19 Procedure (Wi-Fi Devices Only) ......................19 Tips ..............................
  • Page 4: Introduction

    MONITORING SYSTEM INTRODUCTION OVERVIEW Thank you for choosing the Eyedro Electricity Monitoring System. You have taken the first step towards better awareness of where your energy is being consumed. Awareness can lead to energy savings, cost savings and peace of mind.
  • Page 5: Important Safety Information For Eyedro Monitoring Products

    SERVICEABLE. Please contact The Eyedro Monitoring products (and all components) are Eyedro Green Solutions Inc. if any component appears damaged or faulty. DO NOT open the case of the unit or tamper with any of the internal or external components.
  • Page 6: Additional Safety Information For Electricity Monitoring Products

    It is important that you observe some simple safety precautions when installing Eyedro Electricity Monitoring products. The Eyedro Electricity Monitor was designed to be non-intrusive and easy to install. Typically, there is no need to disconnect any electrical cabling during the installation. However, there are several safety issues that should be considered when installing and using the system.
  • Page 7: Box Contents (By Product)

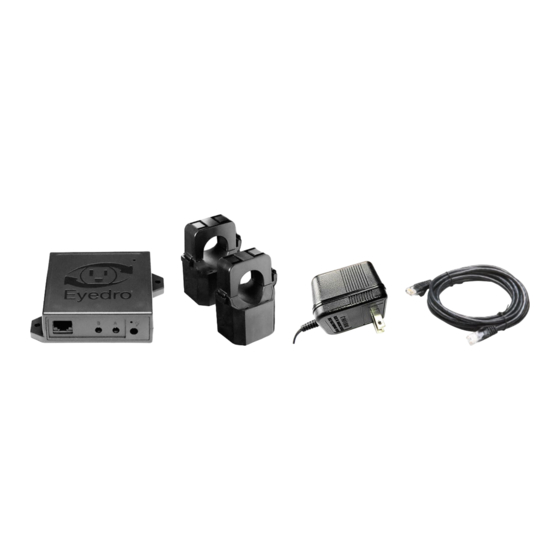

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM BOX CONTENTS (BY PRODUCT) EYEDRO-HOME Description Eyedro Electricity Module with Ethernet and Wi-Fi connectivity (EMx.ENWI.2E) 200A Current Sensors Low-voltage Power Adapter (North American model shown) 10ft (3m) Ethernet Cable ©2011-2023 Eyedro Green Solutions Inc.
  • Page 8: Eyedro5-Ehem1

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM EYEDRO5-EHEM1 Description Eyedro Electricity Module with Ethernet connectivity (EMx.ENET.2E) 200A Current Sensors Low-voltage Power Adapter (North American model shown) 10ft (3m) Ethernet Cable ©2011-2023 Eyedro Green Solutions Inc. P a g e...
  • Page 9: Hardware Installation

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM HARDWARE INSTALLATION DO NOT CONTINUE WITH THE INSTALLATION OF THE EYEDRO ELECTRICITY MONITORING SYSTEM UNTIL YOU HAVE READ THE SAFETY SECTION OF THIS GUIDE. LOCATING THE ELECTRICAL SERVICE The electricity panel is typically located in the garage or utility room of the building – although this is not always the case.
  • Page 10: Install Current Sensors

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM INSTALL CURRENT SENSORS MATERIALS YOU WILL NEED  Eyedro Current Sensors  Approved bushing or connector (not included)  Labels (optional – not included) TOOLS YOU WILL NEED  Flashlight  Screwdriver ...
  • Page 11: Procedure (Alternate Applications)

    MONITORING SYSTEM PROCEDURE (ALTERNATE APPLICATIONS) The most common application of Eyedro Electricity Monitoring products is for monitoring of the electrical service entrance of a building. However, there are other common applications where Eyedro Electricity Monitoring products are often used. The following sub-sections provide a brief overview of some of the most common applications.
  • Page 12 PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM BALANCED BRANCH CIRCUIT MONITORING Balanced branch circuits are common in split-phase electrical services and typically used for large appliances throughout the building. Common examples of balanced loads are electric heaters/baseboards, electric water heaters, air conditioners, heat pumps, pool pumps, etc. These circuits can be identified by a double-pole breaker in the electrical panel.
  • Page 13 PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM UNBALANCED BRANCH CIRCUIT MONITORING Unbalanced branch circuits are common in split-phase electrical services and typically used for large appliances, split receptacles, and sub-panel feeders throughout the building. A typical split-phase residential service entrance is also an example of a 240V unbalanced circuit. These are circuits with both 120V and 240V components.
  • Page 14 THREE-PHASE MONITORING (DELTA OR WYE) Three-phase installations are common in commercial and industrial environments. These installations require the use of Eyedro Business (ExB*) products. Details and installation instructions for these products are outside the scope of this document. ©2011-2023 Eyedro Green Solutions Inc.
  • Page 15: Mount Eyedro Device

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM MOUNT EYEDRO DEVICE MATERIALS YOU WILL NEED  Two (2) #8 (4.2mm) pan head or round head mounting screws (optional – not included)  Double-sided tape (optional – not included) TOOLS YOU WILL NEED ...
  • Page 16: Procedure (Horizontal Mount)

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM PROCEDURE (HORIZONTAL MOUNT) Mounting is not required for horizontal installations (i.e., on a desktop or shelf). If added security is desired, follow instructions for vertical mounting using screws or double-sided tape.
  • Page 17: Connect Cabling

    Never force connectors or apply levering action. Ensure all connections are secure. For devices with both Ethernet and Wi-Fi (EYEDRO-HOME), the Ethernet cable must be plugged in before power is applied to the device for Ethernet communication to be used.
  • Page 18: Internet Connection

    A good test would be to plug a laptop or computer into the same Ethernet port that you intend to use for your (wired) Eyedro product, or, if installing an Eyedro Wi-Fi product, provision it to connect to the same Wi-Fi network – if you can open a browser and navigate the web no additional configuration is likely needed.
  • Page 19: Provisioning Wi-Fi (Eyedro-Home Only)

    2. Using the same phone/tablet/computer, search for available Wi-Fi networks and connect to the Wi-Fi network created by your Eyedro device. The name of the created network will be “Eyedro[xxx-yyyyy]” where xxx-yyyyy matches the serial number of the device. 3. Open a browser and go to eyedro.com/setup.
  • Page 20: Tips

    Device is connected to the provisioned network and should appear as ‘Active’ in MyEyedro. If the status lights are still not green (connected) after following the procedure, cycle power to the Eyedro device and try the procedure again – carefully following all instructions and notes.
  • Page 21: Software Configuration

    (or login if you have an existing account). 2. From the system configuration screen, enter the serial number of your Eyedro Module(s) – found on the back of the device(s). For more information on MyEyedro and complete instructions for adding devices, refer to the online documentation and user guide found at http://eyedro.com/support...
  • Page 22: Specifications

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM SPECIFICATIONS HARDWARE SPECIFICATIONS EYEDRO-HOME EYEDRO5-EHEM1 Ethernet + Wi-Fi Ethernet Class 2 Power Supply Input: 120Vac, 60Hz (North America/Type A) Power Supply Input: 240Vac, 50Hz (Europe/Type C) Output: 6Vac, 0-350mA 0°C to 50°C Ambient Operating (32°F to 122°F)
  • Page 23: Compliance

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM COMPLIANCE This product has been tested and found in compliance to: Safety Requirements for Electrical Equipment For Measurement, Control, And Laboratory Use - Part 1: General Requirements [UL 61010-1:2012 Ed.3+R:19Jul2019] Safety Requirements for Electrical Equipment For Measurement, Control, And Laboratory Use –...
  • Page 24: Warranty

    WARRANTY LIMITED ONE YEAR WARRANTY Eyedro Green Solutions Inc. shall provide warranty for all defects in material and workmanship for a period of one year from the original date of purchase. Defective parts may be repaired or replaced, at the discretion of the manufacturer, free of charge during this period.
  • Page 25: Troubleshooting

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM TROUBLESHOOTING Device installation is simple and non-invasive but occasionally problems do arise. Before contacting support, please refer to our online troubleshooting resources. Troubleshooting: eyedro.com/support-troubleshooting ©2011-2023 Eyedro Green Solutions Inc. P a g e...
  • Page 26: Contact Information

    PRODUCT GUIDE: EYEDRO-HOME AND EYEDRO5-EHEM1 SINGLE-PHASE ELECTRICITY MONITORING SYSTEM CONTACT INFORMATION If you have any questions about using your Eyedro Electricity Monitoring System please visit our website for documentation, videos, frequently asked questions, and contact forms. Website: eyedro.com Support: eyedro.com/support Eyedro Green Solutions Inc.
