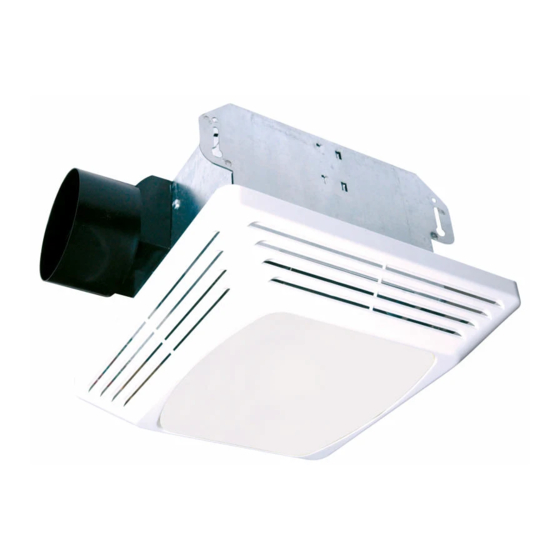

Air King Exhaust Fan ASF70 Specifications

• Grill
White polymeric grill secured in place via screw mounting
through the light housing, dimensions - 11" x 10
• Light Lens
High impact polycarbonate lens, secured in position using
integral tabs; easily removed if necessary.
• Light Housing
Heavy gauge cold rolled steel c/w baked enamel finish; locks
in place on the grill via two integral tabs.
• Blower Wheel
One piece polymeric wheel, 4
• Motor
Single coil plug-in, two pole motor, life time lubrication, thermally
protected. Rated 120 volts, 60 hz., 1.6 amps.
• Fan Housing
23 ga. Galvanized metal housing, dimensions 7
double metal thickness mounting tabs.
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Lighting
Electronic Quick Start Ballast – rated 26 Watt – Use Triple 4 pin
lamp. Maximum 26 Watt.
Air Flow - CFM
77
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
70 CFM/4.0 SONES @ 0.10" WG. -HVI CERTIFIED
120 Volts, 1.6 amps, 60 hz.
1 / 2 ".
1 / 2 " diameter, 1" wide, with 10 fins.
3 / 8 " x 7
Static Pressure (inches of w.g.)
0 0.05 0.1 0.125
73 70 69
IN
RPM WATTS
W.G.
4"
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
• Unit Mounting
Rated Type IC for ceilings insulated to R-40. Designed to mount
in ceilings with at least 6" of clearance. The unit will mount
directly to the joist or using the supplied mounting bars with a
5 / 8 " x 5 7 / 8 ",
rough in opening of 7
drywall thickness up to
• Ventilating Area
For bathrooms up to 70 sq. ft. for other rooms up to 85 sq. ft.
• Single Pack Shipping Info
Box Dim: 11
UPC: 0-8316227321-5
Shipping Weight: 6 lbs.

PERFORMANCE

0.15 0.2 0.25
68 66 64
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048

SPECIFICATIONS

ASF70
EXHAUST FANS
7 5 / 8 "
7 "
3 / 8
11"
CUL/HVI
5 / 8 " x 7 7 / 8 ". The housing will mount through
3 / 4 ".
1 / 2 " x 13 1 / 4 " x 9 1 / 2 "
HVI Sones Fan Speed
@ .1 SP
0.3
62 4.0
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
5 7 / 8 "
10 1 / 2 "
Power
RPM Watts
1725 44
Updated 5-06
