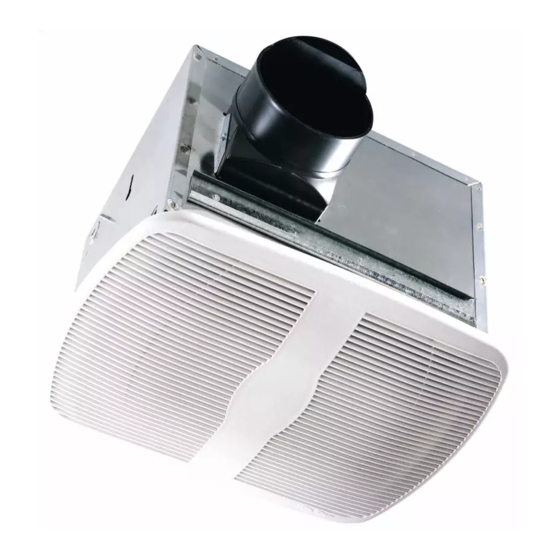

Exhaust fans 80 cfm/1.5 sones @ 0.10" wg. 70cfm/1.5 sones @ 0.25" wg. hvi certified 120 volts, 0.30 amps, 60 hz.

Advertisement

80 CFM/1.5 SONES @ 0.10" wg. 70CFM/1.5 SONES @ 0.25" wg.
• Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 11" x 13
• Blower Wheel
One piece polymeric centrifugal blower wheel, 5
2
29 / 32
" wide, with 30 paddles.
• Motor
Heavy duty, permanently split capacitor, plug-in, 4 pole motor,
life time lubrication, suitable for continuous operation. Rated
120 volts, 60 hz., 0.30 amps.
• Fan Housing
23 gauge galvanized steel housing.
Dimensions: 10
7 / 8
" x 9
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Ventilating Area
For bathrooms up to 80 sq. ft. For other rooms up to 100 sq. ft.
Air Flow - CFM
88
PROJECT
LOCATION
CONTRACTOR
FAN
MODEL
CFM
NUMBER NUMBER
C
US
Specifications subject to change without notice.
HVI CERTIFIED 120 Volts, 0.30 amps, 60 hz.
3 / 4
7 / 32
3 / 8
" x 7
7 / 8
".
Static Pressure (inches of w.g.)
0
0.05
0.1
0.125
83
80
79
IN
RPM
WATTS
W.G.
".
7
7 / 8
" diameter,
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
• Unit Mounting
The housing will mount in ceilings with at least 8" of clearance
and through drywall thickness up to
of 11
1 / 8
" x 9
will mount either between 16" or 24" on center joists, using the
4 supplied housing mounting rails. The housing mounting rails
can be adapted for overhead mounting (hardware not provided).
• Single Pack Shipping Info
Box Dim: 14
UPC: 0-8316228002-2
Shipping Weight: 10 lbs.
PERFORMANCE
0.15
0.2
0.25
77
73
70
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS
SONES
QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (877)-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
AK80
EXHAUST FANS
9
"
3 / 8
10
7 / 8
"
"
13
3 / 4
"
11"
CUL/HVI
3 / 4
", with a rough-in opening
5 / 8
". Rated for ceilings insulated to R-40. The housing
1 / 8
" x 11
5 / 8
" x 9
5 / 8
"
HVI Sones @ Fan Speed
.1 SP/.25 SP
0.3
65
1.5
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
4"
Power
RPM
Watts
1033
26
Updated 5-06
