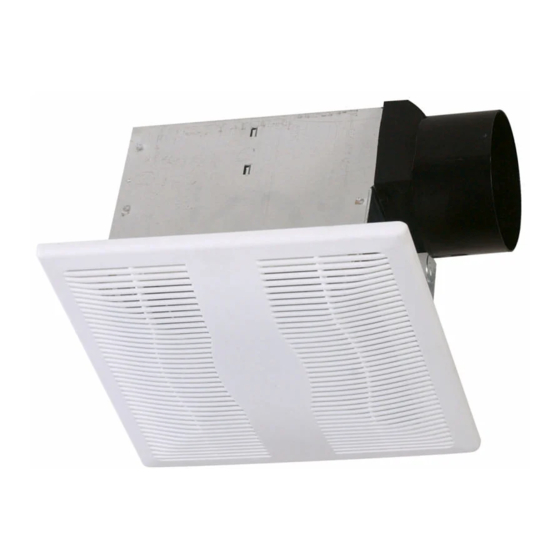

Air King Exhaust Fan AS120 Specifications

120 CFM/4.0 SONES @ 0.10" WG. -HVI CERTIFIED
• Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 10
• Blower Wheel
One piece polymeric wheel, 5
• Motor
PSC, plug-in, 4 pole motor, life time lubrication, suitable for
continuous operation. Rated 120 volts, 60 hz., 0.45 amps.
• Fan Housing
23 gauge galvanized steel housing, dimensions 8
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Ventilating Area
For bathrooms up to 120 sq. ft. for other rooms up to 145 sq. ft.
• Unit Mounting
Rated for ceilings insulated to R-40. Designed to mount in
ceilings with at least 6" of clearance. AS120 is centered between
joists (with 16" centers) using hanging brackets. The housing
will mount through drywall thickness up to
in opening of 9" x 9".
• Single Pack Shipping Info
Box Dim: 12 3 / 4 " x 10 1 / 8
UPC 0-8316221211-5
Shipping Weight - 6 1 / 4
Air Flow - CFM 129
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
120 Volts, 0.45 amps, 60 hz.
1 / 2 "x10 1 / 2
1 / 8 " diameter, 2 3 / 8 " wide, with 48 fins.
3 / 4 "x8
3 / 4 ", with a rough-
" x 7"
lbs.
Static Pressure (inches of w.g.)
0 0.05 0.1 0.125
124 120 117
IN
RPM WATTS
W.G.
".
5 3 / 4 "
3 / 4 "x5 3 / 4 ".
10
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
PERFORMANCE
0.15 0.2 0.25
115 109 102
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
AS120
EXHAUST FANS
8 3 / 4 "
8 3 / 4
1 / 2 "
10 1 / 2 "
CUL/HVI
HVI Sones Fan Speed
@ .1 SP
0.3
93 4.0
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
"
4"
Power
RPM Watts
1525 68
Updated 6-06
