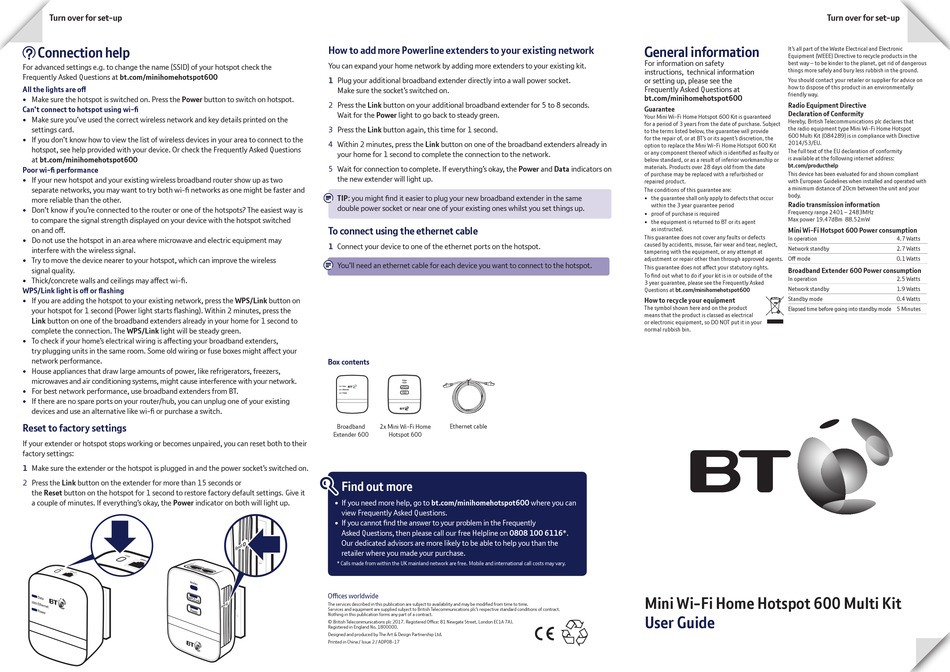

BT Mini Wi-Fi Home Hotspot 600 Multi Kit User Manual

Turn over for set-up

Connection help

For advanced settings e.g. to change the name (SSID) of your hotspot check the
Frequently Asked Questions at bt.com/minihomehotspot600
All the lights are off
• Make sure the hotspot is switched on. Press the Power button to switch on hotspot.
Can't connect to hotspot using wi-fi
• Make sure you've used the correct wireless network and key details printed on the
settings card.
• If you don't know how to view the list of wireless devices in your area to connect to the
hotspot, see help provided with your device. Or check the Frequently Asked Questions
at bt.com/minihomehotspot600
Poor wi-fi performance
• If your new hotspot and your existing wireless broadband router show up as two
separate networks, you may want to try both wi-fi networks as one might be faster and
more reliable than the other.
• Don't know if you're connected to the router or one of the hotspots? The easiest way is
to compare the signal strength displayed on your device with the hotspot switched
on and off.
• Do not use the hotspot in an area where microwave and electric equipment may
interfere with the wireless signal.
• Try to move the device nearer to your hotspot, which can improve the wireless
signal quality.
• Thick/concrete walls and ceilings may affect wi-fi.
WPS/Link light is off or flashing
• If you are adding the hotspot to your existing network, press the WPS/Link button on
your hotspot for 1 second (Power light starts flashing). Within 2 minutes, press the
Link button on one of the broadband extenders already in your home for 1 second to
complete the connection. The WPS/Link light will be steady green.
• To check if your home's electrical wiring is affecting your broadband extenders,
try plugging units in the same room. Some old wiring or fuse boxes might affect your
network performance.
• House appliances that draw large amounts of power, like refrigerators, freezers,
microwaves and air conditioning systems, might cause interference with your network.
• For best network performance, use broadband extenders from BT.
• If there are no spare ports on your router/hub, you can unplug one of your existing
devices and use an alternative like wi-fi or purchase a switch.

Reset to factory settings

If your extender or hotspot stops working or becomes unpaired, you can reset both to their
factory settings:
1 Make sure the extender or the hotspot is plugged in and the power socket's switched on.
2 Press the Link button on the extender for more than 15 seconds or
the Reset button on the hotspot for 1 second to restore factory default settings. Give it
a couple of minutes. If everything's okay, the Power indicator on both will light up.


How to add more Powerline extenders to your existing network

You can expand your home network by adding more extenders to your existing kit.
1 Plug your additional broadband extender directly into a wall power socket.
Make sure the socket's switched on.
2 Press the Link button on your additional broadband extender for 5 to 8 seconds.
Wait for the Power light to go back to steady green.
3 Press the Link button again, this time for 1 second.
4 Within 2 minutes, press the Link button on one of the broadband extenders already in
your home for 1 second to complete the connection to the network.
5 Wait for connection to complete. If everything's okay, the Power and Data indicators on
the new extender will light up.
TIP: you might find it easier to plug your new broadband extender in the same
double power socket or near one of your existing ones whilst you set things up.

To connect using the ethernet cable

1 Connect your device to one of the ethernet ports on the hotspot.
You'll need an ethernet cable for each device you want to connect to the hotspot.

Box contents

Wireless
Data
WPS/Link
Ethernet
Power Power
Broadband 2x Mini Wi-Fi Home Ethernet cable
Extender 600 Hotspot 600
Find out more
• If you need more help, go to bt.com/minihomehotspot600 where you can
view Frequently Asked Questions.
• If you cannot find the answer to your problem in the Frequently
Asked Questions, then please call our free Helpline on 0808 100 6116*.
Our dedicated advisors are more likely to be able to help you than the
retailer where you made your purchase.
* Calls made from within the UK mainland network are free. Mobile and international call costs may vary.
Offices worldwide
The services described in this publication are subject to availability and may be modified from time to time.
Services and equipment are supplied subject to British Telecommunications plc's respective standard conditions of contract.
Nothing in this publication forms any part of a contract.
© British Telecommunications plc 2017. Registered Office: 81 Newgate Street, London EC1A 7AJ.
Registered in England No. 1800000.
Designed and produced by The Art & Design Partnership Ltd.
Printed in China / Issue 2 / ADP08-17

General information

It's all part of the Waste Electrical and Electronic
Equipment (WEEE) Directive to recycle products in the
For information on safety
best way – to be kinder to the planet, get rid of dangerous
instructions, technical information things more safely and bury less rubbish in the ground.
or setting up, please see the
You should contact your retailer or supplier for advice on
how to dispose of this product in an environmentally
Frequently Asked Questions at
friendly way.
bt.com/minihomehotspot600

Radio Equipment Directive

Guarantee

Declaration of Conformity
Your Mini Wi-Fi Home Hotspot 600 Kit is guaranteed
Hereby, British Telecommunications plc declares that
for a period of 3 years from the date of purchase. Subject
the radio equipment type Mini Wi-Fi Home Hotspot
to the terms listed below, the guarantee will provide
600 Multi Kit (084289) is in compliance with Directive
for the repair of, or at BT's or its agent's discretion, the
2014/53/EU.
option to replace the Mini Wi-Fi Home Hotspot 600 Kit
The full text of the EU declaration of conformity
or any component thereof which is identified as faulty or
is available at the following internet address:
below standard, or as a result of inferior workmanship or
bt.com/producthelp
materials. Products over 28 days old from the date
This device has been evaluated for and shown compliant
of purchase may be replaced with a refurbished or
repaired product. with European Guidelines when installed and operated with
a minimum distance of 20cm between the unit and your
The conditions of this guarantee are:
body.
• the guarantee shall only apply to defects that occur

Radio transmission information

within the 3 year guarantee period
Frequency range 2401 – 2483MHz
• proof of purchase is required
Max power 19.47dBm 88.52mW
• the equipment is returned to BT or its agent
as instructed.

Mini Wi-Fi Hotspot 600 Power consumption

This guarantee does not cover any faults or defects
In operation
caused by accidents, misuse, fair wear and tear, neglect,
Network standby
tampering with the equipment, or any attempt at
adjustment or repair other than through approved agents. Off mode
This guarantee does not affect your statutory rights.

Broadband Extender 600 Power consumption

To find out what to do if your kit is in or outside of the
In operation
3 year guarantee, please see the Frequently Asked
Network standby
Questions at bt.com/minihomehotspot600
Standby mode

How to recycle your equipment

The symbol shown here and on the product
Elapsed time before going into standby mode 5 Minutes
means that the product is classed as electrical
or electronic equipment, so DO NOT put it in your
normal rubbish bin.
Mini Wi-Fi Home Hotspot 600 Multi Kit
User Guide
Turn over for set-up
4.7 Watts
2.7 Watts
0.1 Watts
2.5 Watts
1.9 Watts
0.4 Watts
