Timeguard PDFM362 Instructions

Conforms To
EC Directives
Flush Mount
Presence Detector
PDFM362 / PDFM361
Instructions
Models PDFM362 / PDFM361

Technical Specifications

Rated Voltage: 230V~ ±10% 50Hz
Loads PDFM362:
Load I ( L ) for Lighting: µ contact gap
Mains halogen lamp: max. 1000W
Incandescent lamp: max. 2000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Load II (D1-D2) for HVAC:
Voltage free contacts:
Max. 5A for 250VAC~ or 30VDC
(resistive)
Motor: 1/10HP (approx. 73W)
PDFM361:
Load ( L ) for Lighting: µ contact gap
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Delay Time Adjustment PDFM362:
TIME1 (for lighting):
Adjustable from 5sec to 20min
(continuously adjustable)
Extendable to 30min and 60min when in
use with the IR-10 remote control
TIME2 (for HVAC):
Continuously adjustable from 10sec to
60min (independent of light level)
PDFM361:
TIME: Adjustable from 5sec to 20min
(continuously adjustable)
Extendable to 30min and 60min when in
use with the IR-10 remote control
LUX (light level) Adjustable from 10LUX to 2000LUX
Adjustment (continuously adjustable)
Max. Detection Coverage 360º cone shape from ceiling height of
2.5m giving 7m dia. coverage at floor
level (for affect of ceiling height on
coverage see section 3.1.1)
METER Adjustment Adjustable continuously from +
giving maximum detection
coverage at floor level to - giving
substantially reduced detection
coverage at floor level
Connection between 1m flying lead from sensor
Sensor and Power Unit terminated in an RJ11 plug.
RJ11 socket on power unit
(use socket A for PDFM362)
Operating Temperature 0ºC to +45ºC
Environmental Protection Sensor: IP40
Power unit: IP20
All procedures indicated in this manual must be
carried out by a professional installer.
1

Package Contents

Visual I.D.
Item Sensor Power Unit Instructions IR-10
(optional
purchase)
Quantity 1 1 1
2

Product Description

2.1 Features

The PDFM362 / PDFM361 controller is a ceiling flush mount presence
detector for indoor applications in commercial and domestic locations.
PDFM361 covers lighting applications only, whereas PDFM362 can
control lighting and HVAC (heating, ventilating and air conditioning)
applications.
Adjustment of Time and LUX value can be made either by the dial
controls on the sensor body or by the IR-10 Infrared remote control.
• PDFM362 has two relays for outputs load I and load II:
load I is for lighting control and load II has voltage free contacts for
HVAC control which operate at all LUX (light) levels.
• Automatically adjusts to fit in a wide range of ceiling thicknesses.
• The sensor has a very high density of sensitive beams covering the
detection area. These are evenly distributed ensuring no dead spots
and detection of the smallest movements.
• RJ11 plug and socket for quick and easy connection.
• Built in LED in sensor giving confirmation of remote control settings
and easy test operation.

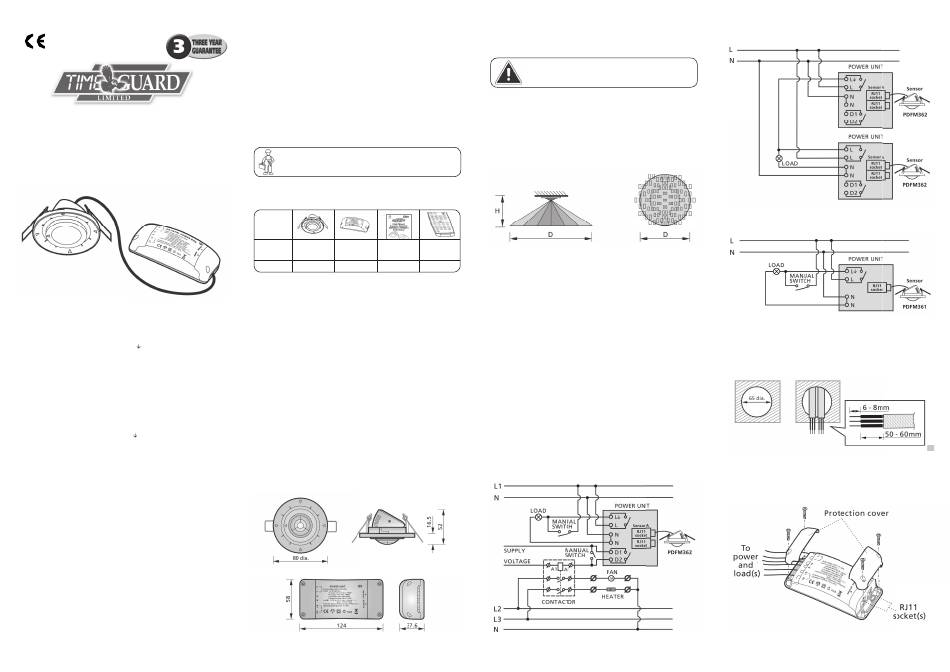

2.2 Dimension (see Fig.1-A & Fig.1-B)
Sensor: 80 dia. x 52mm
Fig. 1-A
Power unit: 124 x 58 x 37.6mm
Fig. 1-B
3

Installation and Wiring

Please disconnect power completely and read the
entire instruction manual carefully before installation.

3.1 Select the required location

3.1.1 Sensor adjustment

Fig. 2 shows the way coverage alters with ceiling height and with
adjustments of the METER dial setting.
Section 4.2.3 shows how tilting and rotating the sensor can produce
different fields of coverage.
Side View Top View (showing individual
beam pattern at floor level)
Fig. 2
Ceiling Height (H) Detection Coverage Diameter (D)
with METER on +
2m 7m
2.5m 7m
3m 10m
3.5m 12m
4m 12m
4.5m 12m
If the METER control is turned to - the coverage diameter is substantially
reduced.
We do not recommend the use of these units with ceiling heights
greater than 4.5m.

3.1.2 Helpful tips for installation

As the sensor responds to temperature change or moving heat sources,
please avoid the following conditions:
• Avoid highly reflective surfaces within the detection range.
• Avoid movable objects e.g. curtains and plants in the detection range
(these may cause erronious detections when moved by air flow from
fans or air conditioner).
• Avoid heat sources (e.g. heating vents, radiators, air conditioners and
filament lamps) in detection range.
• Avoid fans drawing air across the sensor lens.

3.2 Wiring diagrams

3.2.1 PDFM362 controller (see Fig.3).
Fig. 3
3.2.2 One load is controlled by two sensors (see Fig.4).
Fig. 4
3.2.3 PDFM361 for one sensor (see Fig. 5).
Fig. 5

3.3 Installation procedure

3.3.1 To install the detector, cut a hole with diameter of 65mm in the
ceiling board and bring the power cable through the hole. Strip off
cable sheath and core insulation according to Fig. 6.
Drill a hole 65mm dia.
in the ceiling.
Fig. 6
3.3.2 Unscrew protection covers on power box with a cross point
screwdriver. The RJ11 socket (use sensor A only) is for sensor connection
and screw terminals are for power and load(s). (See Fig. 7).
Fig. 7
