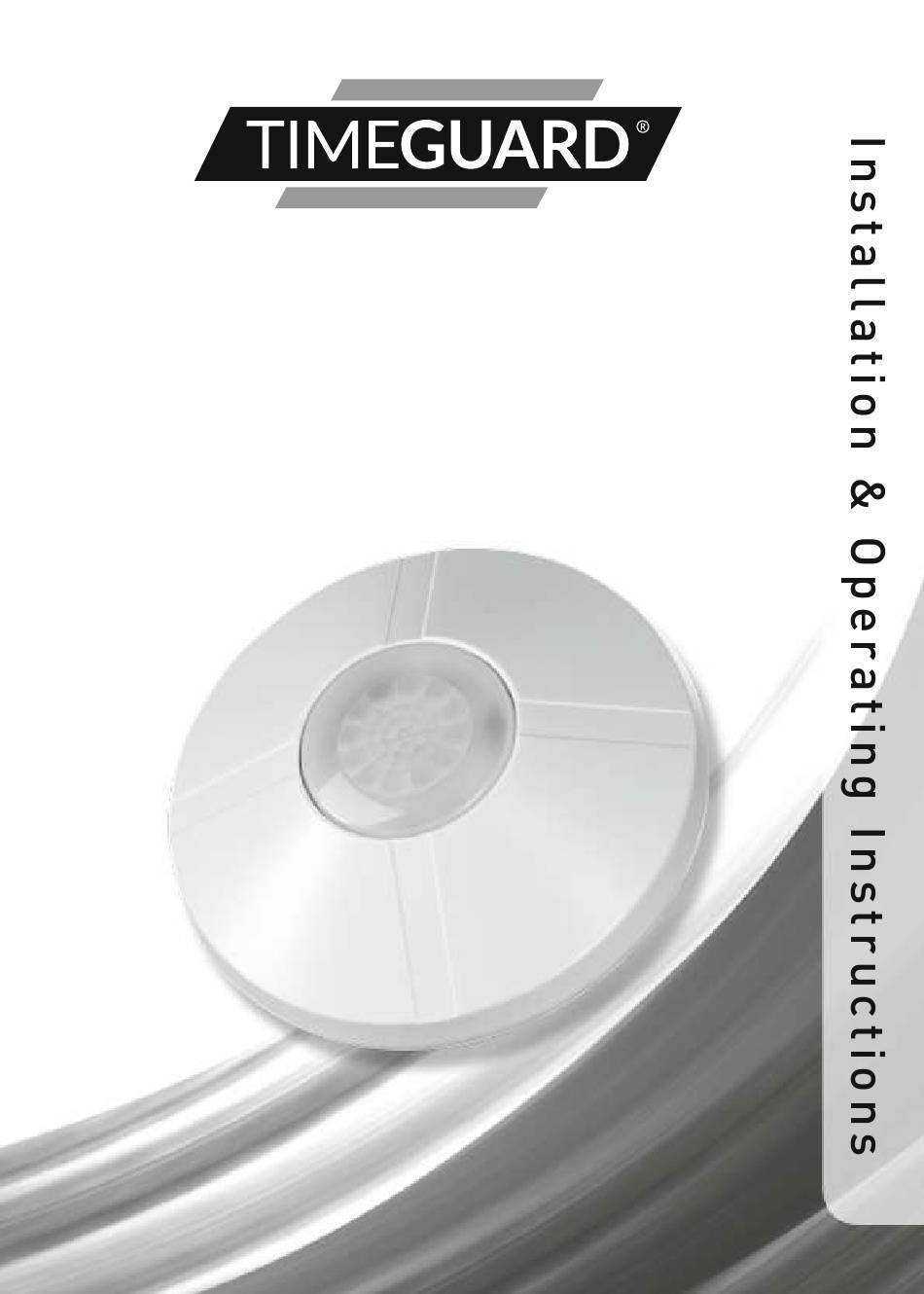

- Page 1 Surface Mount IR DALI Presence Detectors Model: PDSMDALI Surface Mount IR DALI Presence Detector Model: PDSMCDALI Surface Mount IR DALI Corridor Presence Detector...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the PIR sensor is switched off and the circuit supply fuses are removed or the circuit breaker turned off. -
Page 3: Technical Specifications
• Operating Temperature: -20°C to +40°C • IP20 rated suitable for restricted internal applications • CE compliant PDSMDALI • Motion detection range: Up to a 9m diameter approx. at a 2.5m mounting height • Dimensions (W x H x D):... -
Page 4: Selecting A Location
(extractor fans, tumble dryer exhausts etc.) including opposite any other light sources. • Install the sensor at least 3' away from fluorescent and HVAC ducts, and at least 4' away from incandescent fixtures and HVAC diffusers. PDSMDALI PDSMCDALI... -
Page 5: Installation
5. Installation 5.1 Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker is turned off. 5.2 Make sure the power wiring comes from an external miniature circuit breaker for short circuit operation. 5.3 Remove the top cover of the sensor by twisting the top cover anti-clockwise, and then lift off the sensor. -
Page 6: Connection Diagram
6. Connection Diagram Connections are as follows; 230V 50Hz Mains Supply Live Supply (Brown or Red) to Neutral Supply (Blue or Black) to... - Page 7 7. Adjustments • The adjustments can be found beneath the top cover of the sensor. Check that the sensor is set to factory defaults, with the adjustments set as follows; TIME ON setting: 10 seconds CONSTANT LUX setting: 1000 Lux STDBY TIME: DALI Group: •...
-
Page 8: Initial Set-Up And Operation
ON. This checks the operation of the detector and field of view. • When in Test Mode (when using the Timeguard IRRDALI remote control), the sensor LED indicator and load will turn ON for 3 seconds when each movement is detected. - Page 9 9. Lens Mask • The supplied lens mask can be used to reduce the sensor coverage, preventing detection in unwanted areas. • Cut the lens mask either horizontally or vertically until the desired area of detection is obtained. • For your information, the centre section of the lens mask covers short range detection, and the outer edge of the lens mask covers long range.
-
Page 10: Troubleshooting
10. Troubleshooting Problem Solution The sensor will not Check the wiring to make sure that you have the correct function at all/Load AC power and DALI power at the sensor. will not come ON Check the wiring from the sensor to the source of power to make sure you have wired the sensor correctly. -
Page 11: Year Guarantee
Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement... - Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline: HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Coordinators will be online to assist in resolving your query.
