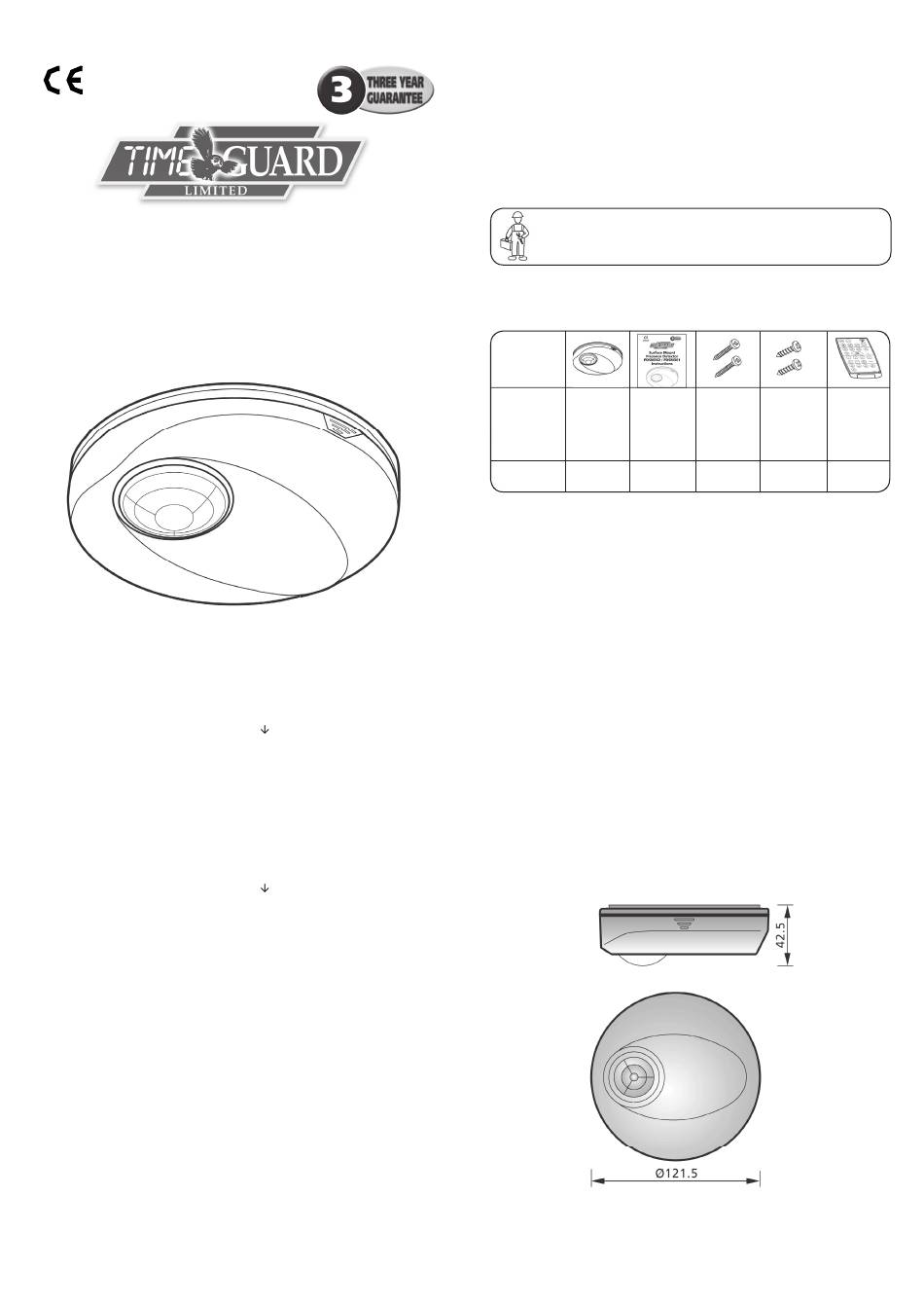

Timeguard PDSM362 Instructions

Conforms To
EC Directives
Surface Mount
Presence Detector
PDSM362 / PDSM361
Instructions
Models PDSM362 / PDSM361
Technical Specifications
Rated Voltage:
Loads
Timer Adjustment
(constant adjustment)
LUX (light level)
Adjustment
Max. Detection Coverage
230V~ ±10% 50Hz
PDSM362 (2 channels):
Load I ( L ) for Lighting: µ (contact
seperation)
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
Load II (D1-D2) for HVAC:
Max. 5A (cosØ =1) 250VAC or 30VDC
Max: 1/10HP (73W)
PDSM361 (1 channel):
Load I ( L ) for Lighting: µ (contact
seperation)
Incandescent lamp: max. 2000W
Mains halogen lamp: max. 1000W
LV halogen lamp: max. 600VA
Fluorescent lamp: max. 900VA/100µF
PDFM362:
TIME1 (for lighting):
Adjustable from 5sec to 20min
(continuously adjustable)
TIME2 (for HVAC):
Adjustable from 10sec to 60min
(continuously adjustable)
PDFM361:
TIME: Adjustable from 5sec to 20min
(continuously adjustable)
Adjustable from 10LUX to 2000LUX
(continuously adjustable)
360º cone shape from ceiling height of
2.5m giving 7m dia. coverage at floor
level (for affect of ceiling height on
coverage see section 3.1.1)
METER Adjustment
Operating Temperature
Environmental Protection
All procedures indicated in this manual must be
carried out by a professional installer.
1
Package Contents
Visual I.D.
Item Sensor Instructions
Quantity 1 1
2
Product Description
2.1 Features
The PDSM362 / PDSM361 controller is a ceiling surface mount presence
detector for indoor applications in commercial and domestic locations.
PDSM361 covers lighting applications only, whereas PDSM362 can
control lighting and HVAC (heating, ventilating and air conditioning)
applications.
Adjustment of Time and LUX values can be made either by the dial
controls on the sensor body or by the IR-10 Infrared remote control.
• PDSM362 has two relays for outputs load I and load II:
load I is for lighting control and load II has voltage free contacts for
HVAC control which operate at all LUX (light) levels.
• The sensor has a very high density of sensitive beams covering the
detection area. These are evenly distributed ensuring no dead spots
and detection of the smallest movements.
• Either side or bottom cable entry.
• Built-in red LED in sensor giving confirmation of remote control
settings and easy test operation.
2.2 Dimensions (see Fig.1)
Adjustable continuously from
+ giving maximum detection
coverage at floor level to - giving a
substantially reduced detection
coverage at floor level
0ºC to +45ºC
Class II, IP40
Wood Self-tapping IR-10
screw screw (optional
Ø4 x Ø3 x purchase)
25.4mm 10mm
2 2
Fig. 1
