Summary of Contents for Reliable 7200DB

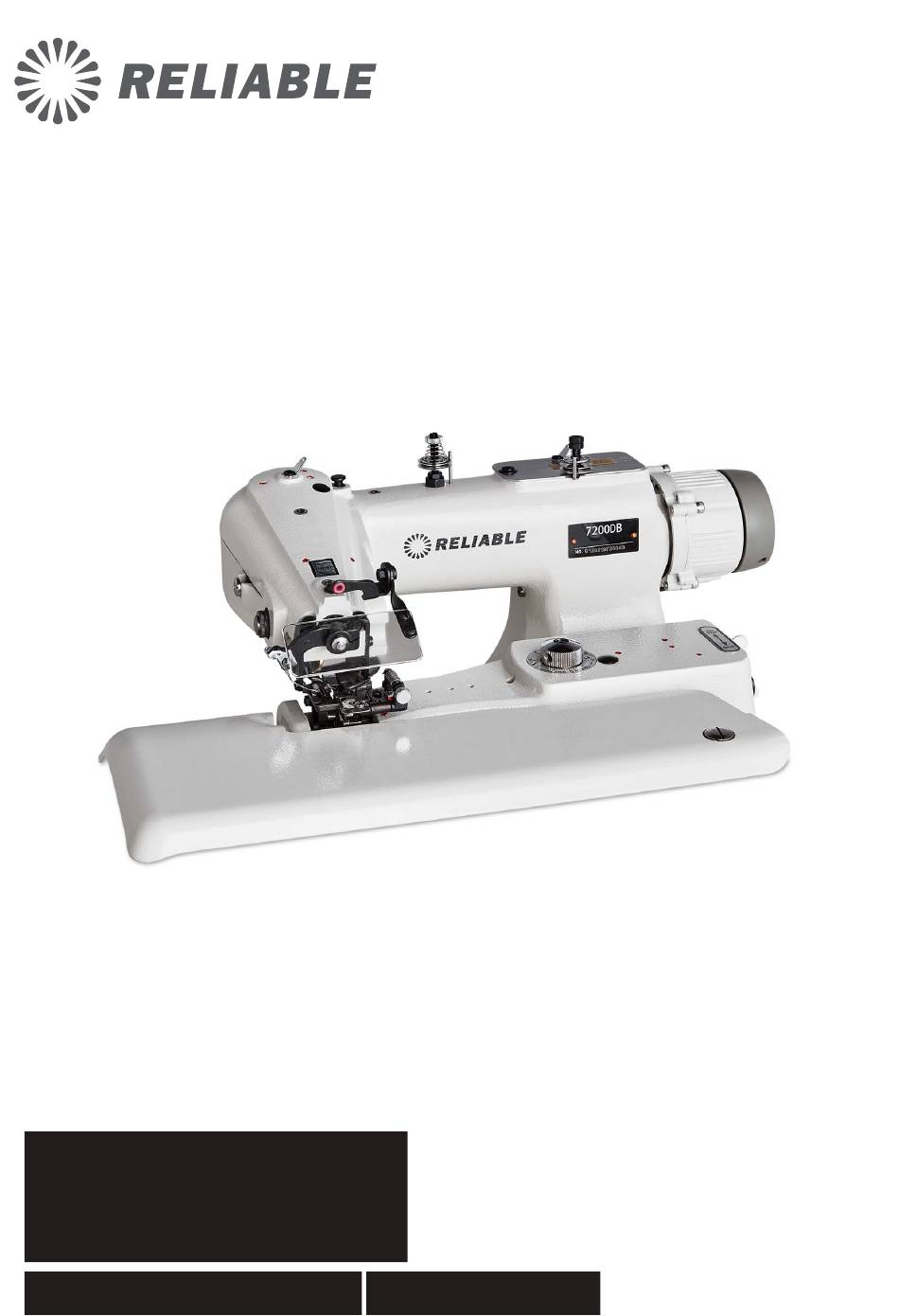

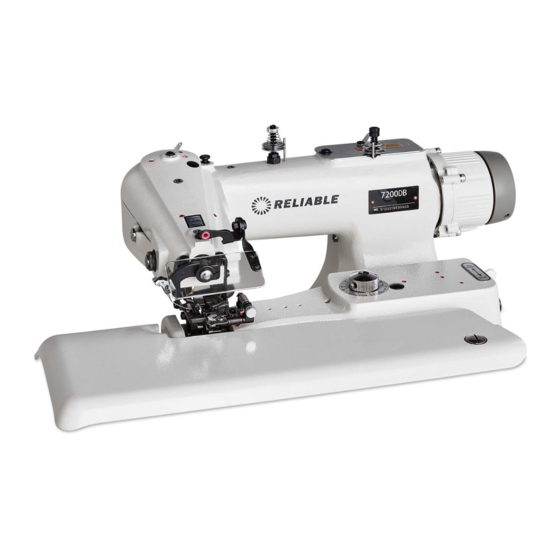

- Page 1 7200DB INDUSTRIAL BLINDSTITCH MACHINE INSTRUCTION MANUAL...
- Page 13 Machine Frame & Covers Components Ref. No. Parts No. Description 4139 Arm Side Cover 4144 Arm Side Cover Set Screw 4137 Arm Side Cover Plate 5227 Arm Side Cover Plate Screw 4138-B Arm Top Cover Plate 4141 Arm Top Cover Plate Screw Arm Top Cover Plate Washer 4140-A AMl00-B Machine Frame...
- Page 14 Direct Drive Motor & C omponents M14-24 101SD-1 LD00271 LD00003 LD00237 LD00003...
- Page 16 Main Shaft Mechanism Components Ref. No. Parts No. Description Main Shaft Bushing (Front) 11005 Main Shaft Bushing Set Screw 4217 Oiling Felt 4128-A Oil Cap 4133 Counterweight (w/Stitch Length Numbers) Counterweight Set Screw (Short) Counterweight Set Screw (Long) 4134 Stitch Length Indicator Stitch Length Indicator Set Screw 11006 Main Shaft Bushing (Rear)
- Page 28 Work Plate, Knee Press & Belt Cover Parts Components Ref. No. Parts No. Description 4153 Work Plate 4156 Work Plate Latch 5230 Work Plate Latch Set Screw 4157-A Work Plate Bracket 4159 Work Plate Bracket Spring Pin 4160 Work Plate Bracket Leaf Spring (Long) 4161 Work Plate Bracket Leaf Spring (Short) 4048-A Work Plate Bracket Leaf Spring Set Screw...
- Page 35 FREQUENTLY ASKED QUESTIONS BLINDSTITCH SEWING MACHINES Sewing machine operators can often help themselves when their machine does not operate properly. Here are some simple instructions, which if properly used, can save you time and mechanic’s service call. What do I check when the thread breaks? Poor thread quality (too old, or not strong enough) can cause the machine to skip stitches or break the thread.
- Page 36 7200SB, 7200DB, WITH POSITIONI NG MOTOR USER’S BULLETIN TIME USERS OF BLINDSTITCH MACHINES – PLEASE READ CAREFULLY If you have never used a blindstitch machine before, it is very important that you read these instructions carefully. Failure to read may limit or void the manufacturer’s warranty.
- Page 37 NEEDLE UP NEEDLE DOWN POSITION EXTREME POSITION LEFT EXTREME RIGHT The machine is driven with a needle positioning motor. On stop command the needle will always stop in the down position - (extreme right) To remove the work piece at the end of a seam – heel back on the foot treadle and the needle will automatically position up –...
- Page 38 SIZE LW X 6T MATERIAL 2 1/2 Cotton, Silk, Dacron and Similar type light weight materials 3 1/2 Medium Weight materials. Woolen and others Thick material for drapery and others 4 1/2...
- Page 39 If Reliable is unable to repair or replace a Reliable Product, it will refund the current value of that Reliable Product at the time the warranty claim is made.
- Page 41 1 800 268 1649 www.reliablecorporation.com...
