- Page 1 7000FE END CUTTING SYSTEM INSTRUCTION MANUAL...

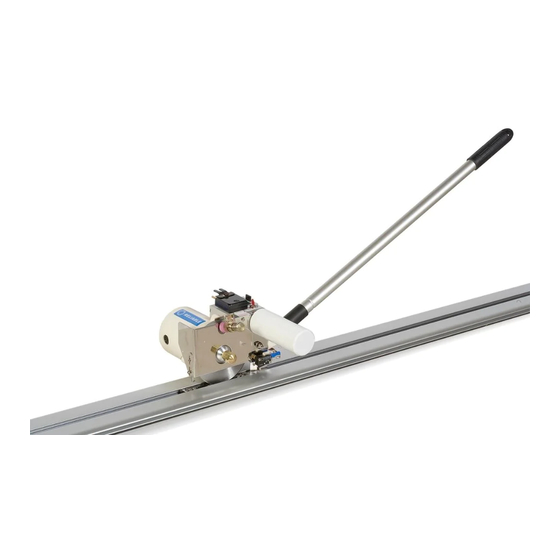

- Page 3 CONGRATULATIONS We would like to thank you, and congratulate you for purchasing the 7000FE end cutting system from Reliable. Everything you need to start end cutting is included. A heavy-duty 4” cutting head with a manual sharpener, 96” track with lifter set and uprights with a piece goods bar for your fabric.
-
Page 4: Setup Instructions
SET-UP INSTRUCTIONS SETTING UP THE FABRIC ROLL STAND (CB-13) A) Fix the stands on both sides at the end of table and tie the drive. B) Lie down the fabric roll on the fabric stands. 2. SETTING UP THE CLAMPS (CB-02) A) Find and fix two clamps on both sides of the table and tie the drive. - Page 5 MOTOR ASSEMBLY & ACCESSORIES CB-01 RAIL CB-18 SQUARE SEAT CB-02 CLAMP CB-19 ROLLER SEAT CB-03 BAR LIFTER ELBOW CB-22 SPRING CB-05 PLASTIC ROLLER CB-23 FABRIC ROLL HOLDING ROLLER CB-06 ROLLER SHAFT CB-24 STEEL PIECE CB-07 SCREW FOR RAIL CB-25 BELT FOR BAR LIFTER CB-07A SCREW FOR LOFT HANDLE CB-26...
- Page 6 STANDARD & BASE ASSEMBLY CA-01(W) MOTOR COVER (WHITE) CA-16 ROUND KNIFE CARBON BRUSH CA-17 LOWER BLADE CA-01A CA-01B CARBON BRUSH COVER CA-19 SWITCH PLATE CA-01C CARBON BRUSH HOLDER GRINDER ASSEMBLY GRINDER STONE CA-02 TERMINAL BOX CD-01 CA-03 COVER FOR TERMINAL BOX CD-48-E SWITCH CABLE (GLORY) SHORT HANDLE...
- Page 8 Reliable on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. If Reliable is unable to repair or replace a Reliable Product, it will refund the current value of that Reliable Product at the time the warranty claim is made.
- Page 10 1 800 268 1649 www.reliablecorporation.com...
