Theben RAMSES 366/1 top2 Installation And Operating Instructions Manual

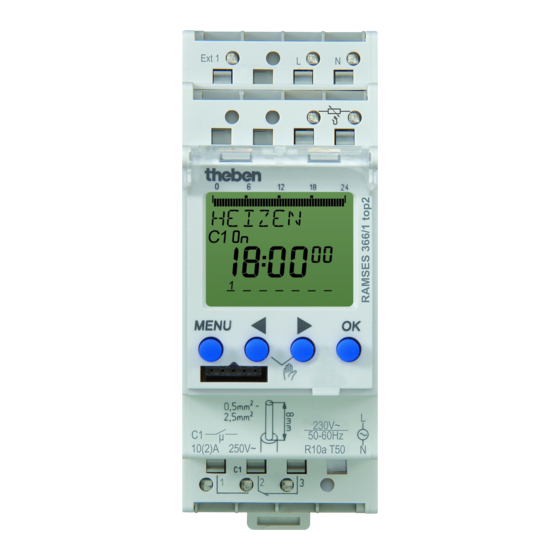

Digital clock thermostat
Hide thumbs Also See for RAMSES 366/1 top2:
Table of Contents

Advertisement

Quick Links

Download this manual

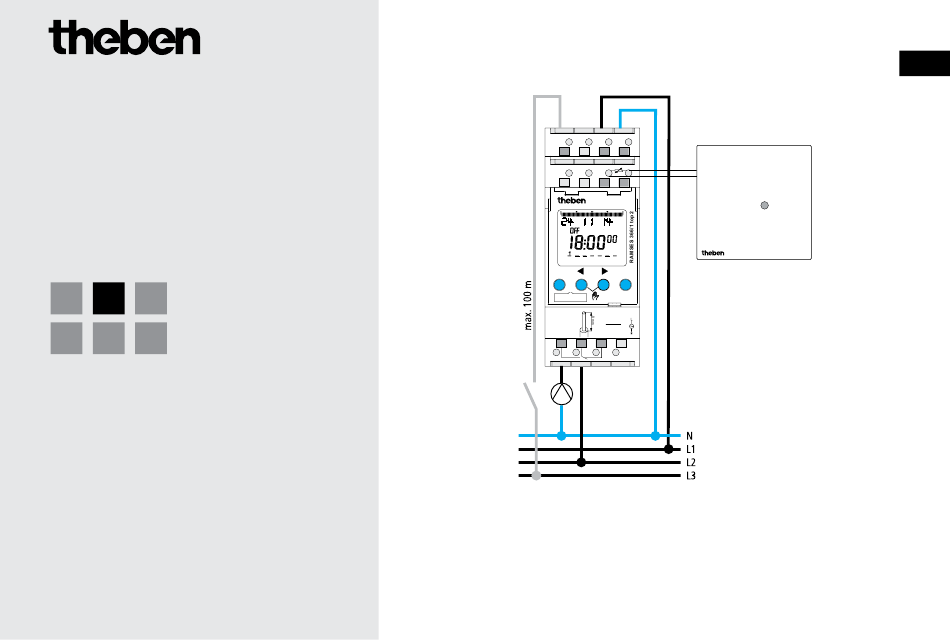

RAMSES
RAMSES 366/1 top2
3660100
Installation and operating
instructions
Digital clock thermostat
D GB
F
I
E
NL
Ext1
L
N
ϑ
0
6
12
18
24
MENU
OK
2
0,5mm -
2
2,5mm
230V~
50-60Hz
C1
10(2)A
250V~
R 10a - 30T
C1
1
2
3
RAMSES 366/1 top2
310483 02
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAMSES 366/1 top2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Theben RAMSES 366/1 top2

Summary of Contents for Theben RAMSES 366/1 top2

  • Page 1 310483 02 RAMSES RAMSES 366/1 top2 3660100 Ext1 ϑ Installation and operating instructions Digital clock thermostat MENU D GB 0,5mm - 2,5mm 230V~ 50-60Hz 10(2)A 250V~ R 10a - 30T RAMSES 366/1 top2...

  • Page 2: Table Of Contents

    Contents OPTIONS Basic safety information External input Display and keys/operating instructions Connection/installation Type of control Overview menu navigation Wall compensation Initial operation OBELISK top2 memory card TEMPERATURE Technical data Request/change temperature Service address/hotline program PROGRAM Reset switching time Request/change/delete switching time TIME/DATE MANUAL Manual and permanent switching...

  • Page 3: Basic Safety Information

    Basic safety information WARNING Danger of death through electric shock or fire!  Installation should only be carried out by a professional electrician! • The device is designed for installation on DIN top hat rails (in accordance with EN 60715) •...

  • Page 4: Display And Keys/Operating Instructions

    Display and buttons Operating instructions 1. Read text lines Programmed Operating switching times Text represents query mode: Frost Date display Time display Actual tempe- rature: 20 °C Days of the Channel status Display of the active buttons with week from 1 ON = On 2.

  • Page 5: Connection/Installation

    Connection/installation WARNING Danger of death through electric shock!  Must be installed by a professional electrician!  Disconnect power source.  Ensure device cannot be switched on.  Check absence of voltage. 45° cable  Earth and bypass.  Cover or shield any adjacent live Load line components.

  • Page 6: Overview Menu Navigation

    Overview of menu navigation MENU    TEMPERATURE PROGRAM TIME/DATE MANUAL TIME CHECK PERM MODIFY SET DATE CHECK OVERRIDE SU--WI MODIFY HOLIDAY DELETE FORM DATE FORM TIME...
  • Page 7   OPTIONS EXT INPUT TYPE OF CONTROL WALL COMP ILLUMINATION LANGUAGE INFO FACTORY SETTINGS...

  • Page 8: Initial Operation

    Initial operation Set date, time and summer/winter time rule GERMAN SU-WI GB/ 20 03 14  Connect the sensor  IRL/P 9:40 first.  PROGRAMS SU-WI FIN/ RETAINS GR/TR FROST DELETE PROGRAMS  Then perform initial FORM DATE SU-WI CDN 20.1 °C operation (see menu).

  • Page 9: Temperature

    TEMPERATURE Request temperature program MENU for comfort, decrease and frost temperature  TEMPERATURE PROGRAM  Press MENU. TEMPERATURE is displayed.   CHECK CHANGE  Confirm by pressing OK. CHECK is displayed.  Confirm by pressing OK. ACTUAL TEMPERATURE ACTUAL TEMP (COMFORT/REDUCED/FROST) is displayed.

  • Page 10: Program

    PROGRAM Without programmed switching times, the clock thermostat permanently regulates to frost protection temperature. Reset switching time Example: for comfort, decrease and frost temperature  Press MENU. TEMPERATURE is displayed.  Press to select PROGRAM.   Confirm by pressing OK. NEW is displayed. ...
  • Page 11 MENU  TEMPERATURE PROGRAM   CHECK FREE   COMFORT REDUCED FROST HOUR MINUTE    MONDAY TUESDAY WEDNESDAY  COPY SAVE ADD TUESDAY SAVE...

  • Page 12: Request/Change/Delete Switching Time

    Check/modify/delete switching time  Press MENU. TEMPERATURE is displayed.  Press to select PROGRAM.   Confirm by pressing OK. NEW is displayed. to select CHECK/MODIFY or  Press  DELETE.  Confirm by pressing OK. COMFORT is displayed.  Confirm by pressing OK. The first of the entered switching times is displayed. ...
  • Page 13 MENU  PROGRAM TEMPERATURE    CHECK MODIFY   COMFORT REDUCED   NEXT MODIFY DELETE  COMFORT CHANGE SINGLE DELETE ALL HOUR CHANGE COMFORT MINUTE CHANGE BLOCK DELETE BLOCK DELETED...

  • Page 14: Time/Date

    TIME/DATE In the TIME/DATE menu, the submenus TIME, DATE, SU-WI (summer/winter rule), FORM DATE or FORM TIME can be entered/changed.  Press MENU, select TIME/DATE with and follow the indications on the display.  MENU TIME/DATE     ...

  • Page 15: Manual

    MANUAL In the MANUAL menu, manual switch functions are applied. In the submenus PERM, OVERRIDE or HOLIDAY, the manual switchings can be activated/programmed.  Press MENU, use to select MANUAL and follow the indications on the display.  MENU MANUAL ...

  • Page 16: Manual And Permanent Switching

    Override (manual) and permanent switching Override and permanent switching can be set using the menu in MANUAL or in normal mode (automatic screen) by direct push of a button (see figure). Override Activate override (manual control) Reversing the channel status to the next auto- ...

  • Page 17: Options

    OPTIONS In the OPTIONS menu; the submenus EXT INPUT, TYPE OF CONTROL, WALL COMP, LCD ILLUMINATION, LANGUAGE, PIN, FACTORY SETTINGS or INFO can be selected.  Press MENU, use to select OPTIONS and follow the instructions on the display.  MENU OPTIONS ...

  • Page 18: External Input

    External input via the EXT INPUT (see figure page 1) different functions can be set.  Press MENU, use to select EXT INPUT and follow the indications on the display.  4 submenus can be selected: – NOT ACTIVE: The external input has no function –...

  • Page 19: Pin

    PIN code The PIN code can be set using the OPTIONS menu item (see fig.). If you lost the PIN call the Theben hotline. MENU OPTIONS     LANGUAGE WALL COMP NO PIN WITH PIN CURRENT PIN NEW PIN...

  • Page 20: Type Of Control

    Type of control In the submenu TYPE OF CONTROL, the following settings can be selected: – NORMAL (e.g. radiator/convector) – UNDERFLOOR (inertial heating systems) – AIR HEATING (fast heating systems) Thus, the control behaviour can be adjusted to different types of heating. ...

  • Page 21: Wall Compensation

    Wall compensation If the installation location is unfavourable, this may lead to variations in temperature between the detected and actual room temperature (+ if indication too low, – if indication too high). This can be corrected by using wall compensation. ...

  • Page 22: Obelisk Top2 Memory Card

    OBELISK top2 memory card  Insert memory card in the clock thermostat.  Read in/out stored switching times and device setups in the clock thermostat or start Obelisk program.  Remove OBELISK top2 memory card (9070404) after copying and store in the cover.

  • Page 23: Technical Data

    Technical data • Nominal voltage: 230 V~, +10 %/-15 % • Permissible ambient temperature: • Frequency: 50–60 Hz –0 °C ... +50 °C • Standby output: 1.36 W • Protection class: II in accordance with • Switch output: switching of any phase is EN 60730-1 subject to correct permitted installation...

  • Page 24: Service Address/Hotline

    Service address/Hotline Service address Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Phone +49 7474 692-0 Fax +49 7474 692-150 Hotline Phone +49 7474 692-369 Fax +49 7474 692-207 hotline@theben.de Addresses, telephone numbers etc. www.theben.de...
