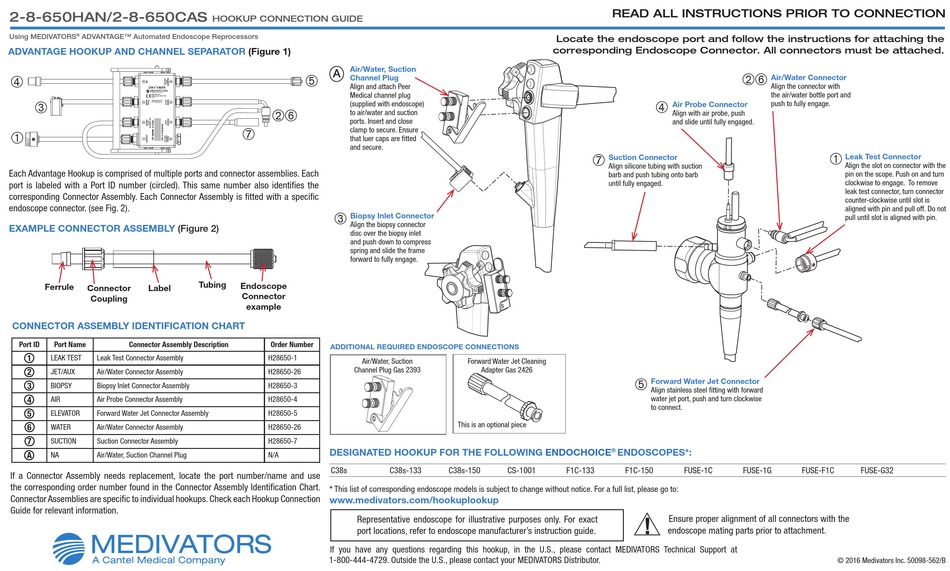

Cantel Medical MEDIVATORS 2-8-650HAN Hookup Connection Manual

2-8-650HAN/2-8-650CAS
Using MEDIVATORS ® ADVANTAGE™ Automated Endoscope Reprocessors
ADVANTAGE HOOKUP AND CHANNEL SEPARATOR



Each Advantage Hookup is comprised of multiple ports and connector assemblies. Each
port is labeled with a Port ID number (circled). This same number also identifies the
corresponding Connector Assembly. Each Connector Assembly is fitted with a specific
endoscope connector. (see Fig. 2).
EXAMPLE CONNECTOR ASSEMBLY (Figure 2)
Ferrule
Connector Label
Coupling

CONNECTOR ASSEMBLY IDENTIFICATION CHART

Port ID Port Name Connector Assembly Description
1
LEAK TEST Leak Test Connector Assembly
2 JET/AUX Air/Water Connector Assembly
3 BIOPSY Biopsy Inlet Connector Assembly
4 AIR Air Probe Connector Assembly
5 ELEVATOR Forward Water Jet Connector Assembly
6
WATER Air/Water Connector Assembly
7
SUCTION Suction Connector Assembly
A
NA Air/Water, Suction Channel Plug
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the Connector Assembly Identification Chart.
Connector Assemblies are specific to individual hookups. Check each Hookup Connection
Guide for relevant information.
HOOKUP CONNECTION GUIDE
(Figure 1)
Air/Water, Suction
A
 Channel Plug
Align and attach Peer
Medical channel plug
(supplied with endoscope)
 to air/water and suction
ports. Insert and close
clamp to secure. Ensure

that luer caps are fitted
and secure.
Biopsy Inlet Connector

Align the biopsy connector
disc over the biopsy inlet
and push down to compress
spring and slide the frame
forward to fully engage.
Tubing
Endoscope
Connector
example
Order Number

ADDITIONAL REQUIRED ENDOSCOPE CONNECTIONS

H28650-1
Air/Water, Suction
Channel Plug Gas 2393
H28650-26
H28650-3
H28650-4
H28650-5
H28650-26
H28650-7
DESIGNATED HOOKUP FOR THE FOLLOWING
N/A
C38s
* This list of corresponding endoscope models is subject to change without notice. For a full list, please go to:
www.medivators.com/hookuplookup
Representative endoscope for illustrative purposes only. For exact
port locations, refer to endoscope manufacturer's instruction guide.
.
If you have any questions regarding this hookup, in the U.S., please contact MEDIVATORS Technical Support at
1-800-444-4729. Outside the U.S., please contact your MEDIVATORS Distributor.
