TEST PROCEDURE

PROBLEM
CONDITION
Home fuse or circuit breaker blows
when power cord is plugged into wall
receptacle.
Monitor fuse blows when power cord
is plugged into wall receptacle.
OFF
Any letters or indicators do not ap-
CONDITION
pear in display when power cord is
first plugged into wall outlet.
Display does not operate properly
when STOP/CLEAR key is touched.
(Buzzer should sound and ":" or time
of day should appear in display.)
Oven lamp does not light when door
is opened.
Oven lamp does not go out when
door is closed.
Oven lamp lights but fan motor and
turntable motor do not operate.
Oven does not go into cook cycle
when START pad is touched
Oven seems to be operating but little
or no heat is produced in oven load.
(Food incompletely cooked or not
cooked at all at end of cook cycle.)
Oven goes into a cook cycle but
COOKING
extremely uneven heating is pro-
CONDITION
duced in oven load (food).
Oven does not cook properly when
programmed for cooking power 50%
mode. (Operates properly on cook-
ing power 100% mode.)
Oven goes into COMPU DEFROST
but food is not defrosted well.
AH sensor does not end during Sen-
sor cooking condition. (Oven does
not shut off after a cup of water is
SENSOR
COOKING boiling by sensor cooking.)
CONDITION
Oven stops at 16 sec. after starting.

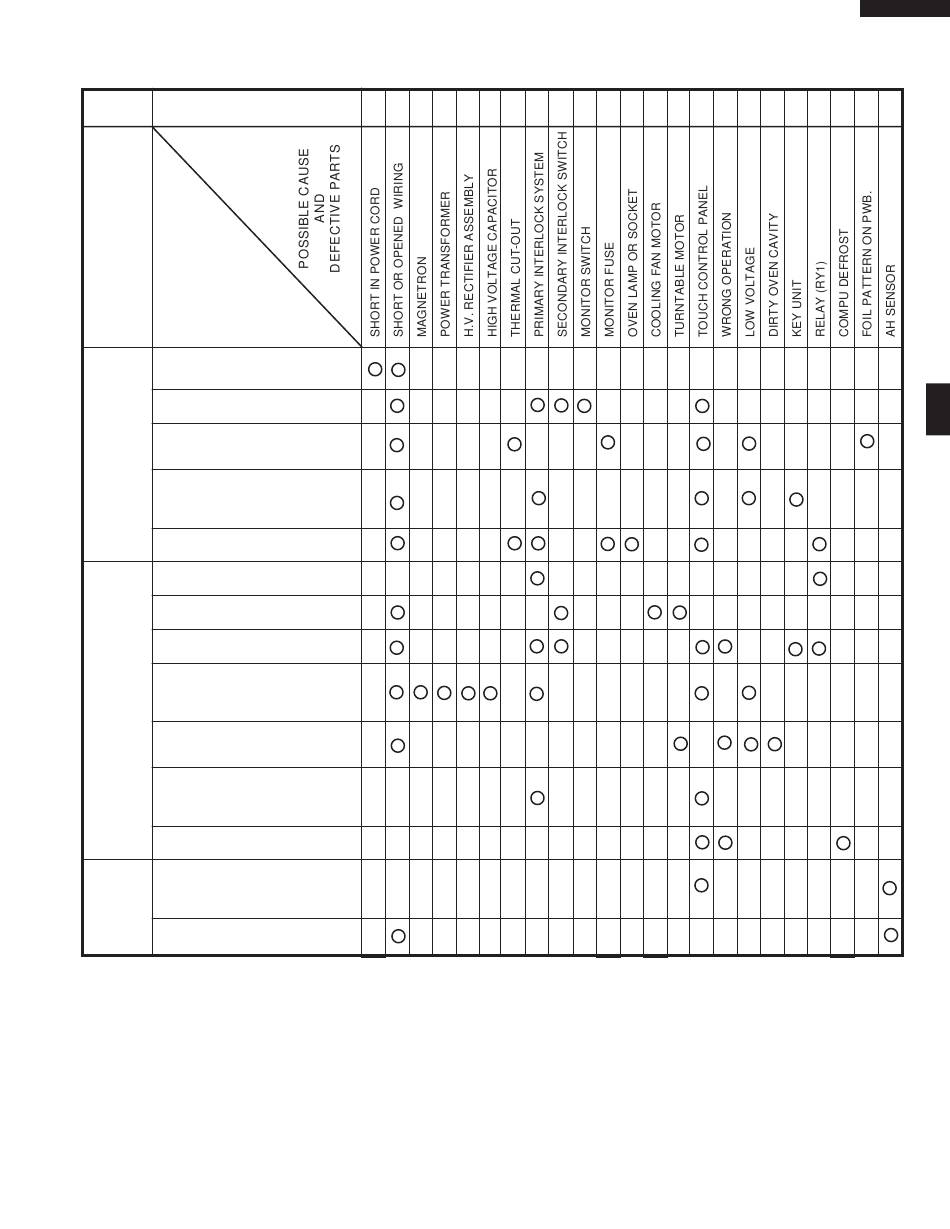

RE RE A B C D E F F G H RE RE CK I CK CK CK J K L M N
11
R-330EK
R-330EW
CK = Check / RE = Replace
