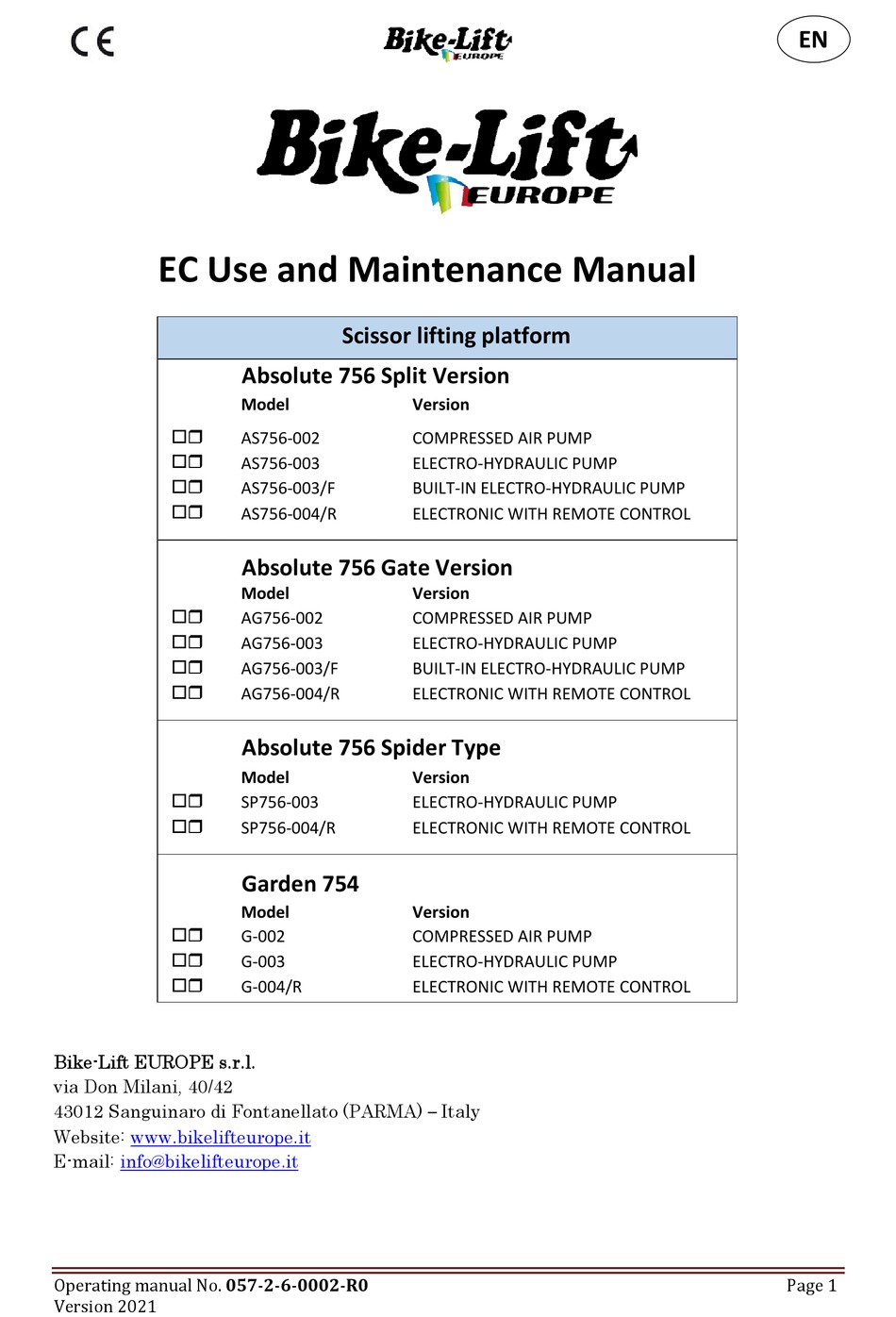

EC Use and Maintenance Manual
Bike-Lift EUROPE s.r.l.
via Don Milani, 40/42
43012 Sanguinaro di Fontanellato (PARMA) – Italy
Website:
www.bikelifteurope.it
E-mail:
info@bikelifteurope.it
Operating manual No. 057-2-6-0002-R0
Version 2021
Scissor lifting platform
Absolute 756 Split Version
Model
AS756-002
AS756-003
AS756-003/F
AS756-004/R
Absolute 756 Gate Version
Model
AG756-002
AG756-003
AG756-003/F
AG756-004/R
Absolute 756 Spider Type
Model
SP756-003
SP756-004/R
Garden 754
Model
G-002
G-003
G-004/R
Version
COMPRESSED AIR PUMP
ELECTRO-HYDRAULIC PUMP
BUILT-IN ELECTRO-HYDRAULIC PUMP
ELECTRONIC WITH REMOTE CONTROL
Version
COMPRESSED AIR PUMP
ELECTRO-HYDRAULIC PUMP
BUILT-IN ELECTRO-HYDRAULIC PUMP
ELECTRONIC WITH REMOTE CONTROL
Version
ELECTRO-HYDRAULIC PUMP
ELECTRONIC WITH REMOTE CONTROL
Version
COMPRESSED AIR PUMP
ELECTRO-HYDRAULIC PUMP
ELECTRONIC WITH REMOTE CONTROL
EN
Page 1
Advertisement
Table of Contents
Related Manuals for Bike-Lift Absolute 756
Summary of Contents for Bike-Lift Absolute 756
- Page 1 EC Use and Maintenance Manual Scissor lifting platform Absolute 756 Split Version Model Version AS756-002 COMPRESSED AIR PUMP AS756-003 ELECTRO-HYDRAULIC PUMP AS756-003/F BUILT-IN ELECTRO-HYDRAULIC PUMP AS756-004/R ELECTRONIC WITH REMOTE CONTROL Absolute 756 Gate Version Model Version ...
-
Page 2: Table Of Contents
Machine name ..........................11 Machine identification ........................11 Machine description ........................12 Intended use ............................ 13 Technical specifications ........................14 2.5.1 ABSOLUTE 756 SPLIT VERSION ....................14 2.5.2 ABSOLUTE 756 GATE VERSION ....................15 2.5.3 ABSOLUTE 756 SPIDER TYPE ....................16 2.5.4 GARDEN 754 .......................... - Page 3 Transport and handling section ...................... 22 Transport, handling and storage ...................... 22 Packaging and transport ........................22 Unloading and handling ........................22 Receipt and check ..........................23 Storage ............................. 23 Installation section ........................... 24 Power ............................... 24 Putting into service .......................... 25 Dismantling/scrapping section ......................
- Page 4 Accessories ............................41 SPARE PARTS - TECHNICAL DRAWINGS ......................42 ABSOLUTE 756 SPLIT VERSION ......................43 ABSOLUTE 756 GATE VERSION ......................44 ABSOLUTE 756 SPIDER TYPE ......................45 GARDEN 754............................. 46 Operating manual No. 057-2-6-0002-R0 Page 4 Version 2021...
-
Page 5: Information Section
Information section 1.1 Preface The EC Use and Maintenance Manual is a document issued by Bike-Lift Europe s.r.l. as an integral part of the Machine. The purpose of this publication is to provide the operator with efficient and safe instructions regarding the use and maintenance. -
Page 6: Prohibitions
All worn parts are excluded from the warranty. The warranty is limited to the replacement, ex-works Bike-Lift Europe s.r.l, of those parts that are recognized as defective by Bike-Lift Europe s.r.l due to a material or manufacturing defect and do not include labor or travel expenses required for their replacement. -
Page 7: Manufacturer Identification
1.4 Manufacturer identification Bike-Lift EUROPE s.r.l. via Don Milani, 40/42, 43012 Sanguinaro di Fontanellato (PARMA) – Italy E-mail: Website: www.bikelifteurope.it info@bikelifteurope.it Tel: 0039-0521-827091 Fax: 0039-0521-827064 1.5 Technical assistance and spare parts To order spare parts, it is recommended to specify exactly the following data: ... -
Page 8: Ec Declaration Of Conformity
Company: Bike-Lift EUROPE S.r.l. Address: Via Don Milani, 40/42 - 43012 Sanguinaro di Fontanellato (PR) - Italy Declares under its sole responsibility that the machine: Designation: Lifting platform ABSOLUTE 756 Gate/ABSOLUTE 756 Split/Garden 754 Model: AG756-002/AS756-002/G754-002 Serial number: Year: Function:... -
Page 9: Normative References
1.7 Normative references The machine is identified by the CE marking drawn up according to the specifications of the Machinery Directive 2006/42/EC and subsequent updates. Reference Title Machinery Safety Directive 2006/42/EC Electromagnetic Compatibility Directive (EMC) 2014/30/EC Low Voltage Directive (LVD) 2014/35/EU Safety of machinery - General principles of design - Risk EN ISO 12100 (2010) -
Page 10: Key
1.8 Key LIFTING PLATFORM: hydraulic/electric/pneumatic scissor lifting system for the maintenance and repair of motorcycles and scooters. The specific identification of the lifting platform is indicated on the cover. OPERATOR: In compliance with Directive 2006/42/EC and subsequent updates, it is specified that the term "operator"... -
Page 11: Machine Description
Scissor lifting platform for the maintenance and repair of motorcycles and scooters with a maximum capacity of 750 kg. The handling of the Bike-Lift-Europe s.r.l. lifting platforms can be done through one of the following systems: foot operated hydraulic system;... -
Page 12: Machine Description
2.3 Machine description The machine known as Motorbike Lifting Platform is a suitable equipment to support motorcycles during the maintenance and repair phase in a comfortable and safe way. The basic parts of the lifting platform (see Figure 2) are: Figure 2 –... -
Page 13: Intended Use
2.4 Intended use Disseminate the instructions described in this chapter to all personnel involved in the preparation and use of the machine. The machine is intended for lifting motorcycles for maintenance purposes. The machine has been designed and built for the specified use; a different use and non-compliance with the technical parameters set by the Manufacturer may be dangerous for the operators. -
Page 14: Technical Specifications
82x51 cm Total space of the lift 230x92 cm Weight 265 kg The following additional data are available depending on the type of handling: ABSOLUTE 756 SPLIT VERSION – AS756-002 2.5.1.1 AIR PUMP (AIR-HYDRAULIC) PARAMETER VALUE Air pressure 7-10 Bar Air consumption 300 Lt/Min. -
Page 15: Absolute 756 Gate Version
82x51 cm Total space of the lift 230x92 cm Weight 260 kg The following additional data are available depending on the type of handling: ABSOLUTE 756 GATE VERSION – AG756-002 2.5.2.1 AIR PUMP (AIR-HYDRAULIC) PARAMETER VALUE Air pressure 7-10 Bar Air consumption 300 Lt/Min. -
Page 16: Absolute 756 Spider Type
Total space of the lift 230x160 cm Weight 290 kg The following additional data are available depending on the type of handling: 2.5.3.1 ABSOLUTE 756 SPIDER TYPE – SP756-003 ELECTRO-HYDRAULIC CONTROL UNIT PARAMETER VALUE 230Volt- -50Hz Europe Available power supplies... -
Page 17: Garden 754
2.5.4 GARDEN 754 (see exploded diagram attached to this manual) GARDEN 754 - VERTICAL SCISSOR LIFTING PLATFORM PARAMETER VALUE Maximum loading capacity 750 kg Maximum height 130 cm Minimum height 19 cm Safety positions number Lifting surface size 215x100 cm Run-up ramp size 82x24 cm Total space of the lift... -
Page 18: Safety Section
Safety section 3.1 Environmental working values The use environment of the machine must be well lit, must not present explosion hazards of any kind and must be protected from atmospheric precipitations. The machine works properly within the following values: Ambient temperature between 5° and 40° C; ... -
Page 19: Operator Protections
Finally, we remind you that the handling, installation, use, maintenance and putting out of service of the machine represent a source of danger if these operations are not performed in compliance with the requirements of this Manual or without the necessary caution and attention required. (More details regarding the Risk Assessment to be requested from the Manufacturer). -
Page 20: Pictograms
weigh down the weight of ALWAYS keep the mechanical lock hooked during work, in order to the structure and of the vehicle standing on it even on the toothed bar of the base. During the use of the lifting platform it is very important to pay the utmost attention to the ascent and descent maneuvers. -
Page 21: Additional Safety Systems For The Built-In Version
3.7 Additional safety systems for the built-in version For the built-in version, the lifting platform presents risks of crushing and getting stuck inside the housing. During the ascent/descent phase the operator is required to distance from the lifting platform according to the length allowed by the control panel cable. -
Page 22: Transport And Handling Section
Transport and handling section 4.1 Transport, handling and storage CAUTION: Disseminate the instructions described in this chapter to all personnel involved in the transport and handling of the machine. For safety reasons, the moving parts must be locked before transport. 4.2 Packaging and transport The machine is packed for transport directly from the Manufacturer. -
Page 23: Receipt And Check
It is recommended that the unloading or handling operations to be carried out with a forklift truck by a single Operator equipped with workshop gloves, safety footwear and protective helmet, as required by current regulations. This Operator must pay maximum attention to all transport phases. Do not allow any other person to stand in the operation area of the forklift truck in order to prevent the accidental fall of the boxes. -
Page 24: Installation Section
Installation section The machine must be installed in compliance with the safety regulations and instructions included in this chapter. CAUTION: COMPLETELY remove the wooden sleepers located under the lifting platform by removing the fixing screws before using the machine. The machine does not need a basis, but requires a flat and horizontal floor. The floor must be able to support a minimum weight of 500 kg/m •... -
Page 25: Putting Into Service
WARNING: In the electronic or electro-hydraulic version, the lifting platform is equipped with an electronic board that transforms the low-voltage current (to prevent the electrocution risk). A fuse calibrated on the amperage of the stable 230V power supply is located inside this board. It is forbidden to replace/tamper with this fuse with one of a higher resistance/amperage 5.2 Putting into service... -
Page 26: Dismantling/Scrapping Section
Dismantling/scrapping section 6.1 Dismantling Follow the Regulations regarding the materials dismantling in force in the country where the machine will be dismantled. Here are some useful indications in case you must disassemble the machine to reassemble it in other areas, store it or demolish it. 6.2 Mechanical dismantling Before proceeding with mechanical dismantling of the machine, carefully clean the whole structure (see Cleaning and Maintenance). -
Page 27: Operation Section
Operation section – Figure 6 general model of a lifting platform 7.1 Loading operations Before installing the vehicle on the platform it is essential to use the wheel lock (Figure 6, [1]), to check that the work surface (Figure 6, [2]) is completely lowered and the run-up ramp (Figure 6, [3]) is properly positioned. -
Page 28: Unloading Operations
7.2 Unloading operations 1- Reassemble the run-up ramp; 2- Make sure that the scissor sliding guides are free from foreign bodies (bolts or other objects would stop the descent and could cause serious damage or dangerous jolts); (Figure 6, Use the pump to raise the lifting platform with about 3 cm then release the safety bar [4]) through the special lever placed sideways. -
Page 29: Compressed Air Pump - Element Code - 002
7.3.2 COMPRESSED AIR PUMP - element code - 002 The pump (Figure 8) is a variable calibration pressure multiplier that allows you to obtain a hydraulic flow from a pneumatic supply. DESCENT ASCENT – Figure 8 compressed air pump Read carefully the attached use and maintenance manual: Air pump C.M.O. -
Page 30: Electronic With Remote Control - Element Code 004/R 30
7.3.4 ELECTRONIC WITH REMOTE CONTROL - element code 004/R Lifting is carried out by using a remote control connected to the hydraulic pump via a remote control radio receiver. ASCENT DESCENT – Figure 10 remote control button panel with maintained action control The remote control is equipped with two buttons with maintained action that allow the ascent and descent. -
Page 31: Maintenance Section
Maintenance sectio The maintenance operation is the absolute prerogative of professional operators and specialized technicians, in compliance with the requirements of Machinery Directive 2006/42/ EC and subsequent updates. As routine maintenance, the following checks/operations must be carried out once a month: ... -
Page 32: Piston Replacement
8.3 Piston replacement In case the hydraulic piston must be replaced, proceed as follows: 1- Lower the lifting platform to the minimum height position; 2- Maintain the lowering control of the lift for another 6 seconds, to empty the oil; 3- A second operator must lift the lifting platform by hand up to about 500 mm from the ground;... -
Page 33: Cleaning
8.4 Cleaning 8.4.1 Initial cleaning The machine does not require particular initial cleaning, but it is a good practice to clean the transit areas of the motorcycles by removing the oils and dust to prevent the slip during loading. Wear water-repellent gloves. Perform the cleaning operations wearing anti-cut gloves resistant to the substances used (follow the safety data sheet). -
Page 34: Cleaning Of The Work Areas
When implementing the suggested remedy, always follow the instructions described in the Instructions to which the remedy refers. Bike-Lift Europe s.r.l. will solve all the problems that cannot be eliminated by means of the attached instructions. The motor housing (Figure 13) that activates and moves the platform is placed at the base of the piston. -
Page 35: Foot Pump
8.5.1 FOOT PUMP PROBLEM PROBABLE CAUSE REMEDY Oil leak in the hydraulic system Check the leak in the system and repair The pump works Check the leak in the pump and contact but does not go Internal leakage of the pump the manufacturer under pressure (Figure 14) and fill it... - Page 36 Oil plug – – Figure 14 Foot pump (external supply) check the attached manual Operating manual No. 057-2-6-0002-R0 Page 36 Version 2018...
-
Page 37: Air Pump
8.5.2 AIR PUMP PROBLEM PROBABLE CAUSE REMEDY The pump does The compressed air line is Verify that compressed enters the pump not start closed or blocked Check that the supply pressure (air) is Air pressure too low between 6 and 10 bar pump locks under load... - Page 38 Air inlet connection Piston inlet inside the connection pump – Figure 15 compressed air pump Operating manual No. 057-2-6-0002-R0 Page 38 Version 2018...
-
Page 39: Electric Pump
Hydraulic pump Contact the dealer or Bike-Lift - Europe s.r.l. problems The emergency stop (red button in case of the built-in Release the red button on the button panel lifting platform version) on by turning it clockwise. - Page 40 PROBLEM PROBABLE CAUSE REMEDY The emergency stop (red button in case of the built-in Release the red button on the button panel lifting platform version) on by turning it clockwise the button panel is inserted Operating on Check the mains connection plug No voltage the button panel the lifting...
-
Page 41: Accessories
Accessories ABSOLUTE 756 SPLIT VERSION BASIC EQUIPMENT PARAMETER VALUE Motorcycle wheel stop bar 1 pc Run-up ramp 1 pc Tool-holding side wings 2 pcs ABSOLUTE 756 GATE VERSION BASIC EQUIPMENT PARAMETER VALUE Motorcycle wheel stop bar 1 pc Run-up ramp... - Page 42 NOTES _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ Operating manual No. 057-2-6-0002-R0 Page 42 Version 2018...
- Page 43 NOTES _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ Operating manual No. 057-2-6-0002-R0 Page 43 Version 2018...
- Page 44 NOTES _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ Operating manual No. 057-2-6-0002-R0 Page 44 Version 2018...
-
Page 45: Absolute 756 Split Version
9.1 ABSOLUTE 756 SPLIT VERSION Operating manual No. 057-2-6-0002-R0 Page 45 Version 2018... -
Page 46: Absolute 756 Gate Version
9.2 ABSOLUTE 756 GATE VERSION Operating manual No. 057-2-6-0002-R0 Page 46 Version 2018... - Page 47 9.3 ABSOLUTE 756 SPIDER TYPE Operating manual No. 057-2-6-0002-R0 Page 47 Version 2018...
-
Page 48: Garden 754
9.4 GARDEN 754 Operating manual No. 057-2-6-0002-R0 Page 48 Version 2018... - Page 49 SPARE PARTS - TECHNICAL DRAWINGS Operating manual No. 057-2-6-0002-R0 Page 49 Version 2018...
- Page 50 Operating manual No. 057-2-6-0002-R0 Page 50 Version 2018...
- Page 51 Operating manual No. 057-2-6-0002-R0 Page 51 Version 2018...
- Page 52 Operating manual No. 057-2-6-0002-R0 Page 52 Version 2018...
- Page 53 Operating manual No. 057-2-6-0002-R0 Page 53 Version 2018...
- Page 54 Operating manual No. 057-2-6-0002-R0 Page 54 Version 2018...
