CONTACT US FIRST
CONTACT US FIRST
sauder.com
sauder.com
sauder.com
BEFORE MAKING ANY RETURNS TO THE STORE.
BEFORE MAKING ANY RETURNS TO THE RETAILER.
sauder.com/service
Visit
Prefer the phone? Give us a ring at
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)

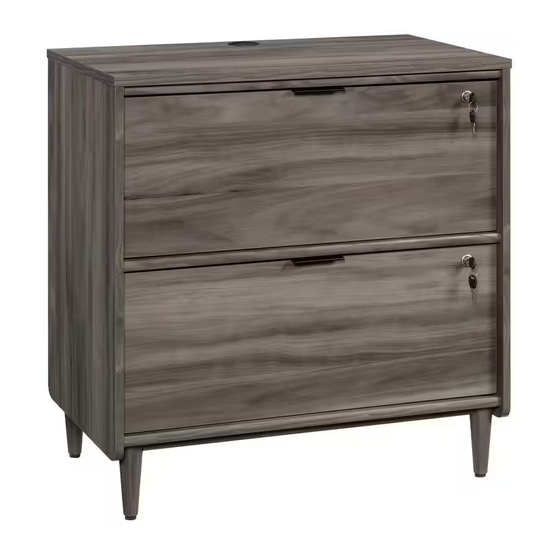

Lateral File
Clifford Place Collection | Model 429501
Sauder.com
Share your journey!
to order replacement parts, view video assembly tips, or chat with a live rep.
1-800-445-1527
.
Congratulations. You
are now an adult.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-24
Français pg 25-28
Español pg 29-32
Lot # 557401
Purchased: __________________
11/09/20
Advertisement
Related Manuals for Sauder Clifford Place 429501
Summary of Contents for Sauder Clifford Place 429501
- Page 1 CONTACT US FIRST CONTACT US FIRST sauder.com sauder.com sauder.com BEFORE MAKING ANY RETURNS TO THE STORE. BEFORE MAKING ANY RETURNS TO THE RETAILER. sauder.com/service Visit to order replacement parts, view video assembly tips, or chat with a live rep. 1-800-445-1527 Prefer the phone? Give us a ring at Customer Service is available Monday-Friday - 9 a.m.
- Page 2 Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identification Assembly Steps 5-24 Français 25-28 Español 29-32 Safety 33-34 Warranty Page 2 www.sauder.com/service 429501...
- Page 3 LEFT END (1) BOTTOM (1) DRAWER BRACE (2) TOP (1) BOTTOM MOLDING (2) DRAWER FRONT (2) TOP MOLDING (1) LEFT DRAWER SIDE (2) FOOT (4) UPPER BACK (1) DRAWER BACK (2) BRACE (1) RIGHT DRAWER SIDE (2) 429501 www.sauder.com/service Page 3...
- Page 4 BLACK 1-1/8" FLAT HEAD SCREW - 9 BLACK 1-1/2" FLAT HEAD SCREW - 14 SILVER 5/8" FLAT HEAD SCREW - 8 SILVER 1/2" FLAT HEAD SCREW - 4 BLACK 1/2" PAN HEAD SCREW - 36 BLACK 1/2" FLAT HEAD SCREW - 4 Page 4 www.sauder.com/service 429501...
- Page 5 Step 1 Look for this icon. It means a video assembly tip is available at www.sauder.com/service/tips Find the numbered video or scan the QR code. å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor.
- Page 6 BOTTOM (H). å Flip the BOTTOM (H) over. å Turn and tighten four FEET (P) into the threaded holes in the BOTTOM (H). å Turn four ADJUSTABLE GLIDES (16) into the threaded holes in the FEET (P). Page 6 www.sauder.com/service 429501...
- Page 7 Fasten the BOTTOM MOLDINGS (I) to the BOTTOM (H). Use six BLACK 1-1/8" FLAT HEAD SCREWS (22). å NOTE: Be sure the SHORT WOODEN DOWELS insert into the holes in the BOTTOM MOLDINGS. BLACK 1-1/8" FLAT HEAD SCREW (6 used in this step) 429501 www.sauder.com/service Page 7...
- Page 8 Step 4 å Turn twenty ANGLED HEAD CAM SCREWS (2) into the ENDS (A and B) and TOP (C). Angled head (20 used) Remember: Righty tighty. Lefty loosey. Page 8 www.sauder.com/service 429501...
- Page 9 NOTE: The EXTENSION SLIDES (R) will be used later for the DRAWERS. Pull down on the black release lever and pull the SLIDE from the RAIL. Open end Use these holes. Open end BLACK 1/2" PAN HEAD SCREW (12 used in this step) 429501 www.sauder.com/service Page 9...
- Page 10 Fasten the LOCK BRACKETS to the BRACE (F) and TOP MOLDING (D) as shown. Use four SILVER 1/2" FLAT HEAD SCREWS (24). SILVER 1/2" FLAT HEAD SCREW (4 used in this step) LOCK BRACKET from LOCK PACK (15) Page 10 www.sauder.com/service 429501...
- Page 11 ANTI-TIP KIT. å Insert four LONG WOOD DOWELS (5) into the LOWER BACK (G). å Fasten the UPPER BACK (E) to the LOWER BACK (G) by pushing it over the WOOD DOWELS in the LOWER BACK. 429501 www.sauder.com/service Page 11...
- Page 12 BRACE. S u r f a c H I D D E N i t h S u r Notch f a c H I D D E N i t h Surface with HIDDEN CAMS Page 12 www.sauder.com/service 429501...
- Page 13 LOWER BACK insert into the holes in the BOTTOM. å Fasten the BOTTOM (H) to the LOWER BACK (G). Use two BLACK 1-1/2" FLAT HEAD SCREWS (21). Rounded edge BLACK 1-1/2" FLAT HEAD SCREW (2 used in this step) 429501 www.sauder.com/service Page 13...
- Page 14 Fasten the LEFT END (B) to the UPPER BACK (E), BRACE (F), LOWER BACK (G) and BOTTOM (H). Tighten seven HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the LEFT END insert into the holes in the BACKS, BOTTOM and BRACE. Page 14 www.sauder.com/service 429501...
- Page 15 BLACK 1-1/8" FLAT HEAD SCREWS (22). your drink. å NOTE: Be sure the SHORT WOOD DOWELS in the TOP insert into the holes in the TOP MOLDING. BLACK 1-1/8" FLAT HEAD SCREW (3 used in this step) Rounded edge 429501 www.sauder.com/service Page 15...
- Page 16 DRAWER SIDES (J and L) and Straight head DRAWER BRACE (N). (12 used) Arrow Hole Arrow The arrow in the HIDDEN (12 used) CAM must point toward the hole in the edge of the board. Page 16 www.sauder.com/service 429501...
- Page 17 Fasten a DRAWER BACK (K) to the DRAWER SIDES (J and L) and DRAWER BRACE (N). Use six BLACK 1-1/2" FLAT HEAD SCREWS (21). å NOTE: Be sure the DRAWER BOTTOM (M) inserts into the groove of the DRAWER BACK (K). å Repeat this step for the other drawer. 429501 www.sauder.com/service Page 17...
- Page 18 SIDES (J and L). Use six BLACK 1/2" PAN HEAD SCREWS (25). å Repeat this step for the other drawer. Open end Use these holes. Open end BLACK 1/2" PAN HEAD SCREW (12 used in this step) Open end Page 18 www.sauder.com/service 429501...
- Page 19 BLACK 1/2" PAN HEAD SCREW BLACK 1/2" FLAT HEAD SCREW (12 used for the NOTCHED FILE GLIDES) (4 used for PULLS) The tab on the Lock should be on top. SILVER 5/8" FLAT HEAD SCREW (8 used for the LOCKS) 429501 www.sauder.com/service Page 19...
- Page 20 Push two FILE HANGERS (10) onto the NOTCHED FILE GLIDE (13) and LONG FILE GLIDE (12). å Push a LOCK RING onto the LOCK as shown. å Repeat this step for the other drawer. Lock Ring from the LOCK PACK (15) Page 20 www.sauder.com/service 429501...
- Page 21 Fasten the straps to the DRAWER BACK (K) using a barrel nut, WASHER (14), and machine screw as shown in the large diagram to the right. barrel nut First, loop the straps through the HOOKS. First, loop the straps through the HOOKS. 429501 www.sauder.com/service Page 21...
- Page 22 WASHER (14), and machine screw as shown in the large diagram to the right. strap machine screw STOP Before you proceed washer to the next step If you are attaching the 429505 Hutch to your unit, build the Hutch barrel nut now. Page 22 www.sauder.com/service 429501...
- Page 23 Fasten the TOP (C) to the ENDS (A and B) and UPPER BACK (E). Tighten six HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the ENDS and UPPER BACK insert into the holes in the TOP. This hole must be here. 429501 www.sauder.com/service Page 23...
- Page 24 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. And to celebrate, why not share your success story at sauder.com or 40 lbs. 40 lbs.
- Page 25 élément et REFERENCE DESCRIPTION QUANTITÉ REFERENCE DESCRIPTION QUANTITÉ conserver le livret pour future référence. Pour contacter Sauder en EXTRÉMITÉ DROITE ..........1 GRANDE EXCENTRIQUE ESCAMOTABLE ............20 ce qui concerne cet EXTRÉMITÉ GAUCHE ..........1 élément, faire référence VIS D'EXCENTRIQUE AVEC DESSUS ................1 TÊTE EN ANGLE ............20...
- Page 26 VIS TÊTE PLATE 38 mm NOIRES (21). pour trouver les autres trous qui sont alignés sur les trous dans les EXTRÉMITÉS. Faire tourner une VIS dans ces trous. REMARQUE : Les COULISSES D'EXTENSION (R) seront utilisées ultérieurement pour les TIROIRS. Page 26 www.sauder.com/service 429501...
- Page 27 à la droit. ÉTAPE 14 Fixer les COULISSES D'EXTENSION (R) aux CÔTÉS DE TIROIR (J et L). Utiliser six VIS TÊTE GOUTTE DE SUIF 13 mm NOIRES (25). Répéter cette étape pour l'autre tiroir. 429501 www.sauder.com/service Page 27...
- Page 28 Fixer le DESSUS (C) aux EXTRÉMITÉS (A et B) et à l’ARRIÈRE SUPÉRIEUR (E). Serrer six EXCENTRIQUES ESCAMOTABLES. REMARQUE : S’ a ssurer de bien insérer les CHEVILLES EN BOIS des EXTRÉMITÉS et ARRIÈRE SUPÉRIEUR dans les trous du DESSUS. Page 28 www.sauder.com/service 429501...
- Page 29 Si EXTREMO DERECHO ..........1 PASADOR DE MADERA LARGO ....4 necesita ponerse en PASADOR DE MADERA .........4 EXTREMO IZQUIERDO ..........1 contacto con Sauder en PASADOR DE MADERA CORTO ....6 PANEL SUPERIOR ............1 cuanto a esta unidad, refiérase al número TIRADOR ................2 MOLDURA DE PANEL SUPERIOR ....1...
- Page 30 TORNILLOS NEGROS DE CABEZA PERDIDA de 38 mm (21). con los agujeros de los EXTREMOS. Atornille un TORNILLO dentro de estos agujeros. NOTA: Las CORREDERAS DE EXTENSIÓN (R) se utilizarán más tarde para los CAJONES. Page 30 www.sauder.com/service 429501...
- Page 31 Repita este paso para el otro cajón. PASO 14 Fije las CORREDERAS DE EXTENSIÓN (R) a los LADOS DE CAJÓN (J y L). Utilice seis TORNILLOS NEGROS DE CABEZA REDONDA de 13 mm (25). Repita este paso para el otro cajón. 429501 www.sauder.com/service Page 31...
- Page 32 Fije el PANEL SUPERIOR (C) a los EXTREMOS (A y B) y al DORSO SUPERIOR (E). Apriete seis EXCÉNTRICOS ESCONDIDOS. NOTA: Asegúrese de insertar los PASADORES DE MADERA de los EXTREMOS y del DORSO SUPERIOR en los agujeros del PANEL SUPERIOR. Page 32 www.sauder.com/service 429501...
- Page 33 Les téléviseurs peuvent être très un téléviseur. téléviseur. lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. 429501 www.sauder.com/service Page 33...
- Page 34 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y hacerlos propensos a volcarse hacia adelante. Page 34 www.sauder.com/service 429501...
- Page 35 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
- Page 36 BEFORE MAKING ANY RETURNS TO THE RETAILER. So, how did it go? Dear Valued Customer: Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
