Summary of Contents for August DVB482

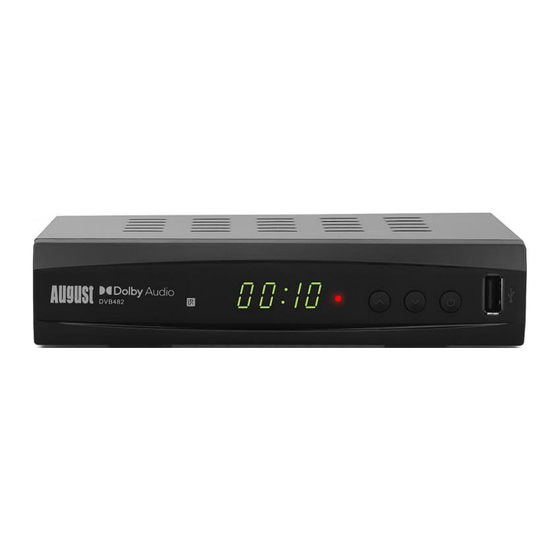

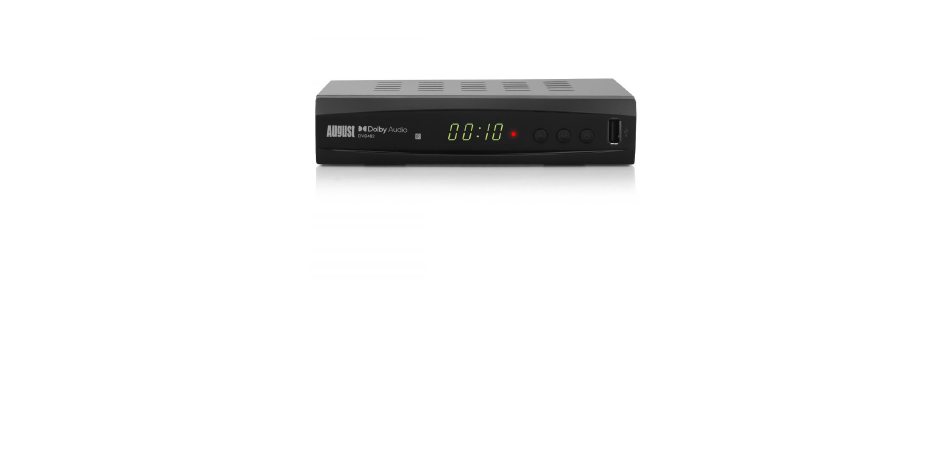

- Page 1 Set-Up Guide August DVB482 Dual-Tuner Set Top Box...
- Page 2 Check You Have All the Components • DVB482 Set Top Box • HDMI Cable • Instruction Manual • Remote Control • Batteries • UK / EU Plug Adapter...
-
Page 3: Connecting Your Device
Connecting your Device Connect the Power Adapter to a mains outlet and the rear of the DVB482... - Page 4 Connecting your Device Connect the HDMI or SCART to the DVB482 and to your TV / Display...
- Page 5 Connecting your Device Connect an aerial cable to the RF IN port to receive signal from your aerial No Aerial Cables need to connect to your TV!
- Page 6 Insert the batteries into the remote and Power On the Set Top Box...
- Page 7 The Device will ask to Scan. Make sure "Aerial Power" is "ON" Wait for the scan to complete...
- Page 8 Use the "EPG" Button to browse channels...
- Page 9 Set Up Recording with a USB Insert a USB into the Navigate to "Media Player" front of the Box Press the Menu button...
- Page 10 Set Up Recording with a USB Select "USB Device Information...
- Page 11 Set Up Recording with a USB Format the drive with the Yellow button on your remote Select "NTFS" Formatting the USB will remove all data. Please ensure no vital data will be lost from the USB before formatting Once formatted, you may begin scheduling recordings...
- Page 12 Schedule a recording inside the EPG with the Red Button Highlight the show, press Red, and a small red circle will show it is scheduled for recording...
- Page 13 To Remove a Scheduled Recording Press the Blue "Timer" Button to access the schedule menu Select a recording and set Timer Mode to "Off", then Save...
- Page 14 Schedule Manual Times You can schedule recordings without the EPG, for any time in the future. Press the Blue "Timer" button and select a recording slot Set the Recording type to "Once", "Daily", "Weekly" etc. Set the Recording Time using the number pad, and the recording date with the number pad Press Save when the recording is...
- Page 15 For a full explanation of all features, please refer to the manual...
Need help?
Do you have a question about the DVB482 and is the answer not in the manual?
Questions and answers
no entiendo como se puede grabar en un usb dos canales a la vez
The August DVB482 can record two live TV channels at the same time because it has a dual tuner. This allows it to tune into and record from two different channels simultaneously. To do this, you need to connect a USB drive to the device, which is used as the storage for the recordings. The USB should be formatted to the NTFS file format using a Windows computer for compatibility and better performance.
This answer is automatically generated
Why are no menus available in media player
There are no menus available in the August DVB482 media player likely because the HDMI/SCART cable is not fully inserted or the TV is not set to the correct source. Check the cable connections and ensure the TV input matches the connected port.
This answer is automatically generated
