Date of last update: Feb-23
Ref: TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00
Application Engineering Europe
XC P
C
– BIOS U
RO
ONTROLLER
PDATE
Q
U
'
M
UICK
SER
S
ANUAL
1. Connect laptop to controller:
a. Identify the IP address of the controller.

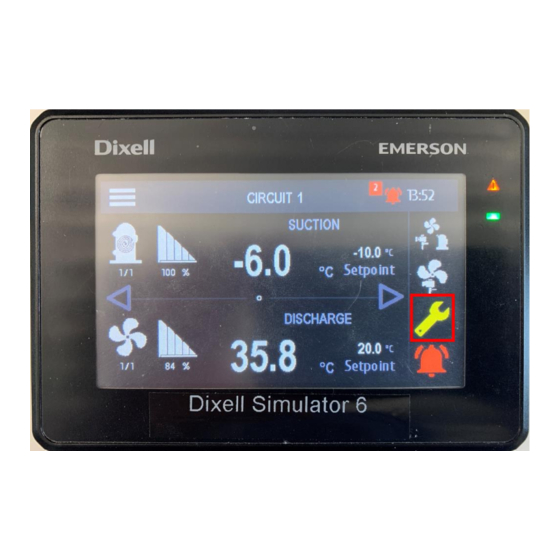

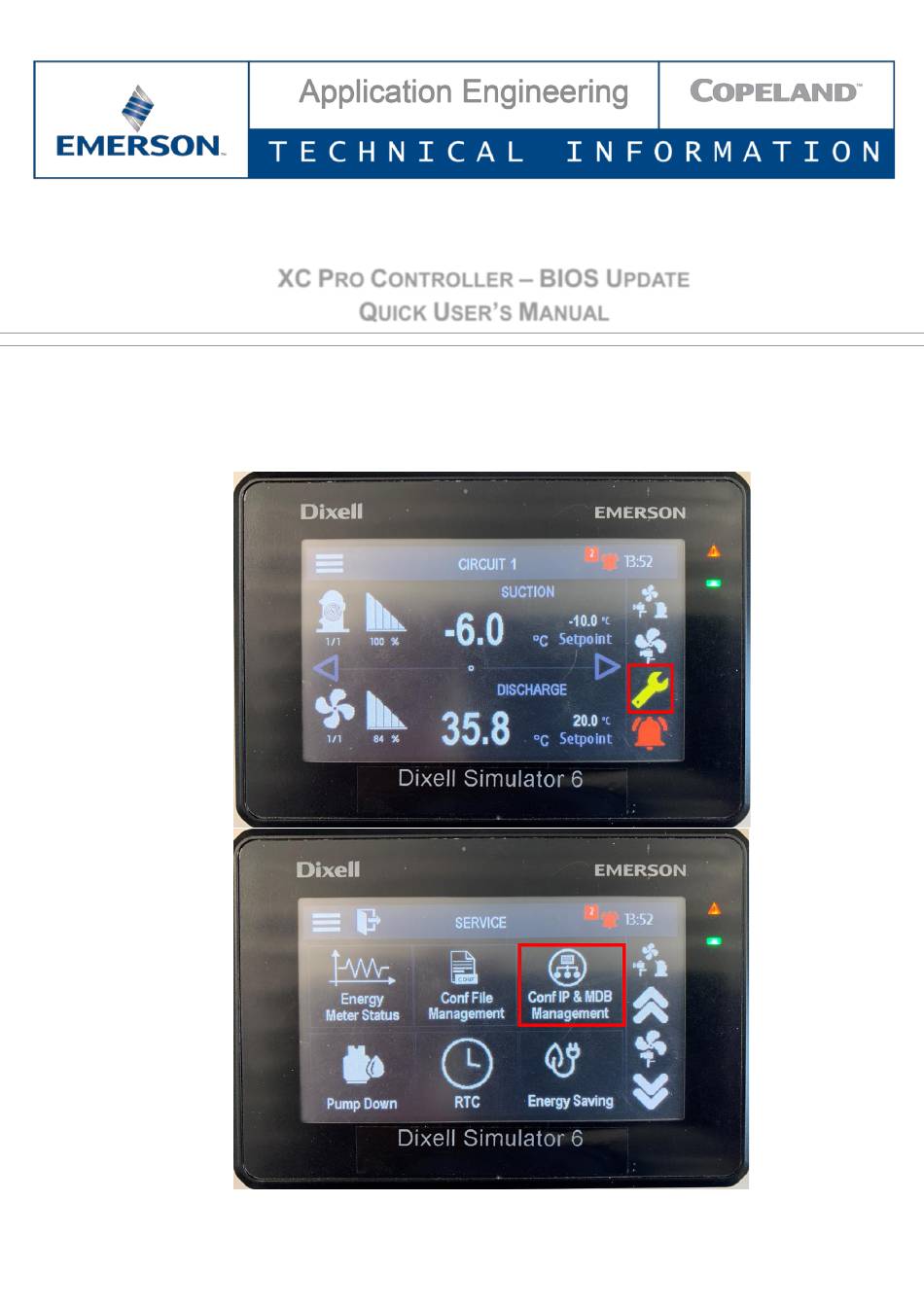

i. Go to the "Service" menu on the Visotouch display connected to the controller (yellow
wrench icon) → Scroll down to "Conf IP & MDB Management" → The IP address is shown
in this menu.
ii. The default IP address of the controller is 192.168.0.250.
TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00
1/6
Advertisement
Table of Contents
Related Manuals for Emerson COPELAND XC PRO
Summary of Contents for Emerson COPELAND XC PRO
- Page 1 Date of last update: Feb-23 Ref: TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 Application Engineering Europe XC P – BIOS U ONTROLLER PDATE ’ UICK ANUAL 1. Connect laptop to controller: a. Identify the IP address of the controller. i. Go to the "Service" menu on the Visotouch display connected to the controller (yellow wrench icon) →...
- Page 2 b. Connect the laptop to the controller with a crossover cable. c. The laptop can only communicate with the controller if they are in the same network. i. Disconnect the laptop from your company data network. ii. In the Windows environment go to "Network & Internet Settings", then "Change adapter options".
- Page 3 iv. Click on "Internet Protocol Version 4 (TCP/IPv4)" and "Properties". v. In "Properties" set the IP parameters according to the IP address of the controller. vi. Click on "OK" to confirm. TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00...
- Page 4 d. Open the webpage of the controller. i. Go to the browser. ii. Enter the IP address of the controller. iii. Enter username "admin" and password "Dixell" to login. e. Open "Info" page on the left. TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00...
- Page 5 2. Load empty application: a. Prepare USB stick with following folders and correct isadix file in folder "app". Contact the Emerson Application Engineering department for the correct isadix file. b. Connect USB stick to the controller. c. Session will become invalid (after a few minutes).
- Page 6 Emerson Climate Technologies GmbH and/or its affiliates (collectively "Emerson"), as applicable, reserve the right to modify the design or specifications of such products at any time without notice.
