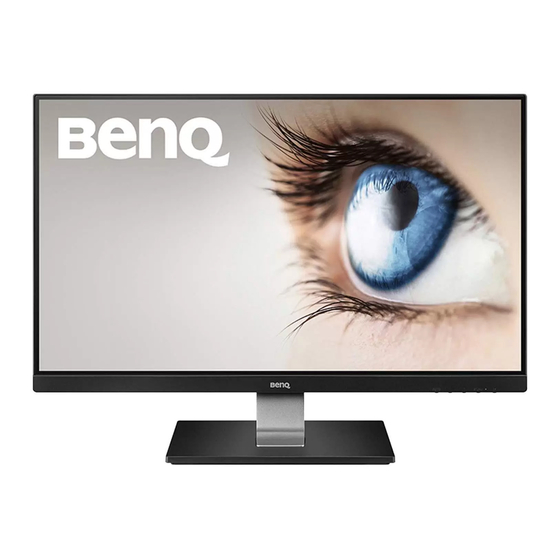

- Page 1 GW2406Z LCD Monitor User Manual...
-
Page 2: Copyright
Copyright Copyright © 2016 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. -
Page 3: Benq Ecofacts
BenQ ecoFACTS BenQ has been dedicated to the design and development of greener product as part of its aspiration to realize the ideal of the “Bringing Enjoyment ‘N Quality to Life” corporate vision with the ultimate goal to achieve a low-carbon society. Besides meeting international regulatory requirement and... -
Page 4: Table Of Contents
Basic OSD menu operation ......................12 Power LED indicator ........................12 Menu introduction ....................13 Getting the most from your BenQ monitor ..........15 How to install the monitor on a new computer ..............16 How to upgrade the monitor on an existing computer............17 How to install on Windows 10 system .................. -
Page 5: Box Contents
Box contents When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement. LCD Monitor Stand CD-ROM Monitor Base Quick Start Guide Power Cable D-Sub Cable HDMI Cable •... -
Page 6: Installation
Installation • If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so. • The following illustrations are for your reference only. Available input and output jacks may vary depending on the purchased model. -
Page 7: Cleaning
Cleaning Please disconnect the power cord before cleaning the product. Clean the cabinet regularly with a cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Connecting The Monitor
Connecting the monitor GW2406Z Description AC power input jack DP socket HDMI socket D-Sub socket Audio Line Out 1. To protect equipment, always turn off the PC and LCD monitor before connecting. 2. Connect the plug of the DP cable to the monitor DP socket. Connect the other end of the cable to the DP port of the computer. -
Page 9: Removing The Monitor Stand
Removing the monitor stand 1. Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable. 2. Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like a towel on the desk for padding, before laying the screen face down on a flat clean padded surface. -
Page 10: Using The Monitor Wall Mounting Kit
Use four M4 x 10 mm screws to fix a VESA standard wall mount bracket to the monitor. Make sure that all screws are tightened and secured properly. Consult a professional technician or BenQ service for wall mount installation and safety precautions. -
Page 11: The Control Panel
The control panel GW2406Z Description Source / Auto / Exit Blue Light Reducer / - Volume / + Menu / Enter Power Source / Auto / Exit • Press and hold the AUTO key for 3 serconds to adjusts vertical position, phase, horizontal position and pixel clock automatically. -
Page 12: Basic Osd Menu Operation
Basic OSD menu operation • Press the MENU button to activate the OSD menu. • Press - or + to navigate through the menu options. Once the desired option is highlighted, press the MENU key to confirm the selection. Press - or + to change the settings of the selected function. Press MENU key to save the new setting and exit the current function. -
Page 13: Menu Introduction
Menu introduction Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. And keys that are not available will be disabled and the corresponding OSD icons will disappear.For models without certain functions, their settings and related items will not appear on the menu. - Page 14 Main menu Function Range OSD Setup H. Position Adjusts the horizontal position of the OSD menu. 0-100 V. Position Adjusts the vertical position of the OSD menu. 0-100 Timeout Adjusts the display time of the OSD menu. 5-100 Language • English Sets the OSD menu language.
-
Page 15: Getting The Most From Your Benq Monitor
Getting the most from your BenQ monitor To gain the most benefit from your new BenQ LCD monitor, you should install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM. The circumstances under which you connect and install your BenQ LCD Monitor will determine which process you need to follow to successfully install the BenQ LCD Monitor driver software. -
Page 16: How To Install The Monitor On A New Computer
This instruction is only suitable for a computer which has never been used before, and for which the BenQ LCD Monitor is the first ever monitor to be connected to it. -
Page 17: How To Upgrade The Monitor On An Existing Computer
The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems. -
Page 18: How To Install On Windows 10 System
4. Click Generic PnP Monitor, and then the Properties button. 5. Click the Driver tab and the Update Driver button. 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the Update Driver Software window, select the option Browse my computer for driver software. -
Page 19: How To Install On Windows 8 (8.1) System
4. Click Generic PnP Monitor, and then the Properties button. 5. Click the Driver tab and the Update Driver button. 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the Update Driver Software window, select the option Browse my computer for driver software. -
Page 20: How To Install On Windows 7 System
4. Click Generic PnP Monitor, and then the Properties button. 5. Click the Driver tab and the Update Driver button. 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the Update Driver Software window, select the option Browse my computer for driver software. -
Page 21: Troubleshooting
Troubleshooting The power LED indicator is not on. • Make the power cord is properly connected to a grounded power outlet and the monitor. • Make sure you have pressed the key. The image is blurred. • Read the instructions in "Preset display modes"... -
Page 22: Need More Help
• Increase the volume (volume may be muted or too low). Need more help? If your problems remain after checking this manual, please contact your place of purchase or visit the local website from www.BenQ.com for more support and local customer service. -
Page 23: Specification
Specification GW2406Z Model name GW2406Z Driving system TFT Color LCD Viewable Image Size 60.47cm diagonal Pixel pitch 0.2745 (H) mm x 0.2745 (V) mm Panel Video R, G, B Analog lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock... -
Page 24: Preset Display Modes
Preset display modes Mode Resolution H.Frequency V.Frequency 640×480@60Hz 31.469 59.940 640×480@75Hz 37.500 75.00 800×600@60Hz 37.879 60.317 SVGA 800×600@75Hz 46.875 75.000 1024×768@60Hz 48.363 60.004 1024×768@75Hz 60.023 75.029 WXGA+ 1280×1024@75Hz 79.976 75.025 Apple,Mac II 1152x870@75Hz 68.681 75.062 MAC MODE SVGA 832×624@75Hz 49.725 74.551 MAC MODE XGA 1024×768@75Hz...
