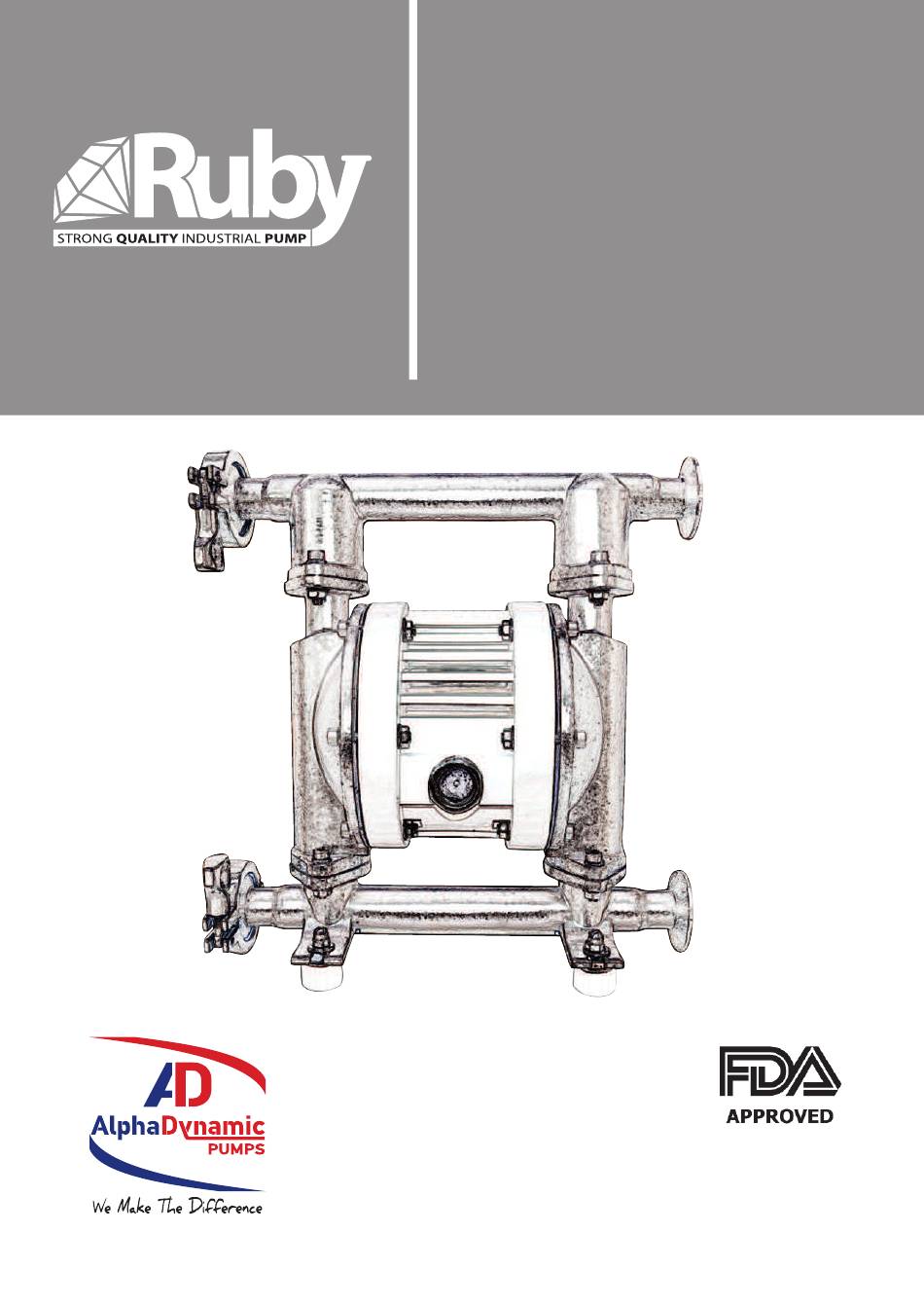

- Page 1 Air Operated Diaphragm Pumps Installation, Operation and Maintenance RUBY 015 FDA ΙΙ 2G Εx h IIB T4 Gb II 2D Εx h IIIB Τ135˚C Db Baseefa15ATEX13DR/RN3 Industrial Park of Kifisia - HELLAS www.alphadynamic.eu...
-
Page 2: Table Of Contents
INDEX Introduction ......................................5 1.0.1 Pump Identification...................................5 1.0.2 Markings and general information ..............................6 1.0.3 Composition Codes..................................6 Warranty......................................7 Transport , unipacking , storage...............................7 Principle of function..................................7 Pump operation....................................8 Improper use ....................................8 Safety Rules.....................................8 Equipotential bonding / earthing..............................10 Installation ......................................11 Connection of air supply line ................................12 Connection of cuction and pressure lines ............................12 Pump in suction operation ................................12 Pump in submerged operation ...............................12... -
Page 6: Markings And General Information
Pump Body Center Sec on Diaphragms Ball Seats Valve Ball O-ring Other Op ons Ruby 015 S:AISI 316 ELECTROPOLISHED W : PP FDA E : EPDM Conduc ve V : PVDF T : PTFE T : PTFE C: Triclamp Ruby 025... -
Page 7: Warranty
1.1 Warranty The correct function of each Ruby pump is tested in the factory. However, should any defect appear, please contact the Manufacturer’s After-Sales Service, your dealer or the nearest Customer Service Centre where you will receive assistance as quickly as possible. In any case, please provide: Α- Your complete address B- Pump identification C- Explosion risk protection class... -
Page 8: Pump Operation
1.4 Pump operation Ruby Air Operated Diaphragm Pumps are oscillating positive displacement pumps with two pump chambers arranged opposite each other. Both of these are separated by a diaphragm each into an air and a fluid section. Both diaphragms are linked by a piston rod, so that with every stroke product is displaced to the outside from the one pump chamber and product is drawn into the opposite pump chamber. - Page 9 For installation and use in a potentially explosive environment, comply with these general precautions - ascertain that the pump is full and if possible, that the level is above it by 0.5 m; - ascertain that the fluid treated does not contain or cannot contain large solids or solids of a dangerous shape - ensure that the intake or delivery ports are not obstructed nor limited to avoid cavitation or pneumatic motor strain.
-
Page 10: Equipotential Bonding / Earthing
WARNING: The components of the pneumatic exchanger, including the shaft are made from materials that are not specifically resistant to chemical products, if the diaphragm should break, replace these elements completely if they have come into contact with the product WARNING:The air-driven motor of the Ruby pumps is self-lubricating and will not require any greasing. -
Page 11: Installation
3.0 Installation To be observed before installation 1. The installation must only be carried out by persons who have the necessary skills for this work 2. Before installation align the pump correctly and fasten it without any tension. Pipelines must be assembled in a way that the basic weight of the lines is not reasting on the pump 3. -
Page 12: Connection Of Air Supply Line
3.1 Connection of air supply line We recommend to supply the air through a hose to the pump. Using moisturized compressed air requires the installation of a service unit with water separator. This control equipment can additionally be used to regulate the flow capacity of the pump. The diaphragm must not be subjected to shockloads. -
Page 13: Noise Emissions (2003/10/Ec)
3. Connect the product intake and delivery hoses to their respective fittings whilst taking into consideration the signs on the pump: ΊΝ" = INTAKE (down) and OUT" = DELIVERY (up) or according to that indicated by the arrows. 4. Secure the hoses using the relevant clamps. WARNING: Provide appropriate support for the piping. -
Page 14: Pump Disassembly
4.0 Pump Disassembly Step 1 Step 2 Step 3 Remove the discharge manifold by untying Remove the balls and the seats. Reverse Untie one of the two housings, by untying the the screws in X formulation the pump and remove the suction manifold screws gradually and cyclically. -
Page 15: Air Control Valve Assembly
4.2 Air control valve assembly Step 1 Step 2 Step 3 We put the valve without the lateral caps at we push it until it comes at the same surface We put the sealing o-ring of the lateral cap the nest after we put PG21 MOLYCOTE with the central block. -
Page 16: Assembling Diaphragm Installation
4.4 Assembling Diaphragm installation Step 1 Step 2 Step 4 Step 3 Step 1 We import the shaft at the bearing from that side where we put PG We put the air valve drive from the one side. MOLYCOTE 21.We push the shaft so that it passes on the other side. Step 2 After we do that, we clean the PG MOLYCOTE 21 that has emained. -
Page 17: Troubleshooting
5.0 Troubleshooting The following instructions are intended exclusively for authorised skIilled maintenance engineers. In event of abnormal behaviour and in order to fix faults, please refer to the following troubleshooting instructions. WARNING: For more serious problems, we strongly recocomend that you contact the ALPHADYNAMIC PUMPS Co: our engineers will provide you assistance as quickly as possible. -
Page 18: Technical Data
6.0 Technical data 6.1 Dimensional drawings... -
Page 19: Performances
6.2 Performance Ruby 015 FDA pump PTFE A Full capacity Diaphragm Fitted Flow. Rate ............68 L/min Air inlet ..............1/2" Suction – Discharge port ....DN 25 TRICLAMP Suction lift (dry)............3m Max. Solid size ( diameter) ........3mm Air Pressure Supply Air Consumption Nl/min... - Page 20 Ruby 015 FDA pump EPDM Diaphragm Fitted Flow. Rate ............72 L/min Air inlet ..............1/2" Suction – Discharge port ....DN 25 TRICLAMP Suction lift (dry)............3m Max. Solid size ( diameter) ........3mm " * The curves and performance values refer to pumps with submerged suction and a free delivery outlet with water...
- Page 21 Ruby 015 FDA pump PTFE Diaphragm Fitted Flow. Rate ............62 L/min Air inlet ..............1/2" Suction – Discharge port ....DN 25 TRICLAMP Suction lift (dry)............3m Max. Solid size ( diameter) ........3mm " * The curves and performance values refer to pumps with submerged suction and a free delivery outlet with water...
-
Page 22: Exploded View And Spare Parts List
6.3 Exploded View and Spare Parts List 6.3.1 Exploded view 015 FDA Stainless steel 316 pump 015 Stainless steel 316 spare part list pump 5 32 6 7 8 10 9 11 11 9 10 8 6 32 DESCRIPTION DECRIPTION DECRIPTION CENTRAL BLOCK AIR EXHAUST SCREW... -
Page 23: Spare Part List
6.3.2 Spare part list Ruby 015 FDA Spares POSITION Part No DESCRIPTION No req. 15.01 R015-0253 CENTRAL BLOCK 015 PP+CF BLACK 15.04 R015-0255 CENTRAL BLOCK 015 PP WHITE COLOUR 15.02 R015-0265 SUCTION MANIFOLD AISI 316 015 15.02 R015-0266 SUCTION MANIFOLD TRICLAMP AISI 316 015 15.03... - Page 24 ALPHADYNAMIC PUMPS Industrial Park of Kifisia - HELLAS www.alphadynamic.eu Air Operated Diaphragm Pumps...
