Summary of Contents for BEP 720-MDO-EP

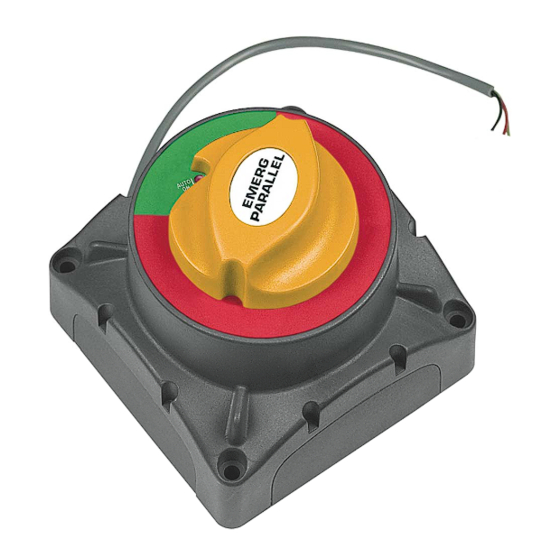

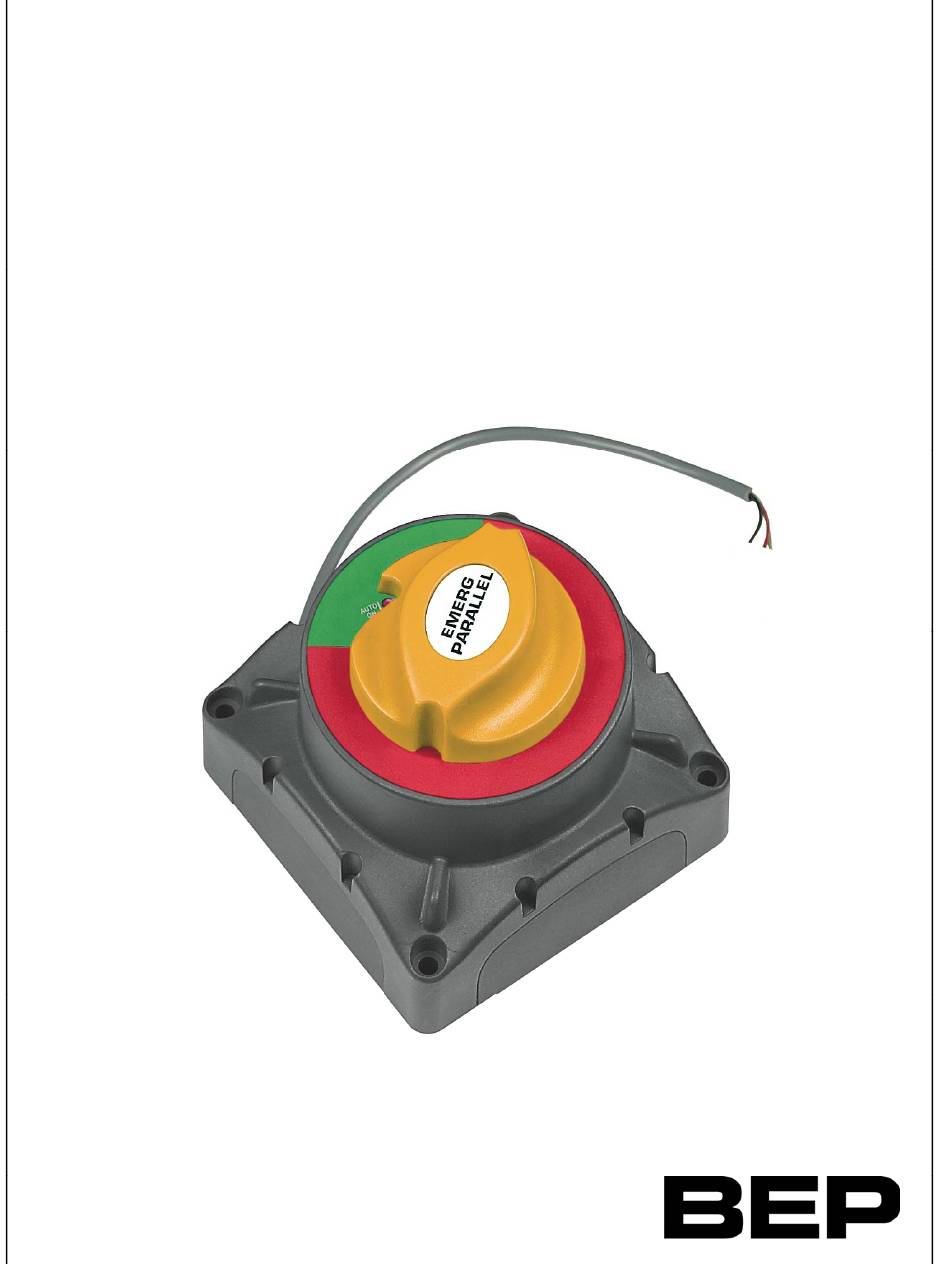

- Page 1 Emergency Parallel Switch 720-MDO-EP Operation and Installation Manual...
- Page 2 OFF: EP is disengaged The 720-MDO-EP will remain in parallel mode for 10 minutes. At any Rapid Flash: On 0.1 Sec & Off 0.1 Sec; The voltage is out side...
- Page 3 Wiring Specifications - LED Wire Green - Control Wire Continuous rating: 500 Amps DC Black - Supply Negative Intermittent rating: 700 Amps DC Orange - Supply Positive #1 Cranking rating: 2500 Amps DC White - Supply Positive #2 Maximum Voltage: 32 Volts DC After installation please silicone the end Operation: Manual On/Off of the outer sheath of the grey cable to...
- Page 4 Dimensions Cut Out Measurements NOT TO SCALE Learn more about boat electrical we have.
