BEP MARINCO 771-S-EZ Quick Start Manual

EZ Mount Selector Battery Switch
771-S-EZ 400A EZ Mount Selector (Retail Packed)
771-S-EZ-B (Bulk Packed)
As easy to mount as 1, 2, 3, these revolutionary battery switches
allow you to wire from the front.
1. Fit base
2. Add wiring
3. Clip on actuator
With their shared interconnection height, EZ-Mount Selector
battery switches "cluster" directly with the Pro Installer Busbar
Range, resulting in the fastest, most compact installations. All
ratings, footprints and construction of the EZ-Mount Selector
switches match the high quality of our standard switches.
Features & Benefits:
• Easiest surface mounting, saves installation time and cost
• Front access studs match Pro Installer Busbar range intercon-
nection height for direct linking and most compact mounting
footprint
• Actuator assembly can be fi tted at any 90 degree angle for
optimal cabling fl exibility
• Removable knob for isolation/safety
• Includes back cover and three side panels for security and
cable protection
• Designed to withstand harsh marine environments
• High temperature reinforced plastics

Installation Instructions: IMPORTANT!

Read before installing
• It is recommended that electrical terminations and connections
are carried out by a marine electrical technician.
• These battery switches are for isolation purposes and are not
designed for switching under load.
• Ensure there are no circuits with high inductive loads directly
connected to the switch in order to prevent any sudden in-rush
of current which may cause damage to the switch.
• Although specially selected chemical resistant materials have
been used, we recommend that for maximum product life only
plastic safe corrosion inhibiting sprays are used.
• Ensure all cables are sized correctly for the loads they carry.
Please refer to www.bepmarine.com to calculate correct cable
sizes.
• Ensure all electrical connections are correctly tightened to
prevent any damage to the battery switch.
• WARNING: Do not switch battery switch to off position while
the engine is running.
www.bepmarine.com
1

Specifications:

• Continuous rating: 400A*
• Intermittent rating (5 minutes): 600A*
• Cranking rating (10 seconds): 1500A*
• Connection stud size: M10 (3/8")
• 12-48V DC
• IP66 – protection from powerful water jets
• Ignition protected
• Independently tested to meet UL1107 standards
• CE
* Electrical ratings achieved using cable size 120mm²
Plastic safe
Petroleum
based
solvents
| www.mastervolt.com
5 YEAR WARRANTY

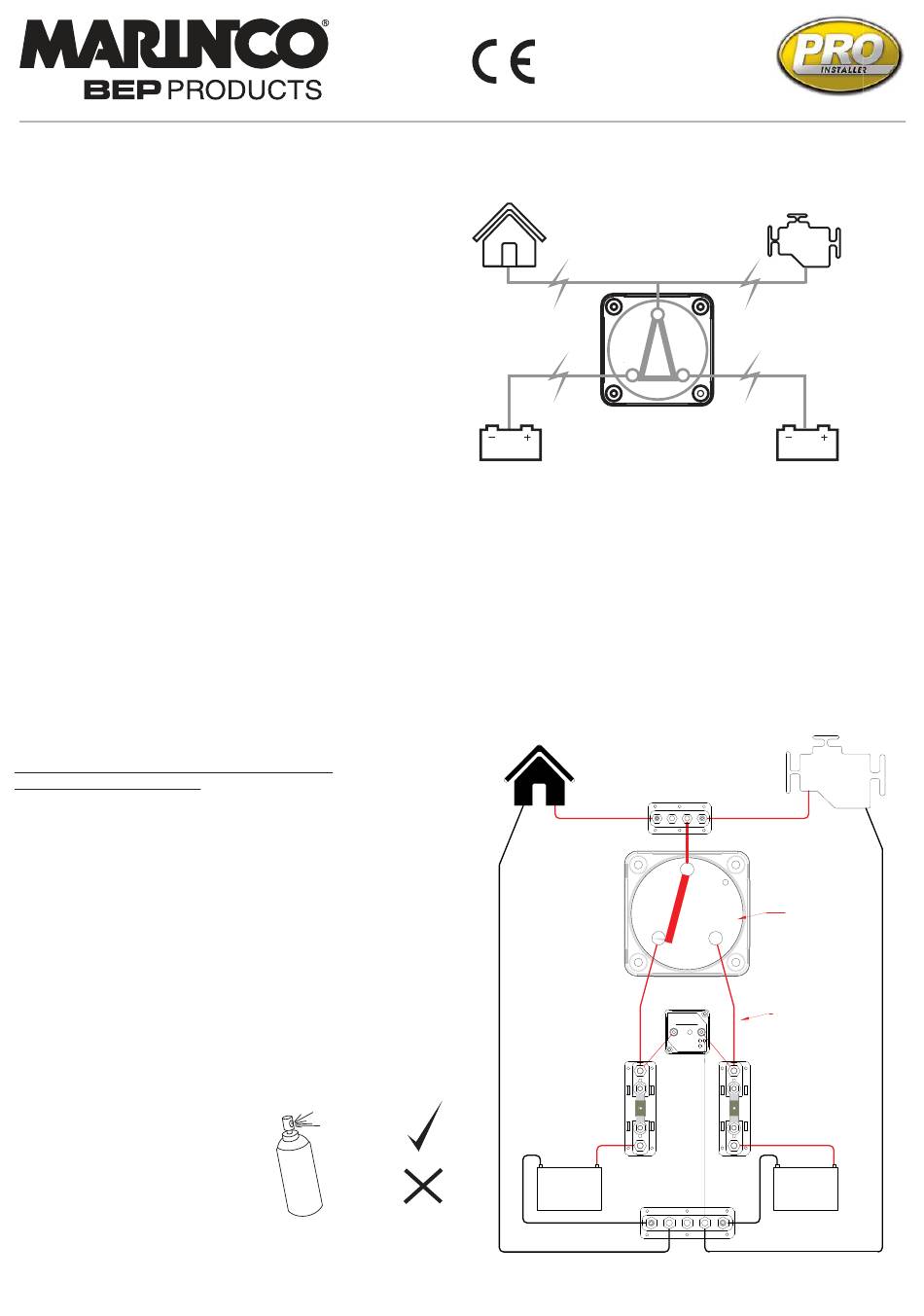

Example System: NOTE -This
diagram is a guide only showing
Selector connections and is not
intended as a full electrical systems
wiring diagram.
Loads
1
DVSR
Battery
1
Fuse
-
+
Negative
Battery
Bus
1
| www.marinco.com
2
Loads
Engine
Note: Battery 1 and 2
2
designation when viewing
EZ mount base with
Actuator removed
DVSR (710-140A)
provides automatic
battery charging
of second bank
Battery
2 Fuse
-
+
Battery
2
