Allegro Linear 2.1 AC

INSTALLATION GUIDE

V1.1

Cover:

Allegro Linear 2.1 AC RGB

Allegro Linear 2.1 AC RGBW

Allegro Linear 2.1 AC DW

Allegro Linear 2.1 AC SW (DMX)

Table of Contents

Need help?

Do you have a question about the Allegro Linear 2.1 AC RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for Traxon Allegro Linear 2.1 AC RGB

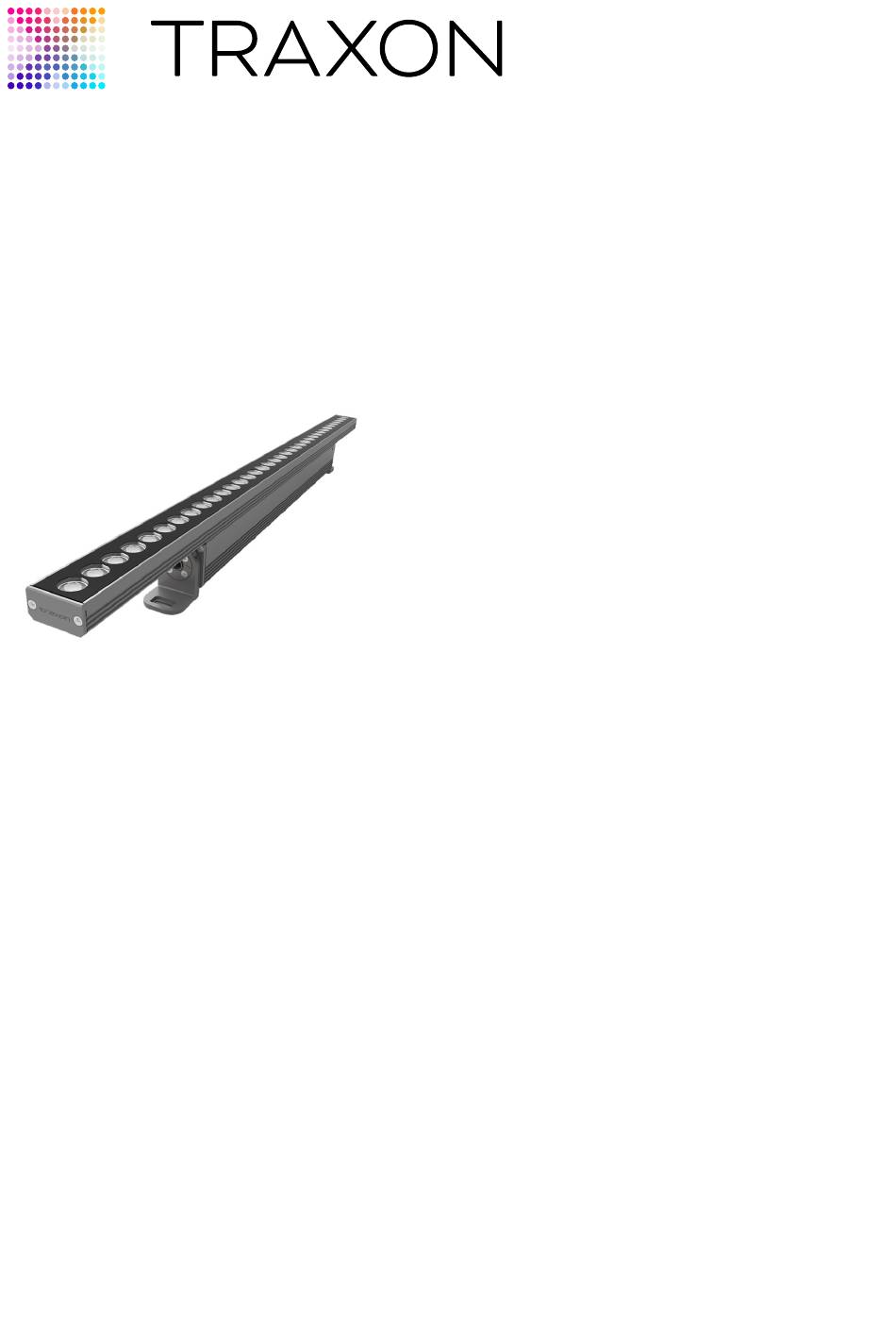

Page 1 Allegro Linear 2.1 AC INSTALLATION GUIDE V1.1 Cover: Allegro Linear 2.1 AC RGB Allegro Linear 2.1 AC RGBW Allegro Linear 2.1 AC DW Allegro Linear 2.1 AC SW (DMX)
Page 2: Table Of Contents
CONTENT SAFETY AND OPERATION INTRODUCTION INSTALLATION SYSTEM CONFIGURATION CARE AND MAINTENANCE TECHNICAL SPECIFICATION TROUBLESHOOTING WARRANTY STATEMENT www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 2 of 19...
Page 3: Safety And Operation
12. Please study this Installation Guide thoroughly and check the latest Technical Specification Sheets available from the Traxon website www.traxontechnologies.com before setup. 13. Any non-compliance of the Installation Guide will void the Traxon warranty. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED.
Page 4: Introduction
Integrated mounting feet with ±90° adjustment on beam aiming • DMX512 • Remote Device Management (RDM) • CE, cETLus • DynaMood : BinOne · BoostOne · AddressOne ® www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 4 of 19...
Page 5 Dimensions FIG.1: Allegro Linear 2.1 AC 300 50mm/1.97" 350mm/13.8" 320mm/12.6" 350mm/13.8" 300mm/11.8" FIG.2: Allegro Linear 2.1 AC 600 50mm/1.97" 350mm/13.8" 615mm/24.2" 350mm/13.8" 610mm/24" 590mm/23.2" www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 5 of 19...
Page 6 FIG.3: Allegro Linear 2.1 AC 900 50mm/1.97" 10mm/0.4" 915mm/36" 10mm/0.4" 649mm/25.6" 625mm/24.6" FIG.4: Allegro Linear 2.1 AC 1200 50mm/1.97" 10mm/0.4" 1215mm/47.8" 10mm/0.4" 1039mm/40.9" 1015mm/40" www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 6 of 19...
Page 8: Installation
• Weather conditions and ambient temperature of installation site. • Installation distances and appropriate cable lengths. Please consult your local Traxon™ office or authorized agent for necessary aid. • The number of Allegro Linear 2.1 AC and appropriate power sources.
Page 9 Perform functional check on all Allegro Linear 2.1 AC. Report any functional defect found to your nearest Traxon Technologies office. DO NOT attempt to install an Allegro Linear 2.1 AC with functional defects on-site.
Page 10 • IP failure induced by stressed/damaged cables during or after installation will not be under warranty by Traxon Technologies. • ALWAYS keep the cables protected from sharp objects and ensure no damage is generated on the cable.
Page 11 Locking fixture position Then tighten lock screws with provided Hex Key in clockwise direction. Unplug the Dust Caps/Waterproof End Caps and keep them in a container for reuse. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 11 of 19...
Page 12 FIG.11: Interconnecting fixtures Please use end cap for final fixture in connection chain. FIG.12: Install the end cap www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 12 of 19...
Page 15: Care And Maintenance
CARE AND MAINTENANCE • Traxon™ products are of superior design and quality and should be treated with care. The recommendations below will help fulfill any warranty obligations and gain good use and longevity from the products. • Do not attempt or use the product(s) until you read and understand the installation instructions.
Page 16: Technical Specification
1.8kg / 3.97lb 3.06kg/4.03lb 3.6kg/7.93lb 5.02kg/11.07lb Operating Temperature −30°C to +50°C / −22°F to +122°F (−20°C / −4°F starting) Storage Temperature −40°C to +70°C / −40°F to +158°F www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 07/23 V1.1 16 of 19...
Page 17 Inherent variability in the manufacturing process always results in different binning distributions according to different production lots. Traxon uses automatically binned LEDs on its products, thereby minimizing output variations within the model range.
Page 18: Troubleshooting
Traxon Technologies office for assistance. WARRANTY STATEMENT Traxon Technologies warrants its Products against material or workmanship defects from date of purchase, provided that the purchased items are used under the conditions stated in this user manual.
