Far Tools ML 700 Original Translation

Metal lathe
Hide thumbs Also See for ML 700:

Advertisement

Quick Links

Download this manual
FR
Tour à métaux ( Version originale )
EN
Metal lathe( Original version translation )
ML 700
Professional Machine
www.fartools.com
114252-Manual-D-EN.indd 1
21/03/12 10:48:16

Advertisement

loading

Related Manuals for Far Tools ML 700

Summary of Contents for Far Tools ML 700

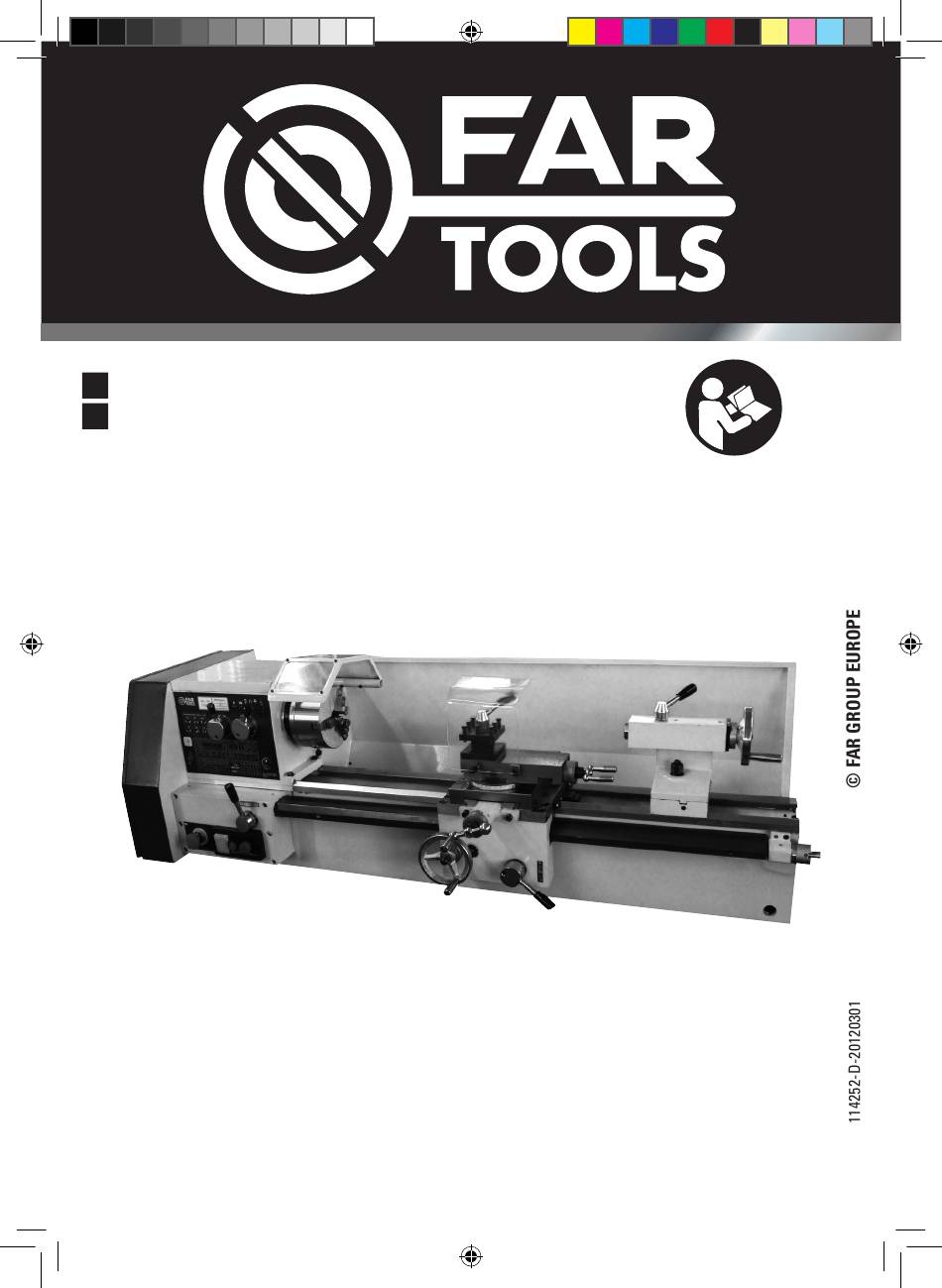

  • Page 1 Tour à métaux ( Version originale ) Metal lathe( Original version translation ) ML 700 Professional Machine www.fartools.com 114252-Manual-D-EN.indd 1 21/03/12 10:48:16...

  • Page 2: Transportation And Storage

    LUBRIFICATION 18 14 03 Huile / Oil : SAE 30-50 Après 20 jours d’utilisation / After 20 days of using. Ajout d’huile tous les six mois ( après nettoyage ) / Re-adding every 6 months ( must be cleaned first ) L’adjonction d’huile ne doit pas dépasser les 2/3 de la jauge / The oil adding level souldn’t be higher than 2/3 of the oil gauge.

  • Page 3: Maintenance

    BALL VALVE OILER with white spirit. Beware of the vapours that can be toxic and be sure to properly venti- late the room. 13/ BALL VALVE OILER 14/ Using a stiff tip oil can, regularly oil those points fitted with a ball valve oiler LUBRICATING UNPROTECTED AREAS Using an oiled brush, coat areas like the drive screw, the sliders, the cast iron bench...
  • Page 4 © FAR GROUP EUROPE 114252-Manual-D-EN.indd 4 21/03/12 10:48:29...
  • Page 5 MOVING AND ADJUSTING OF THE TRANSVERSE CARRIAGE © FAR GROUP EUROPE 114252-Manual-D-EN.indd 5 21/03/12 10:48:30...
  • Page 6 MOVING AND ADJUSTING THE TAILSTOCK CENTRE © FAR GROUP EUROPE 114252-Manual-D-EN.indd 6 21/03/12 10:48:32...
  • Page 7 SPEED CHOOSING Cutting tool Material Steel Carbide 30-40 daN/mm 30-40 m.min 140-300 m.min Soft 40-50 daN/mm 28-34 m.min 130-280 m.min 50-60 daN/mm 23-30 m.min 100-240 m.min Half hard 60-70 daN/mm 20-25 m.min 85-200 m.min 70-80 daN/mm 17-22 m.min 70-160 m.min Hard 80 daN/mm ->...
  • Page 8 © FAR GROUP EUROPE 114252-Manual-D-EN.indd 8 21/03/12 10:48:36...

  • Page 9: Sharpening Tools

    SHARPENING TOOLS Note: The grinding head is the ideal tool for this operation. The grinding head may be fitted with a green grinder (green silicon carbide) specially designed to sharpen carbide tools Metal carbides (Cobalt, tungsten, titanium, boron combinations) These carbides that are obtained with a special heat treatment called sintering, are used in the form of disks or “inserts”.

  • Page 10: Straight Turning

    VARIOUS GRINDING/MILLING OPERATIONS FACING a/ Comprises removing metal from the part surface, b/ Clamp the part into the chuck, always use the same jaw tightening square. Never let the part protrude by more than twice its diameter (spinning in the air), c/ Position the tool tip so that it is perfectly aligned with the part axis (to do this, use steel shims that are placed under the tool body) 1000 x V...
  • Page 11 Example: To advance by 0.2 mm per revolution: Gear A=24, B=120, D=60, lever No. 3 on position II, d/ Set the tool at a tangent to the part diameter. Reverse the tool to the right to escape from the part. Set a penetration depth of 0.5 mm. 10 divisions on the Vernier callipers = 1 mm in diameter.
  • Page 12 Rotation speeds & advances Helicoidal drills angles of the edges Metal to work Steel Steel Steel Cast iron Normal cut Normal cut Excessive cut Insufficient cut BORING a/ Comprising removing matter from a hole to enlarge it so as to achieve a good surface condition, b/ Use a boring tool with a 45°...
  • Page 13 CUTTING a/ Comprises cutting a part that has already been drilled and bored to obtain a spacer or washer, b/ Use a cutting tool. Bring the tool tip to the same height as the axis (again using shims) or a little below the part centre, c/ Start the machine after first setting the rpm, 1000 x V π...
  • Page 14 The tool is aligned with the part using a centre gage. This centre gage is useful when checking tool sharpening. 1/ Once the tool is correctly sharpened and aligned, set the rpm, a setting that will be far slower than the theoretical rpm rate, (approx. 50% less). Example: For an M 20 x 2.5, semi-hard steel=30 1000 x 30 = 477 tr/ min π...
  • Page 15 External thread on the right Inner thread: - When cutting an inner thread, the speed remains the same for an equivalent diameter, - The gear settings are the same. Nevertheless, you need to calculate the bore diameter and penetration depth. To do this, use the following formulas: BORE DIAMETER FOR A THREAD OF M 20 X 2,5 = D - ( 1,08 x P ) =...
  • Page 16 WARNING: Never release lever 2 until the thread cutting is finished To reset the tool in the start position, reverse the chuck direction and repeat a number of 0.25 mm passes to achieve the final 1.3925 mm dimension, Try the M 20 x 2.5 bolt before disengaging the centre gage lever 2 Metric threading...
  • Page 17 fitting between tailstocks FITTING WITH A STEADY (OPTION 114300) A steady is used when machining very long axes and when the tailstock centre can be used. The steady is mounted on the longitudinal carriage and the brass pads or ball bearings are positioned on the opposite side to the tool.
