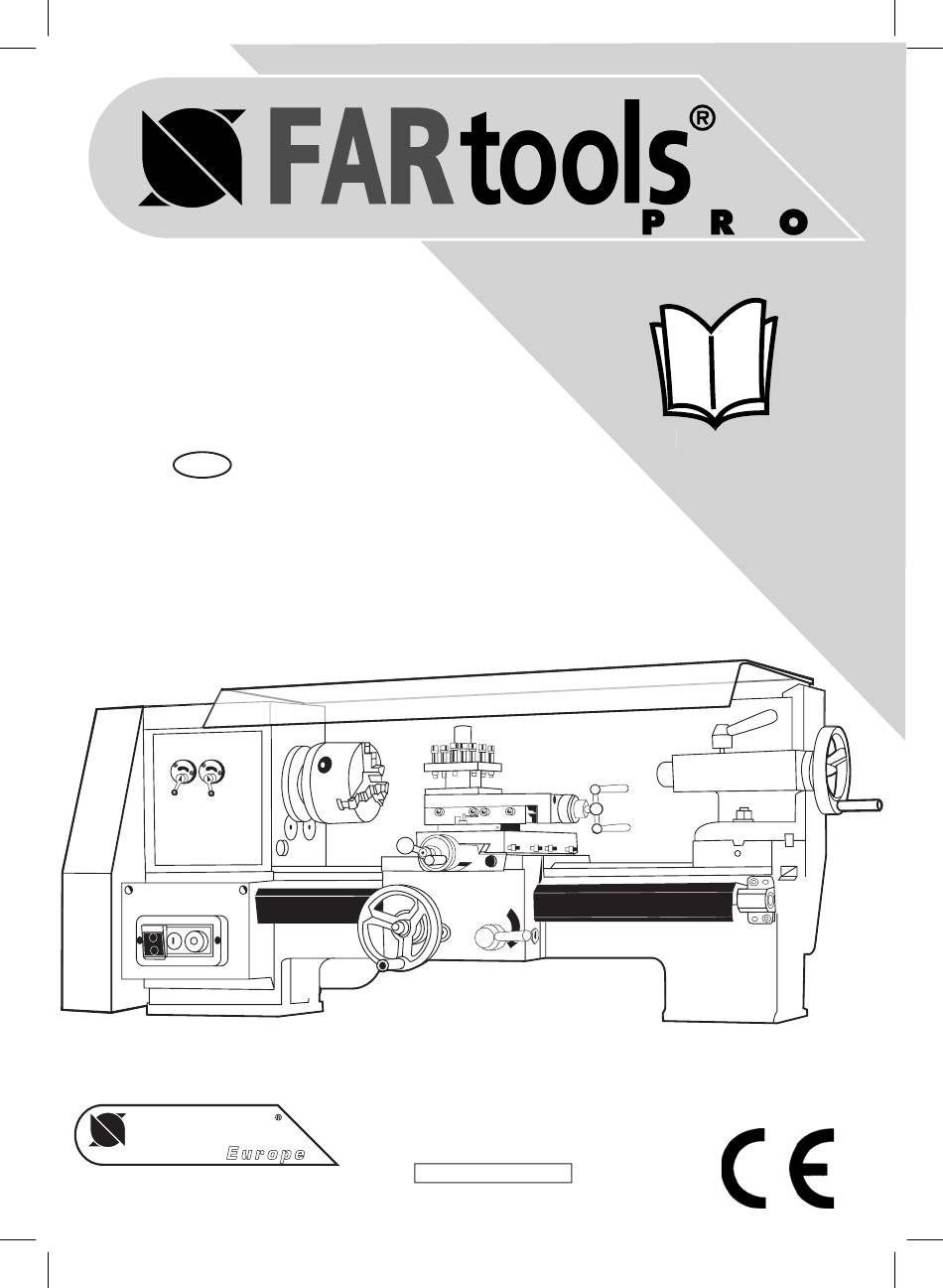

- Page 1 ML 550 ML 550 ML 550 METAL LATHE GROUP E u r o p e 114200-A-22/08/2003 206, rue Marcel Cachin 37700 Saint-Pierre des Corps FRANCE...
- Page 3 ML 550...
- Page 4 ML 550 Automatic slide speed table Threading Slide-lathing Chuck speed Motor pulley Receiving pulley Slicing gears...
- Page 5 Tension et fréquence assignée: Nominal frequency and power: Spannung und Frequenz: Tensión y frecuencia fijada: Tensione e frequenza assegnata: Tensão e frequência fixa: Aangewezen spanning en frequentie: : Napięcie i częstotliwość przydzielona: Jännite ja määrätty taajuus: Angiven spänning och frekvens: Консумирано...
- Page 6 Porter une protection auditive: Wear hearing protective equipment: Gehörschutz tragen: Llevar puesta una protección auditiva: Portare una protezione uditiva: Utilizar uma protecção auditiva: Draag gehoorbeschermers: : Zakładać słuchawki ochronne: Käytä kuulosuojaimia: Bär hörselskydd: Да се използва слухови защитни средства: Porter des lunettes de sécurité...
- Page 7 Niveau de pression acoustique : Acoustic pressure level : Schalldruckpegel : Nivel de presión acústica : Livello di pressione acustica : Nível de pressão acústica : Niveau akoestische druk : : Poziom mocy akustycznej : Käytä kuulosuojaimia: Ljudtrycksnivå...
- Page 8 Conforme aux normes CE : Conforms to EC standards : CE-Konformität : Cumple con las directivas CE : Conforme alle norme CE : Conforme às normas CE : Voldoet aan de EG-normen : : Zgodność z normami CE : EU-standardien mukainen : EU-standardien mukainen : Съответствие...
- Page 9 AUTO AUTO...
- Page 10 AUTO AUTO...
- Page 11 Features and applications This Machine Tool is a lathe, with compact in struture, flexible in operation, safety in use and easy in instal- lation. This Machine Tool is especially suitable for applications of family industry, small workshop, schools, laboratory, and trial-producing workshops. It can also be used in operation sequence on the production line.
- Page 12 Installation and Test run of the machine tool 4.1 First examine whether you have received all the accessories of the machine tool according to the packing list after opening the case. 4.1 The machine tool should be installed and fixed with nuts and bolts on the solid table made of wood or iron.
- Page 13 5.1.1 Main shaft box: Six kinds of the rotation speed can be obtained by turning handle “1”and “2” accor- ding to the speed change table. Be sure to stop the machine tool and then change the handle. 5.1.2 Feed box: Knob “12” is used for controlling the start, stop, clock-wise and reverse movement of the main shaft.
- Page 14 7. Electric Equipment of the machine tool 7.1 Principle the electric equipment 7.2 The electric equipment of the machine tool includes Model JY7134 Single-phase induction motor with electric-capacity starting and magnetic switch. 7.3 The power of the machine tool motor is 370W, the voltage is 220V, 50HZ, and we can provide special specification according to the voltage in customer s request.
- Page 15 7.4.1 It is forbidden to change the direction after starting the motor. Be sure to change the direction after stopping the machine. 7.4.2 After operation, don t cut off the electricity supply directly and should stop the lathe first. ’ 7.5 Lighting conditions: This machine tool isn’t disposed the lighting, customers’...
- Page 16 9. Machine tool lubrication S e r . N o . i n Part Lubricating point method kind Period Spindle box Gear, bearing Spray Machine oil 10days after the start-up; 20days after the fist lube; from then on, every 60days. Longitudinal gui- Saddle Oil gun...
- Page 17 10. Bearing Arramgement of the machine tool List of Bearings Dwg. No Model Name Specification Install. position Deep-slot ball bearing 20×42×12 Mshaft Ditto Ditto Ditto Ditto 17×35×10 Ditto Ditto Ditto Ditto 46107(LevelD) Angular contact ball bearing 35×62×14 Ditto 46108(LevelD) Ditto 40×68×15 Ditto Deep-slot ball bearing...
- Page 18 VERKLARING VAN OVEREENSTEMMING DECLARACION DE CONFORMIDAD DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITA KONFORMITÄSERKLÄRUNG DECLARATION CONFORMITY DECLARAÇÃO DE CONFORMIDADE DEKLARACJA ZGODNOSCI Z NORMAMI OM ÖVERENSSTÄMMELSE VAATIMUSTENMUKAISUUSVAKUUTUS Декларация за съответствие с нормите Ondergetekende, El suscrito, Le soussigné, Il sottoscritto, Der Unterzeichner, The undersigned,...
-
Page 19: Garantie
F. GARANTIE Cet outil est garanti contractuellement contre tout vice de construction et de matière, à compter de la date de vente à lʼutilisateur et sur simple présentation du ticket de caisse. La garantie consiste à remplacer les parties défaillantes. Cette garantie nʼest pas applicable en cas dʼexploitation non conforme aux normes de lʼappareil, ni en cas de dommages causés par des interventions non autorisées ou par négligence de la part de lʼacheteur.
