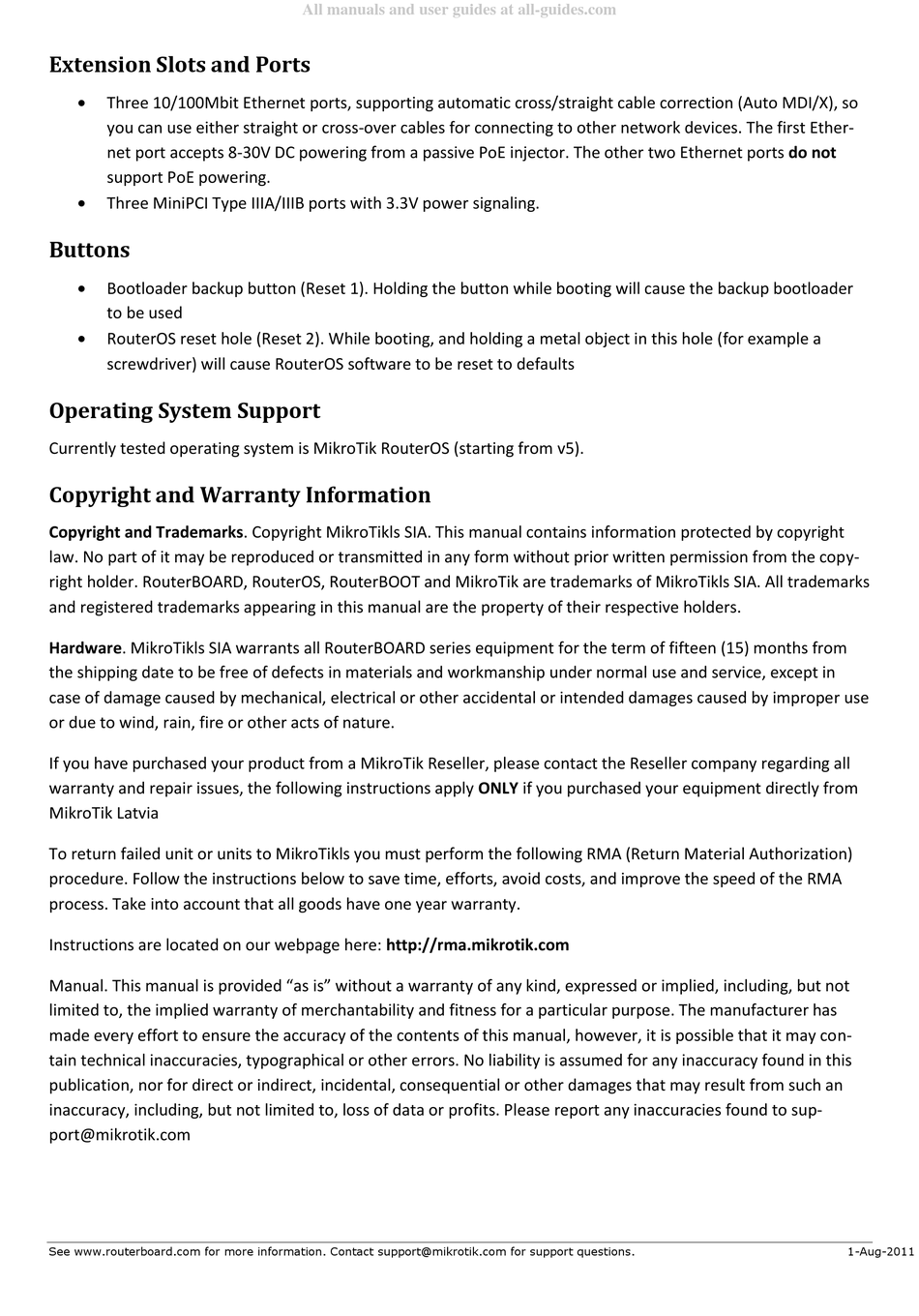

Extension Slots and Ports
Three 10/100Mbit Ethernet ports, supporting automatic cross/straight cable correction (Auto MDI/X), so
you can use either straight or cross-over cables for connecting to other network devices. The first Ether-
net port accepts 8-30V DC powering from a passive PoE injector. The other two Ethernet ports do not
support PoE powering.
Three MiniPCI Type IIIA/IIIB ports with 3.3V power signaling.
Buttons
Bootloader backup button (Reset 1). Holding the button while booting will cause the backup bootloader
to be used
RouterOS reset hole (Reset 2). While booting, and holding a metal object in this hole (for example a
screwdriver) will cause RouterOS software to be reset to defaults
Operating System Support
Currently tested operating system is MikroTik RouterOS (starting from v5).
Copyright and Warranty Information
Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright
law. No part of it may be reproduced or transmitted in any form without prior written permission from the copy-
right holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks
and registered trademarks appearing in this manual are the property of their respective holders.
Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of fifteen (15) months from
the shipping date to be free of defects in materials and workmanship under normal use and service, except in
case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use
or due to wind, rain, fire or other acts of nature.
If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all
warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from
MikroTik Latvia
To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization)
procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA
process. Take into account that all goods have one year warranty.
Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied, including, but not
limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has
made every effort to ensure the accuracy of the contents of this manual, however, it is possible that it may con-
tain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this
publication, nor for direct or indirect, incidental, consequential or other damages that may result from such an
inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to sup-
port@mikrotik.com
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions.
All manuals and user guides at all-guides.com
1-Aug-2011
